Ricoh U-C1 B051 - Page 291

26 July 2002 IMAGE PROCESSING
6-31
Detailed
Descriptions

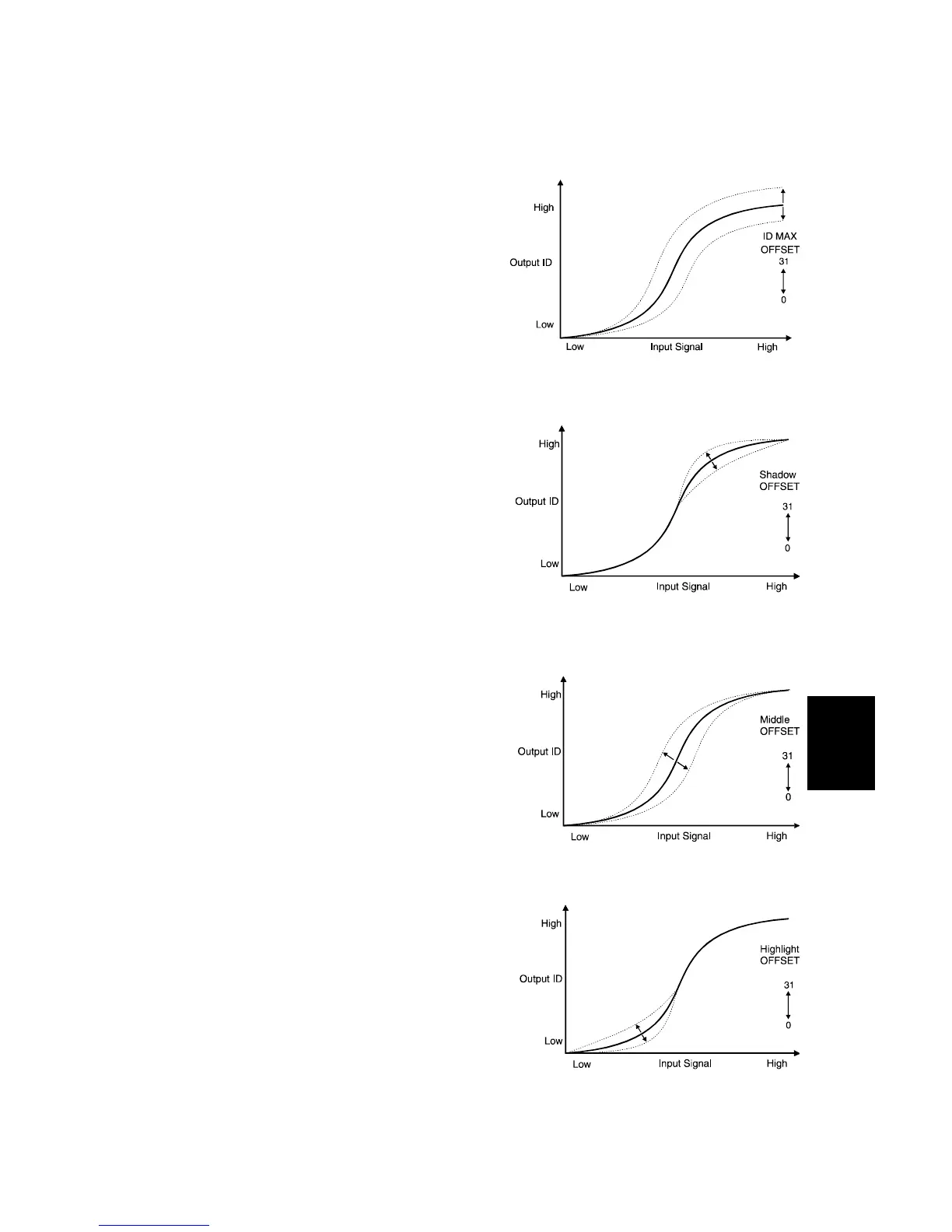

ID Max.
This mode adjusts the total image density
as shown in figure 3.
Shadow (High ID)
The High ID mode adjusts the image
density between Level 6 and Level 9 of the
color gradation scale on the C-4 test chart
(figure 4).
Middle (Middle ID)
The Middle ID mode adjusts the image
density between Level 3 and Level 7 of the
color gradation scale on the C-4 test chart
(figure 5).
Highlight (Low ID)
The Low ID mode adjusts the image density
between Level 2 and Level 5 of the color
gradation scale on the C-4 test chart (figure
6).
B051D991.WMF
B051D992.WMF
B051D993.WMF
B051D994.WMF
Fig. 3
Fig. 4
Fig. 5
Fig. 6
