AUTO REVERSE DOCUMENT FEEDER (B386) 26 July 2002
1-22

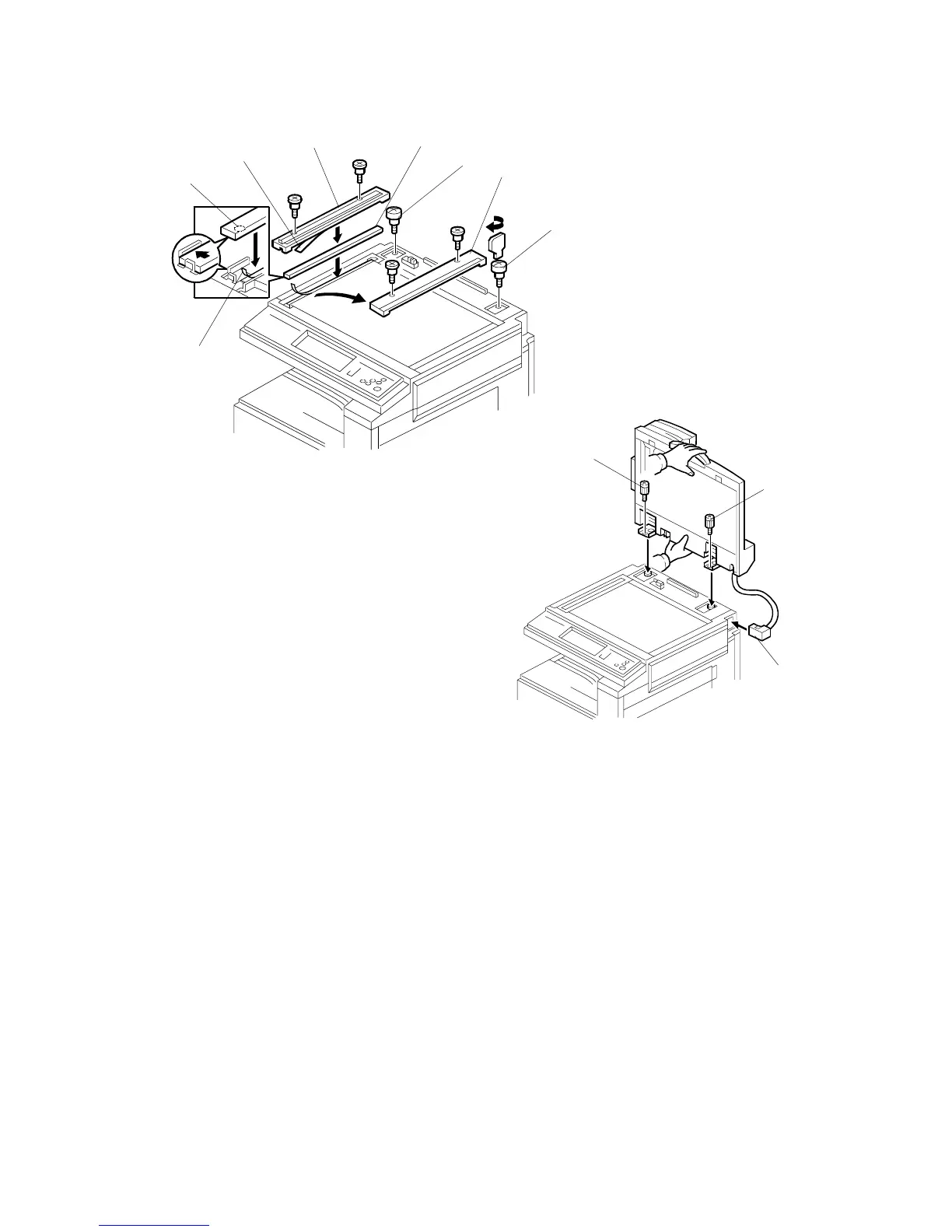

2. Remove the left scale [A] (! x 2).
3. Peel off the backing [B] of the double-sided tape attached to the glass holder.
4. Place the DF exposure glass [C] on the glass holder.
NOTE: When installing the DF exposure glass, make sure that the white point
[D] is on the lower front side of the glass, as shown.
5. Peel off the backing [E] of the double-sided tape attached to the rear side of the
scale guide [F], then install the scale guide [F] (! x 2 removed in step 2).
6. Install two stud screws [G].
7. Mount the DF on the copier, then slide the DF to the front as shown.
8. Secure the DF unit with two screws [H].
9. Connect the cable [I] to the copier.
B386I107.WMF
B386I108.WMF
[H]
[I]
[H]
[A]
[B]
[C]
[D]
[E]
[F]
[G]
[G]
