1-BIN TRAY UNIT (B480) 26 July 2002
1-28

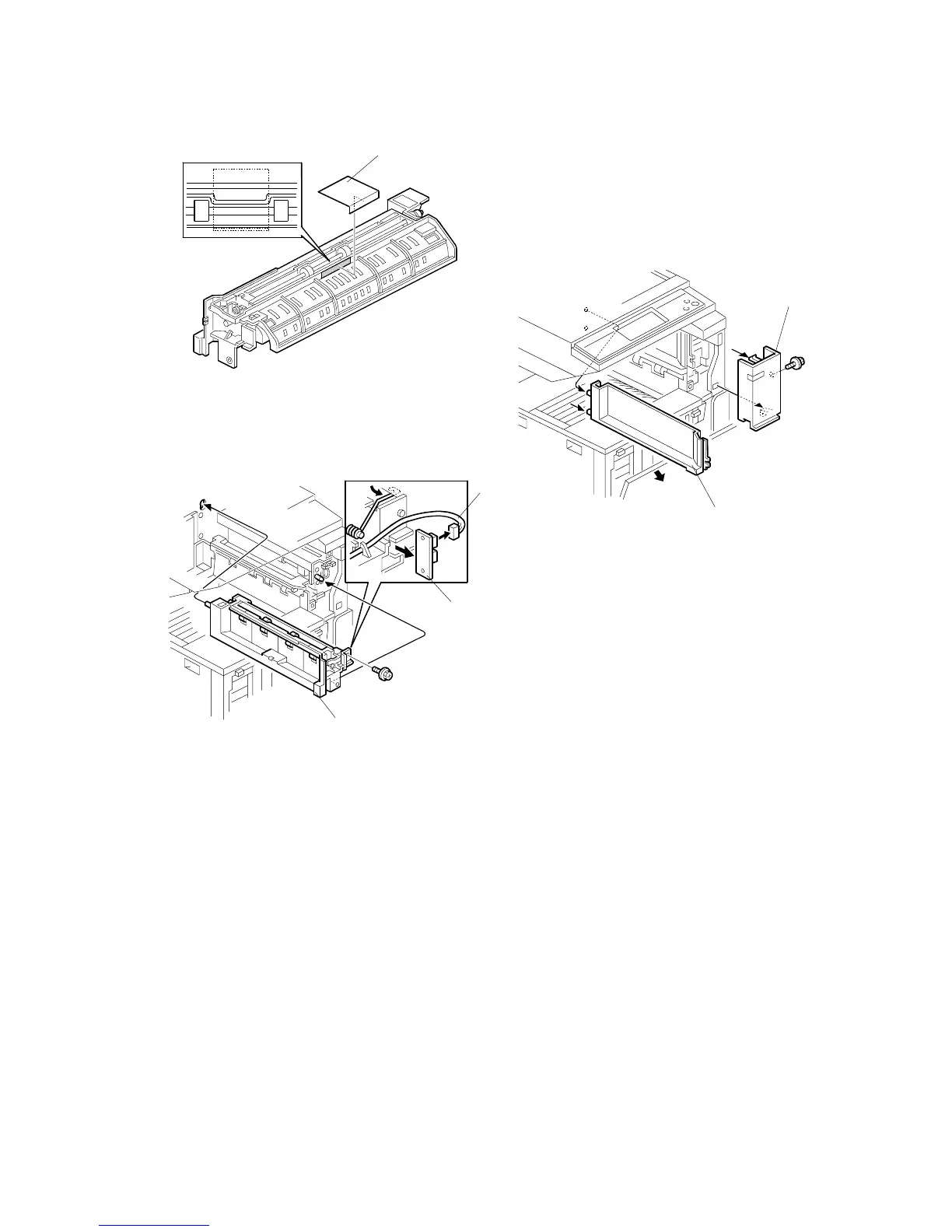

3. Peel off the backing of the double-sided tape attached to the shield mylar [A].
Then attach the shield mylar to the 1-bin unit.
4. If the front right cover [B] is installed, remove it (! x 1).
5. Remove the cover [C].
6. Disconnect the connector [D] and remove the LED board [E].
7. Install the 1-bin tray unit [F] (! x 1).
B480I103.WMF
B480I102.WMF
B480I108.WMF
[B]
[C]
[F]
[D]
[E]
[A]
To Next Page
