26 July 2002 1000-SHEET FINISHER (B408)
1-43
Installation

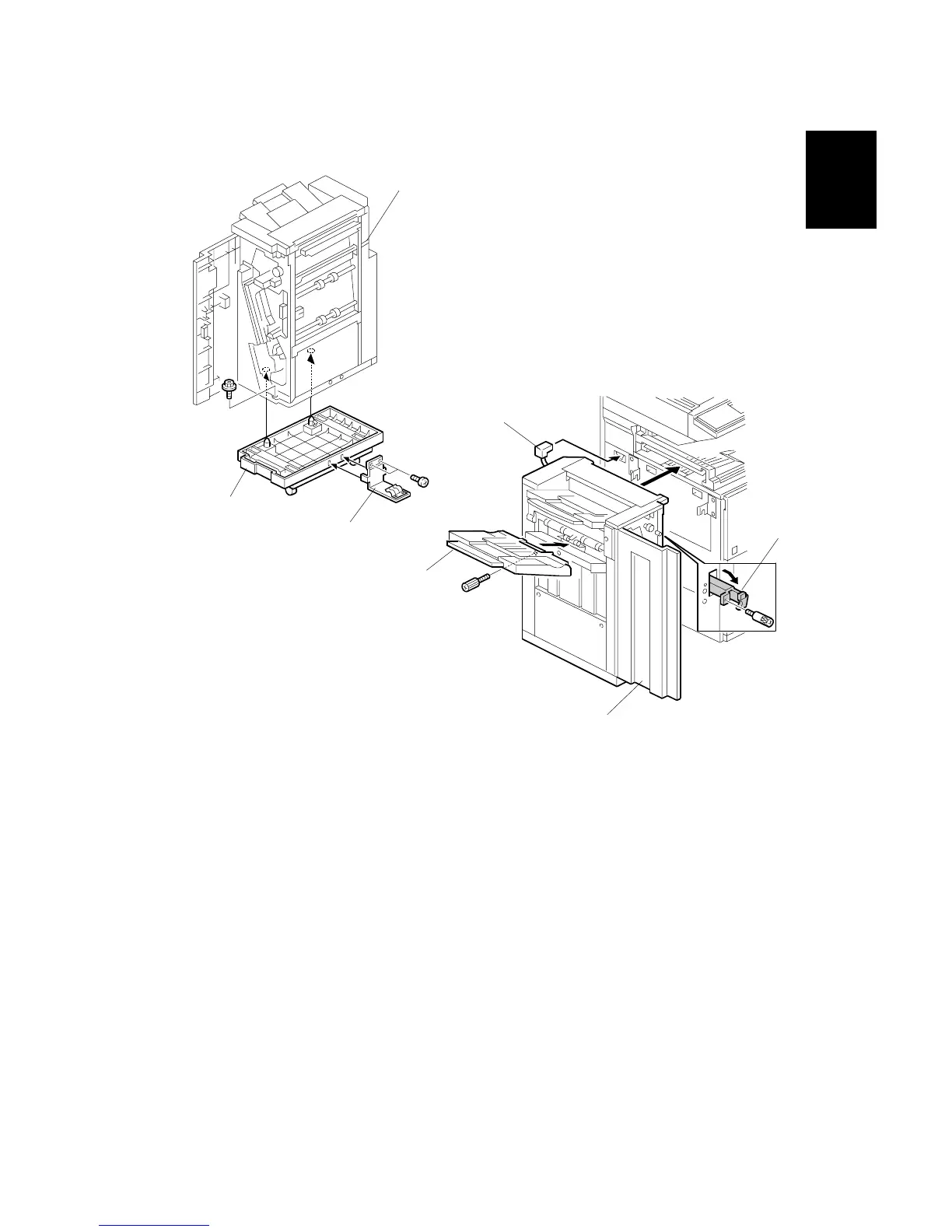

2. Unpack the adjustment table (B488).
3. Set the finisher [A] on the adjustment table [B] and secure the finisher (! x 1).
4. Install the grounding plate [C], which is in the accessory box for the adjustment
table (! x 2).
5. Open the front door [D], then pull the locking lever [E].
6. Align the finisher on the joint brackets, and lock it in place by pushing the
locking lever.
7. Secure the locking lever (1 knob screw - M3x8) and close the front door.
8. Install the copy tray [F] (1 knob screw - M4x10).
9. Connect the finisher cable [G] to the main machine.
B408I152.WMF
B408I114.WMF
[A]
[B]
[C]
[D]
[E]
[F]
[G]
