SATO CL4NX Plus - Page 181

181

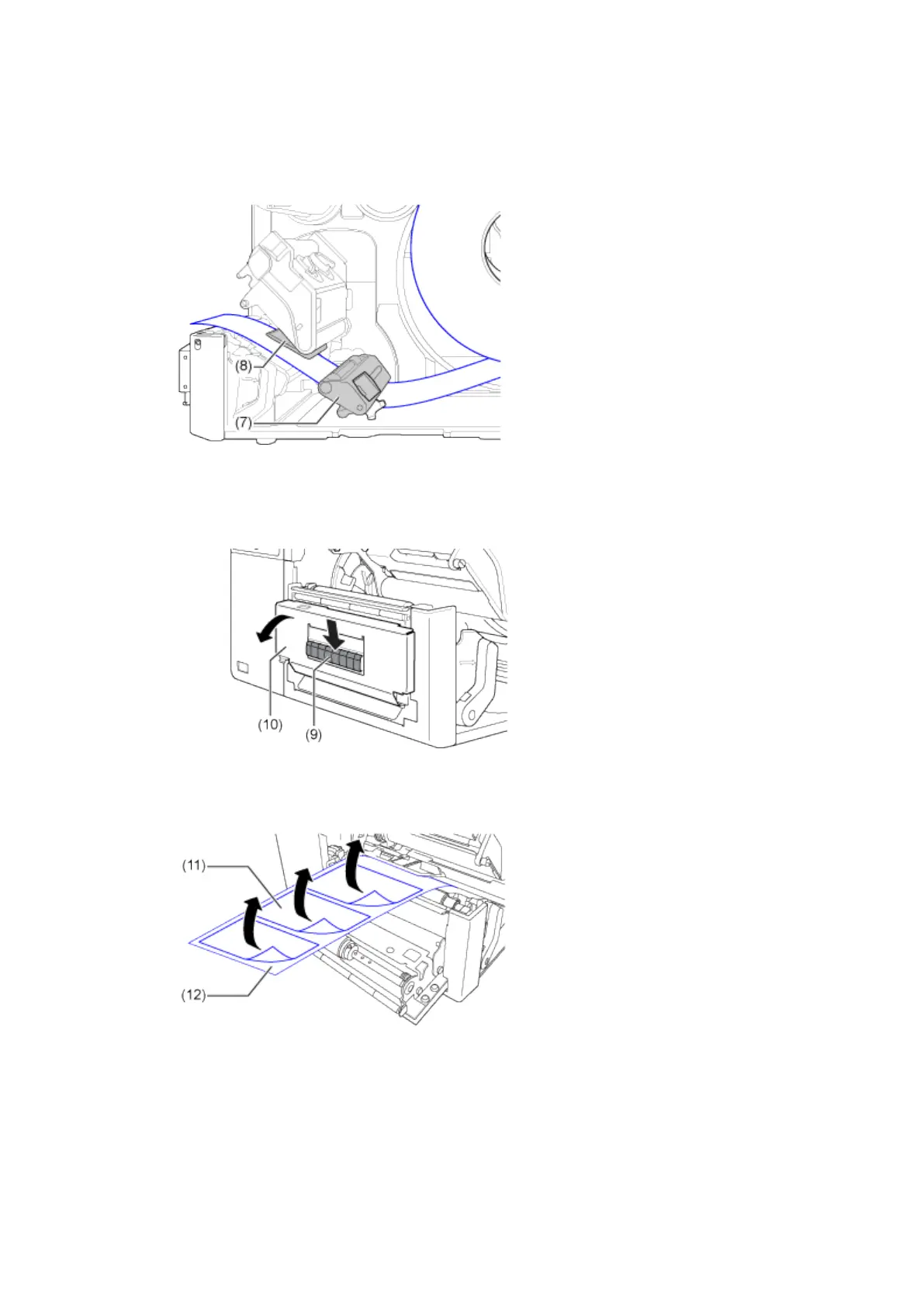

6. Pass the media below the media damper (7) and the media sensor guide (8) while
pushing the media to inside of the product.
Make sure that the end of the media extends out the front of the product.
7. Press the tab (9) at the front of the product to open the dispenser unit (10).
8. Remove about 30 cm (11.8") of labels (11) from the liner (12).
