Loading the Media with the Optional Dispenser Unit and Liner Discharge Rewinder
186

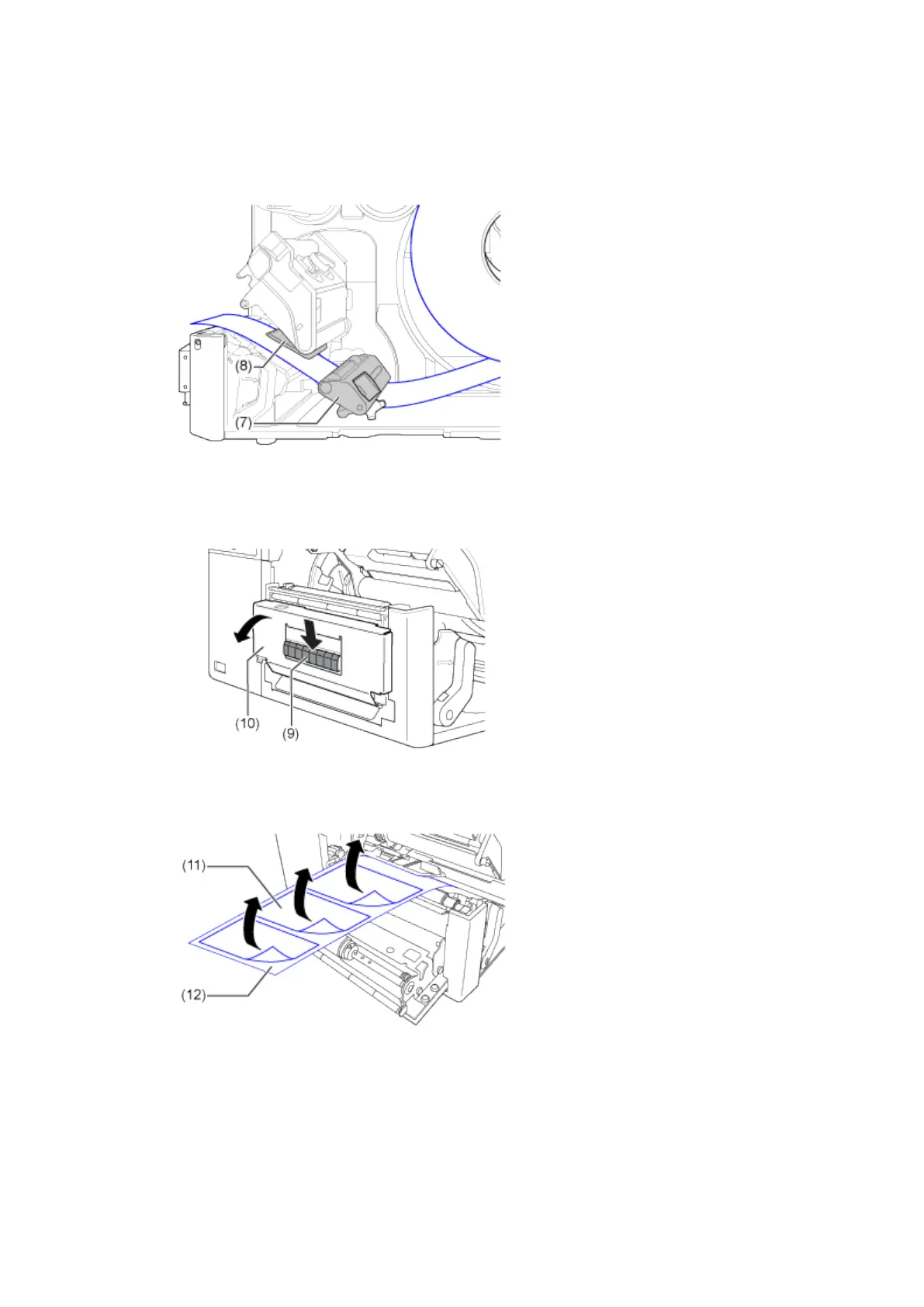

6. Pass the media below the media damper (7) and the media sensor guide (8) while
pushing the media to inside of the product.
Make sure that the end of the media extends out the front of the product.
7. Press the tab (9) at the front of the product to open the dispenser unit (10).
8. Remove about 80 cm (31.5") of labels (11) from the liner (12).
To Next Page
