SATO CL4NX Plus - Page 187

187

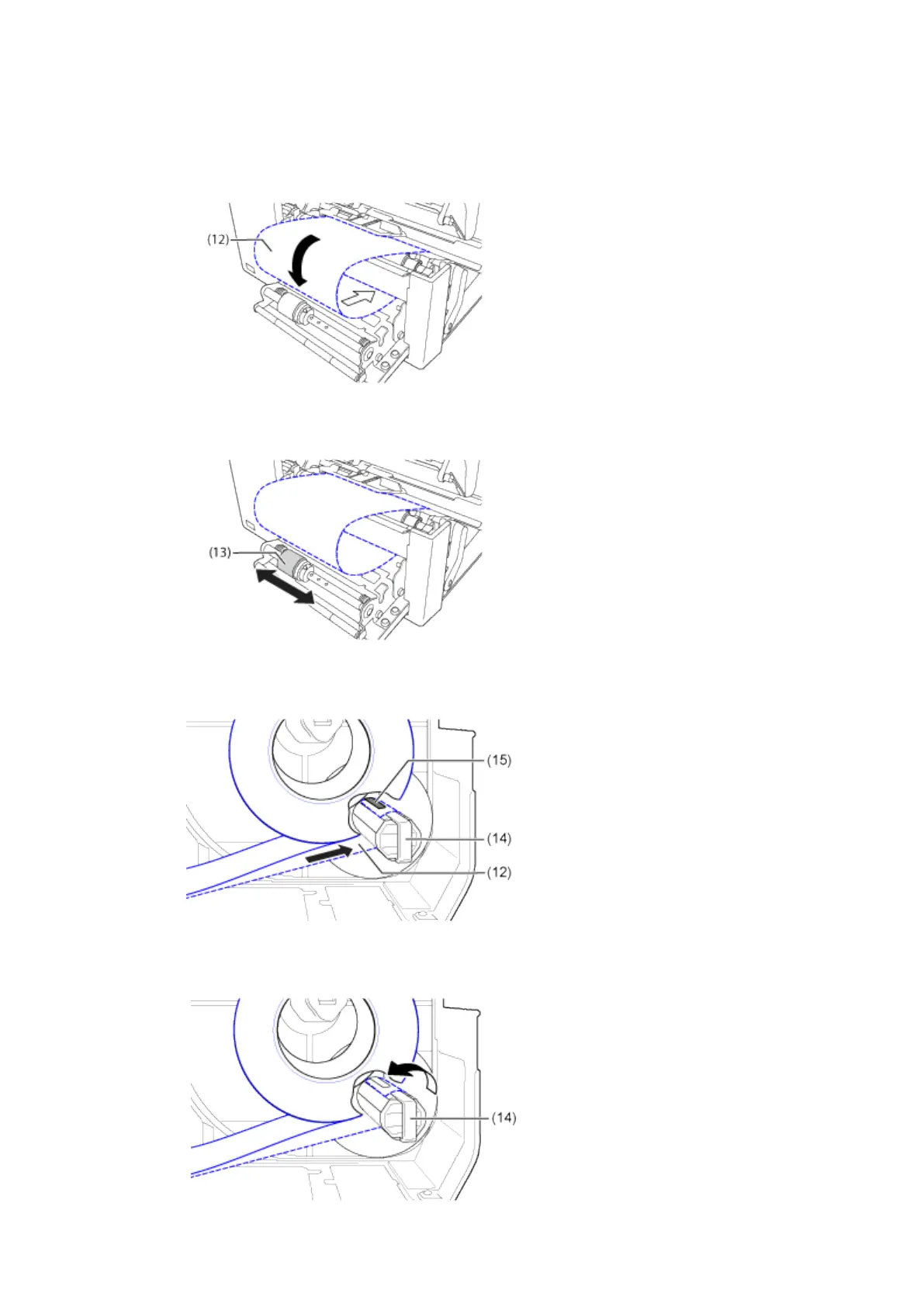

9. Pass the liner (12) through the gap of the dispenser unit to the inside of the
product.
10. Adjust the dispenser roller (13) to the center of the label.
11. Pass the liner (12) below the liner rewinder (14), and attach it with the clip (15).
12. Rotate the liner rewinder (14) counterclockwise by hand, to wind the liner.
