[External I/O]
376
Offline
[Qty] is shown if [MODE1] is selected in the [EXT 9PIN] menu.
[Offline] is shown if [MODE2] is selected in the [EXT 9PIN] menu.
Assign the pin No. for the Qty/Offline signal output.
Ribbon Near End
Assign the pin No. for the Ribbon Near End signal output.
Dispenser
Assign the pin No. for the Dispenser signal output.
◦ Use this signal to connect the dispenser unit or linerless cutter kit.
Label Near End
Assign the pin No. for the Label Near End signal output.
The options for each signal output are as follows:
[PIN 1] Set the selected signal to pin 1.
[PIN 3] Set the selected signal to pin 3.
[PIN 4] Set the selected signal to pin 4.
[PIN 6] Set the selected signal to pin 6.
[PIN 9] Set the selected signal to pin 9.
[PIN 10] Set the selected signal to pin 10.
[OFF] Set the selected signal to off mode.
• You cannot set any outputs using the same pin number. If you attempt to set the same
number, the settings will be shown in red and you cannot save the settings.

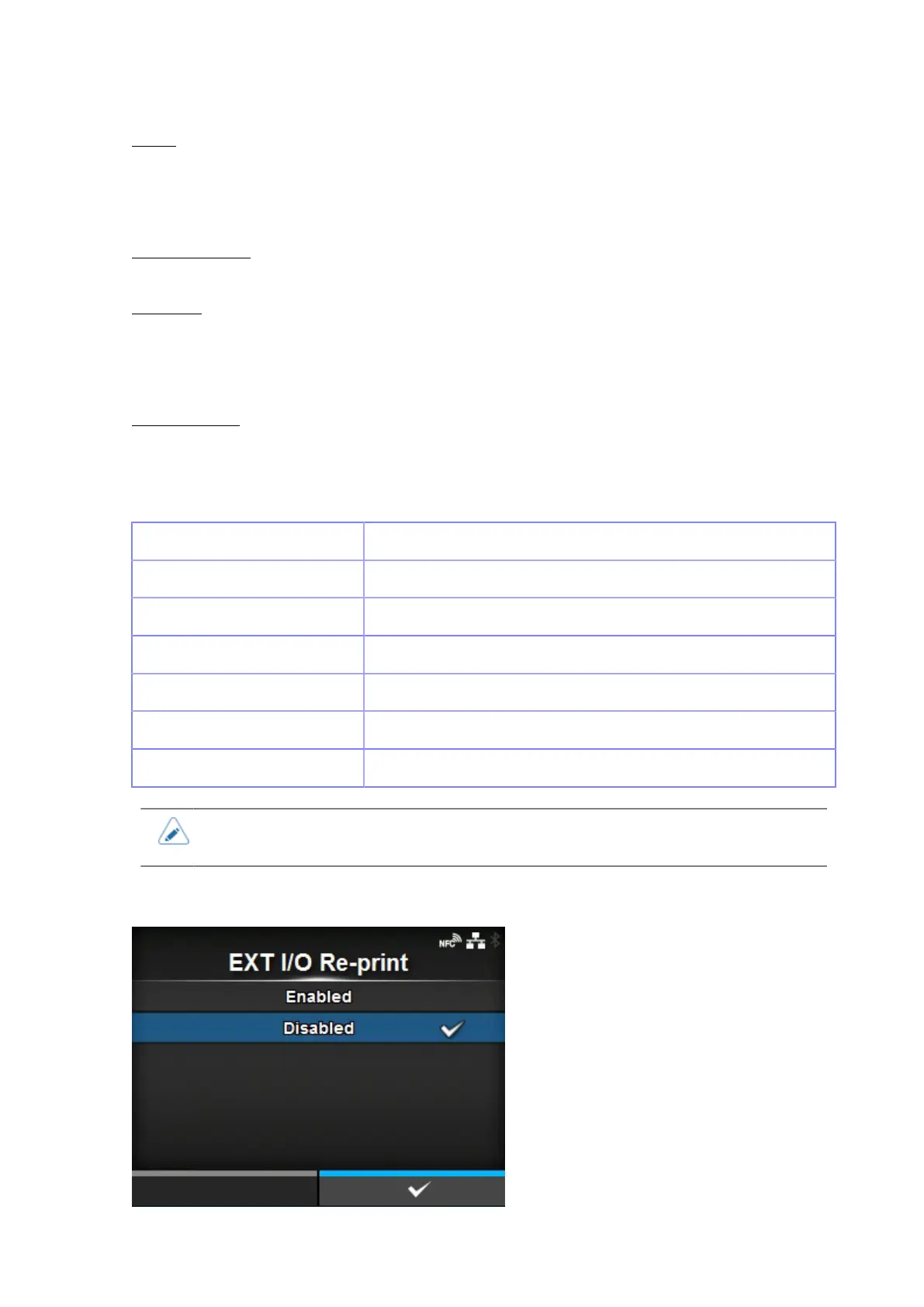

[EXT I/O Re-print]
