SATO CL4NX Plus - Page 543

543

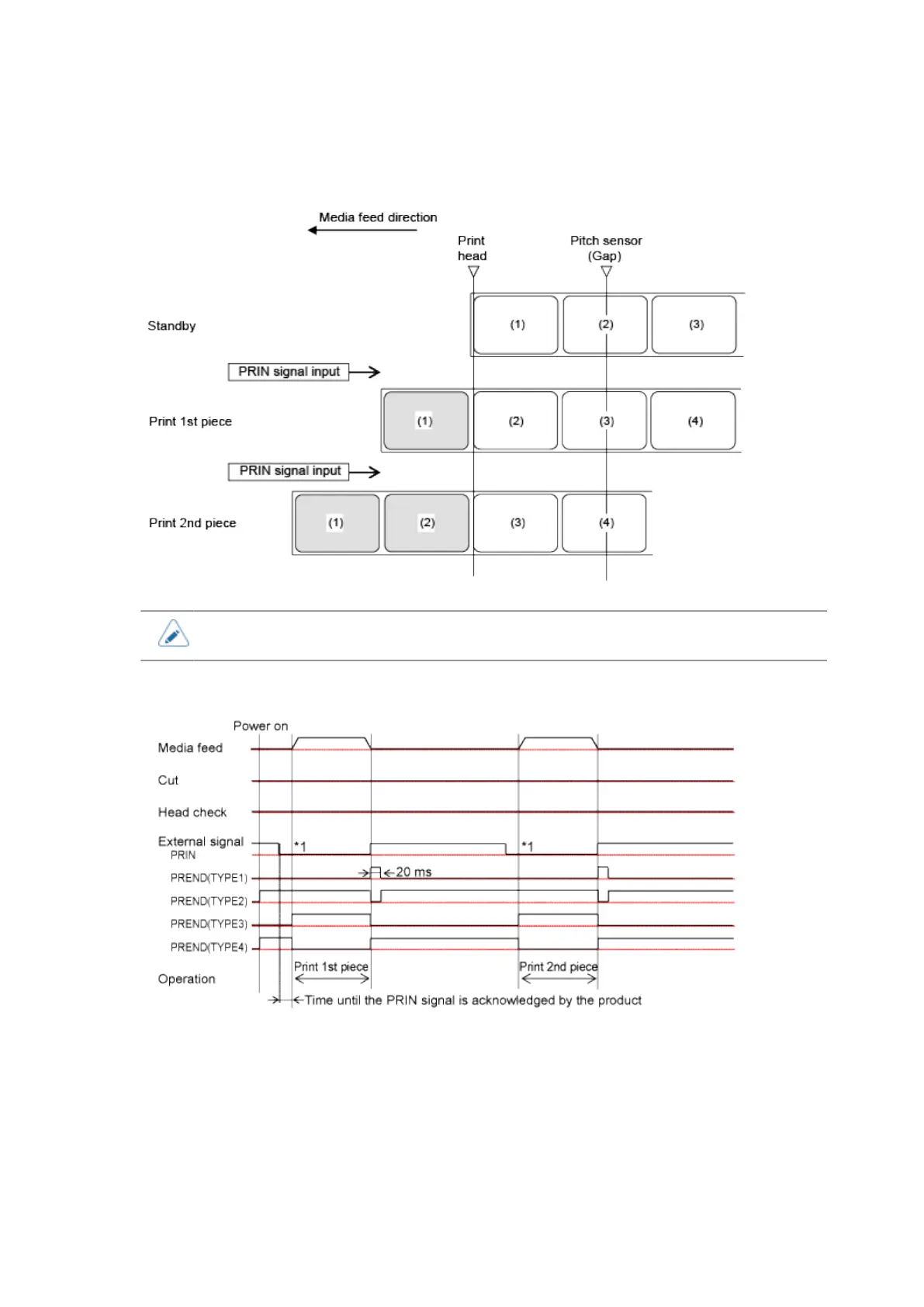

Operation 3: Continuous Mode with Pulse Input (Head Check Disabled)
Operation
• The figure above shows the reference position when the Gap sensor is used.
Timing Chart
*1 Keep the PRIN signal until the PREND signal is outputted.
