Operation 4: Continuous Mode with Pulse Input (Head Check Enabled)
Operation

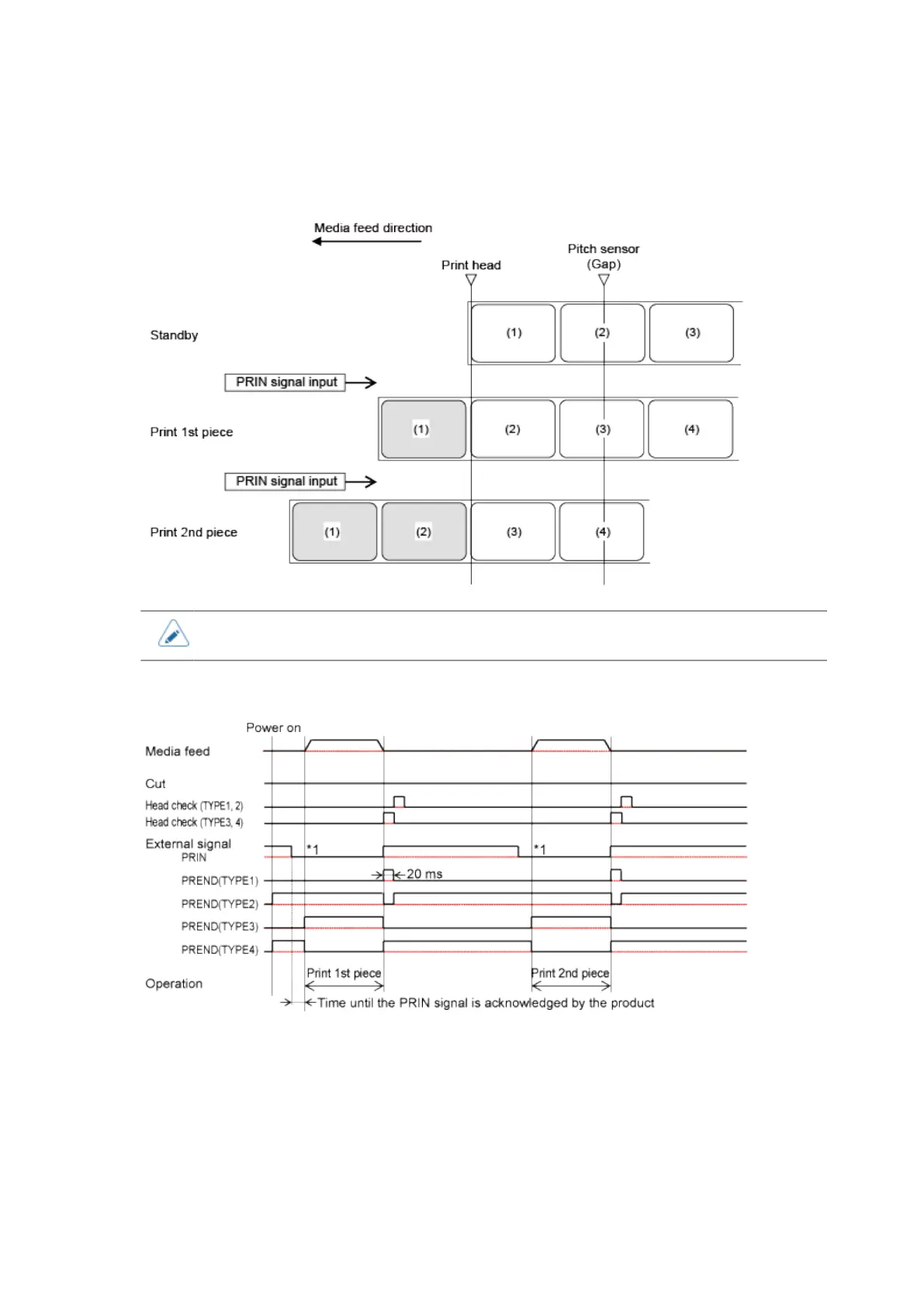

• The figure above shows the reference position when the Gap sensor is used.
Timing Chart
*1 Keep the PRIN signal until the PREND signal is outputted.
