579

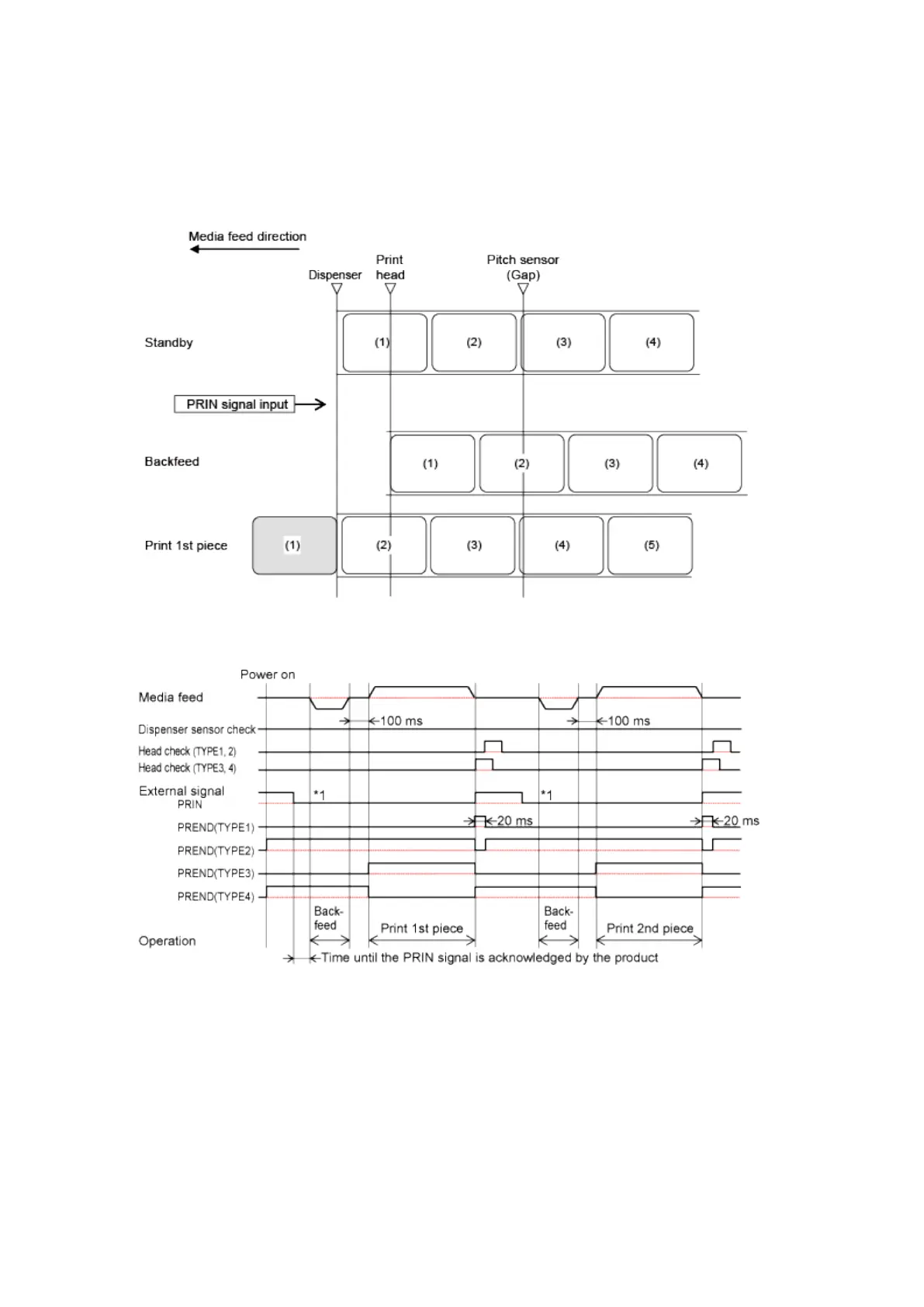

Operation 34: Dispenser Mode, Backfeed Before Printing, and with Pulse Input
(Head Check Enabled)
Operation
Timing Chart
*1 Keep the PRIN signal until the PREND signal is outputted.
