SATO CL4NX Plus - Page 580

580

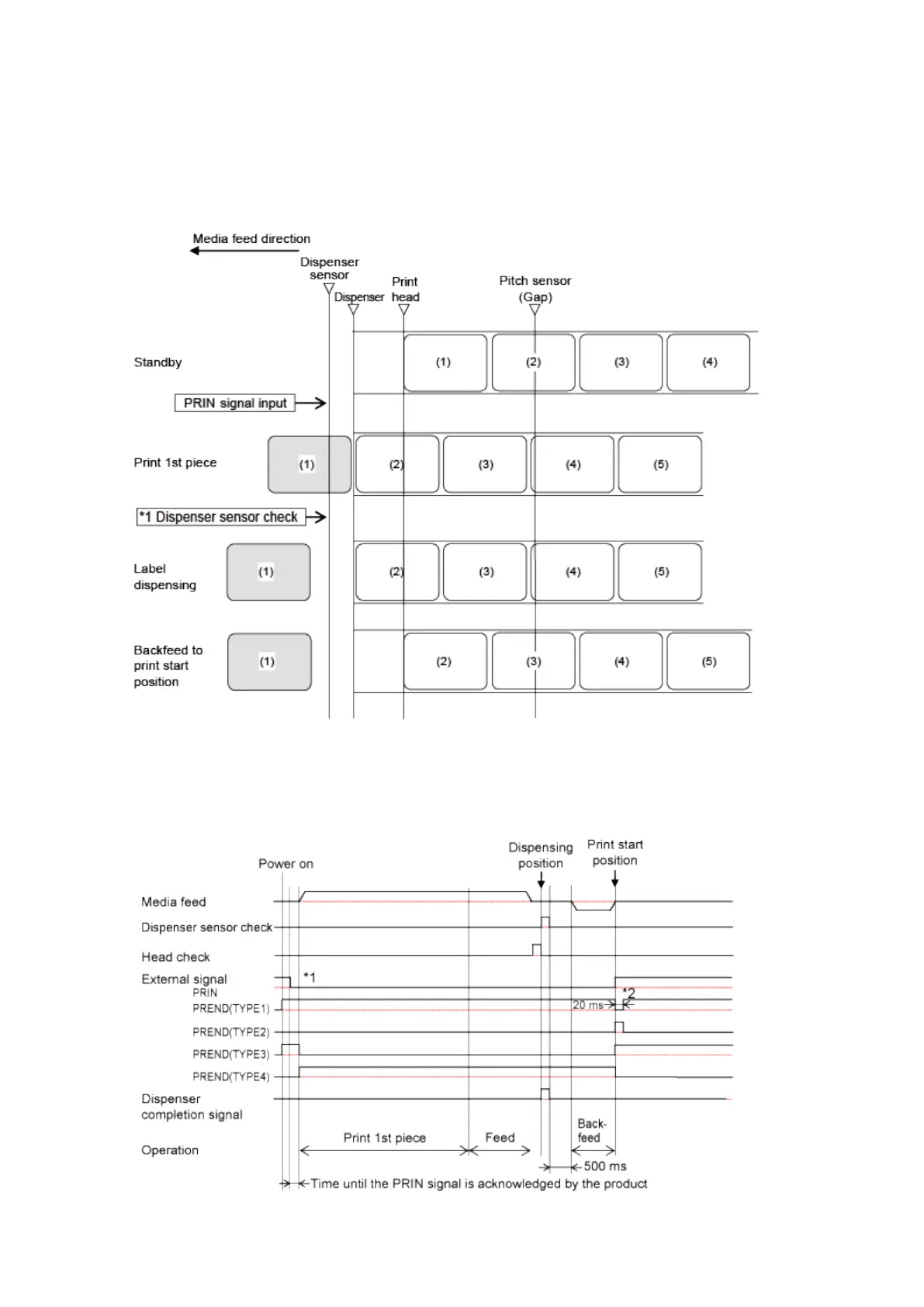

Operation 35: Dispenser Mode, Backfeed After Printing, with Pulse Input, and with
the Dispenser Completion Signal (Head Check Disabled)
Operation
*1 The dispenser sensor confirms the dispensing condition and the product does not perform the next
operation until the label is dispensed.
Timing Chart
