External Signal (EXT) Interface
758
Maintaining the Print Start Signal (PRIN)
Item Input Waveform
Print Start
Print End
(PREND)
Signal
• Rise or fall time (T1) of Print Done signal is less than 150 ns. You have to consider the time when
outputting the signal from the connected devices.
• When the print start signal and reprint signal are outputted simultaneously, the print start signal is
enabled and the product does not perform reprinting.
• The reprint signal is valid only from the time of the print operation end (QTY=0) until the next print
data reception. Other than that, the product does not perform reprinting.

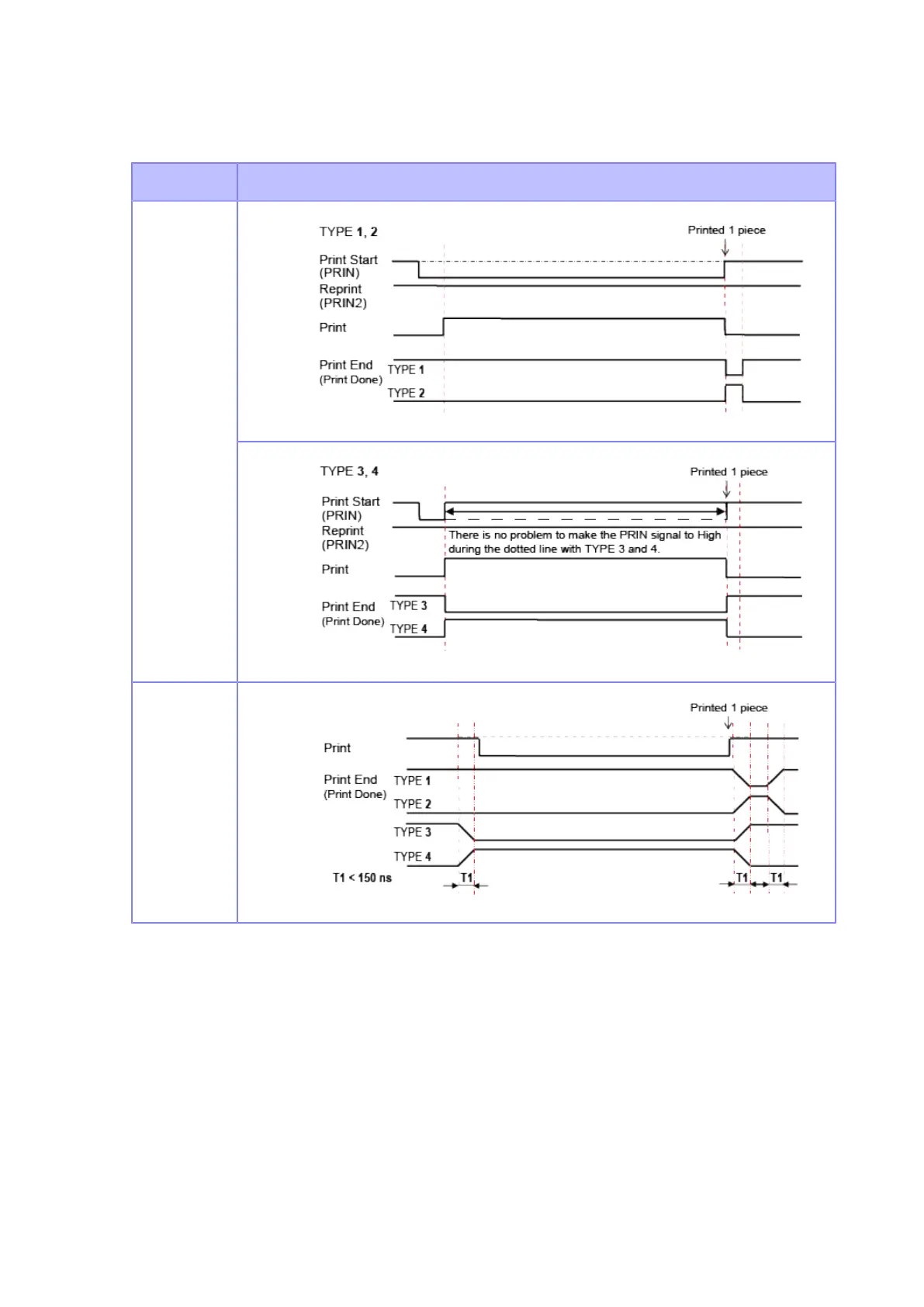

Timing Chart of the EXT Output Signal
