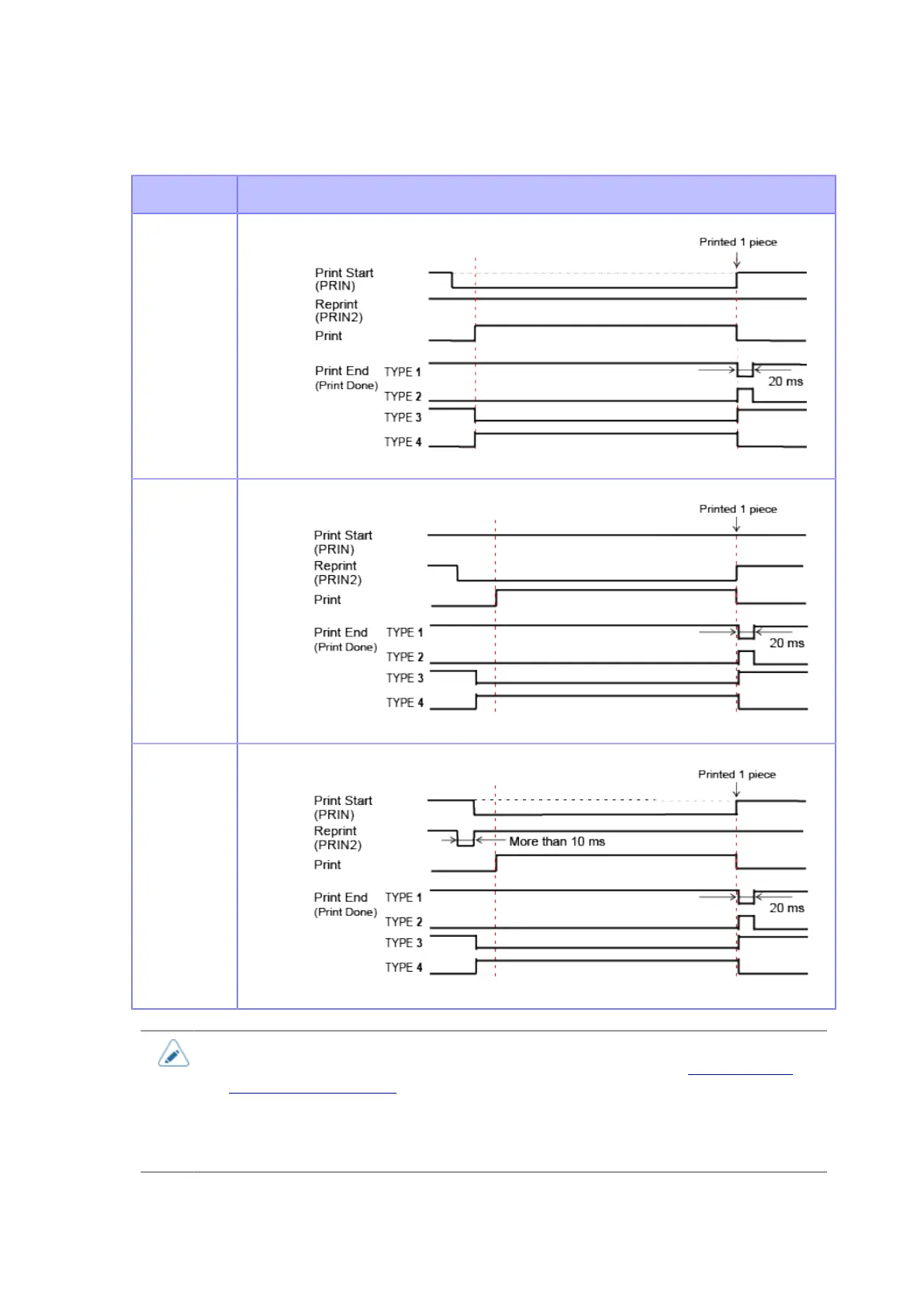

Timing Chart of the EXT Input Signal
Item Input Waveform
Print Start
Reprint (No
Print Start
Signal)
Reprint
(With Print
Start Signal)
• Keep the print start signal (PRIN) to "Low" until the print end signal (Print done) is
outputted. For maintaining the print start signal (PRIN), refer to the Maintaining the
Print Start Signal (PRIN).
• Keep the output reprint signal (PRIN2) for more than 10 ms. When signal is outputted
for shorter than 10 ms, and reprint signal is not acknowledged, the product does not
perform reprinting.
