Thermo Scientific Applied Biosystems QuantStudio 7 Pro - Instrument and computer clearances

1
1

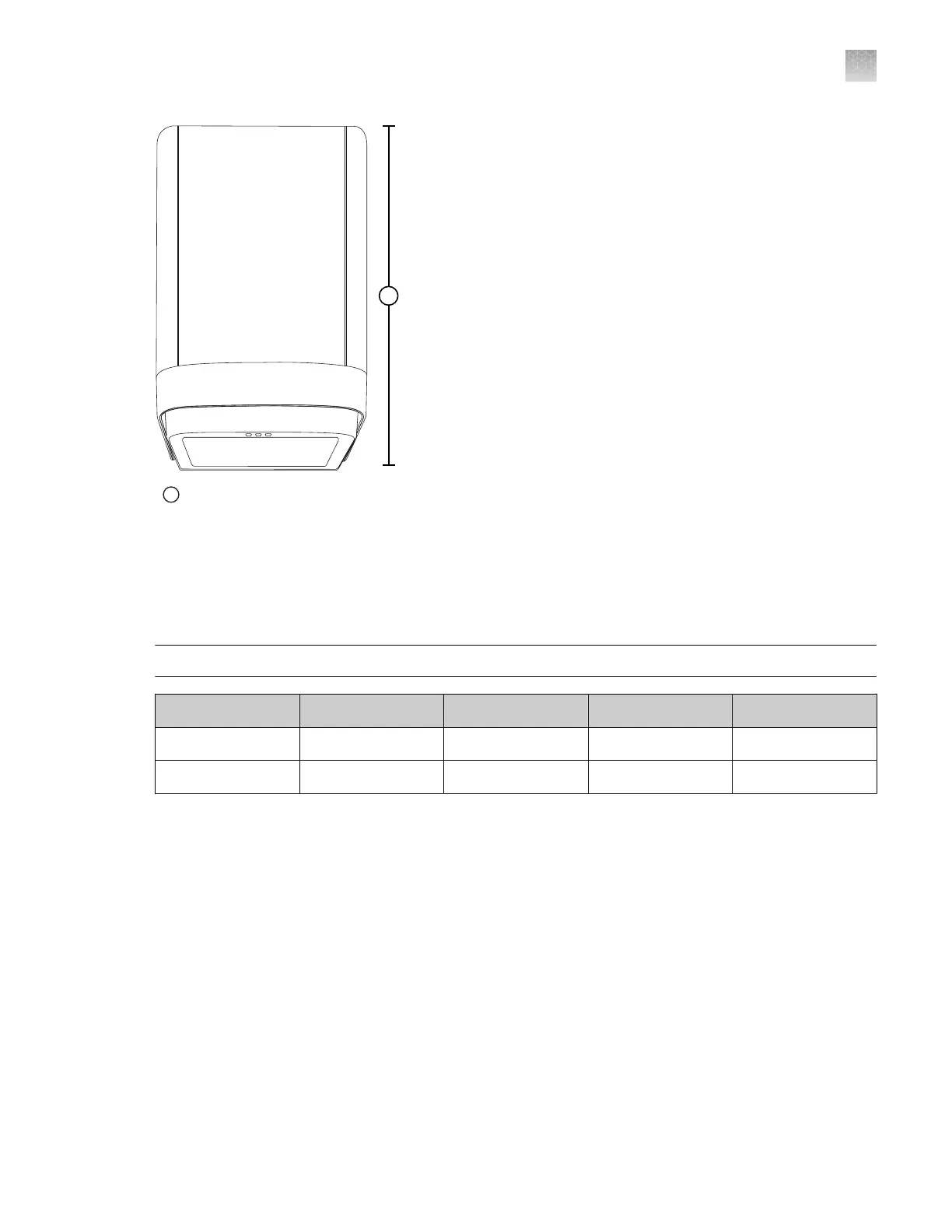

Depth: 52.5 cm
Instrument and computer clearances
During instrument installation and maintenance, it is necessary to access the back of the instrument. If
the back of the instrument faces a wall, ensur
e that there is sucient clearance on the bench to rotate
the instrument for access.
IMPORTANT! F
or safety, the power outlet for the instrument must be accessible.
Component Top Front Sides Back
Instrument 30.5 cm (12 in.) 30.5 cm (12 in.) — 15.25 cm (6 in.)
Computer
[1]
— 15.25 cm (6 in.) — 15.25 cm (6 in.)
[1]
C
o-locating the computer with the instrument is optional.
Appendix A Instrument specifications and layout
Instrument dimensions
A
QuantStudio
™
6 Pro Real-Time PCR System and QuantStudio
™
7 Pro Real-Time PCR System User Guide
189
