Configured system dimensions

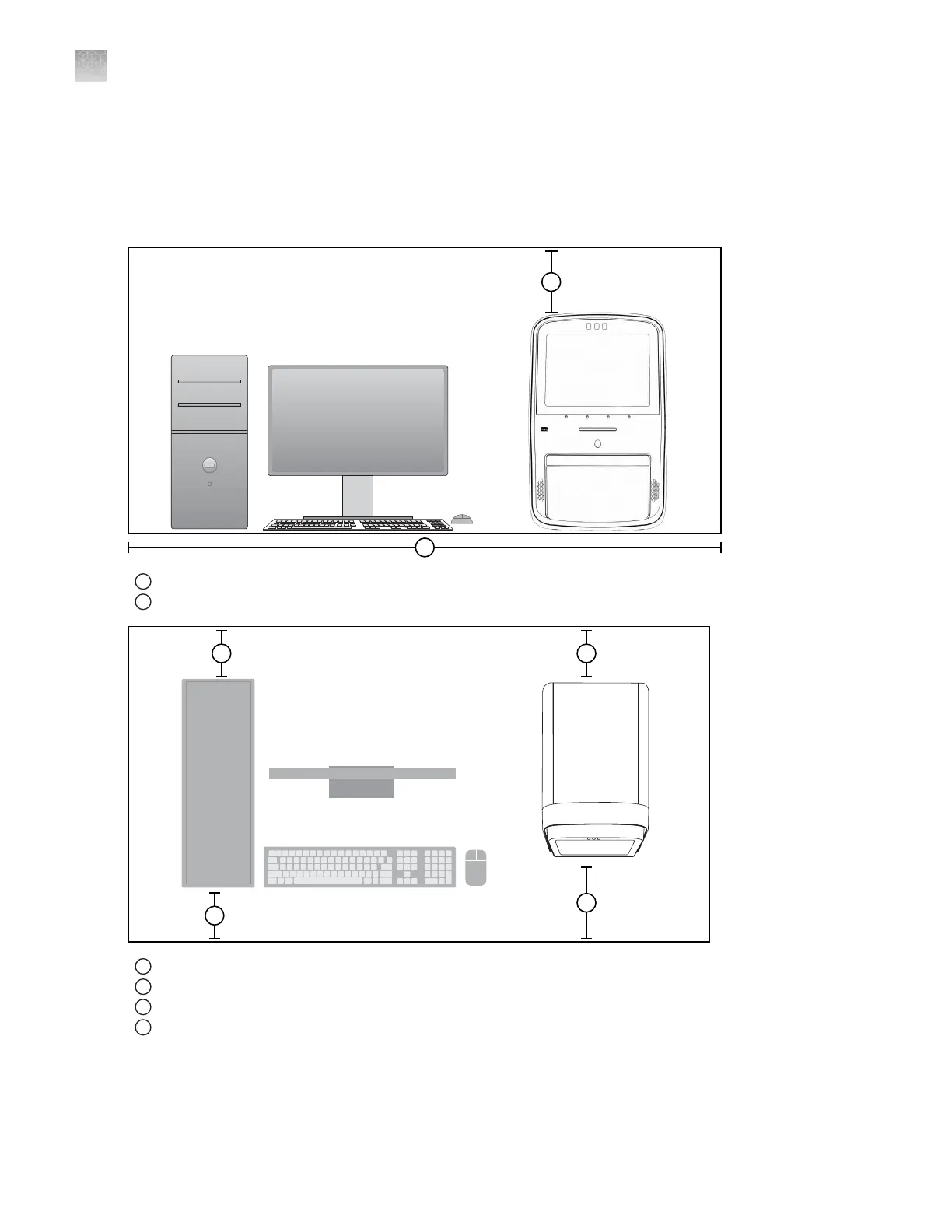

Allow space for the configured instrument.
It is not a requirement to locate the computer next to the instrument. The clearances for the instrument
shown in the figures also apply to an instrument without a computer.
1
2
1
Top clearance for the instrument: 30.5 cm
2
Width of system: 185 cm
1
4
2
3
1
Back clearance for the computer: 15.25 cm
2
Back clearance for the instrument: 15.25 cm
3
Front clearance for the instrument: 30.5 cm
4
Front clearance for the computer: 15.25 cm
