Instrument and computer connections
2
3
4
6
5
1

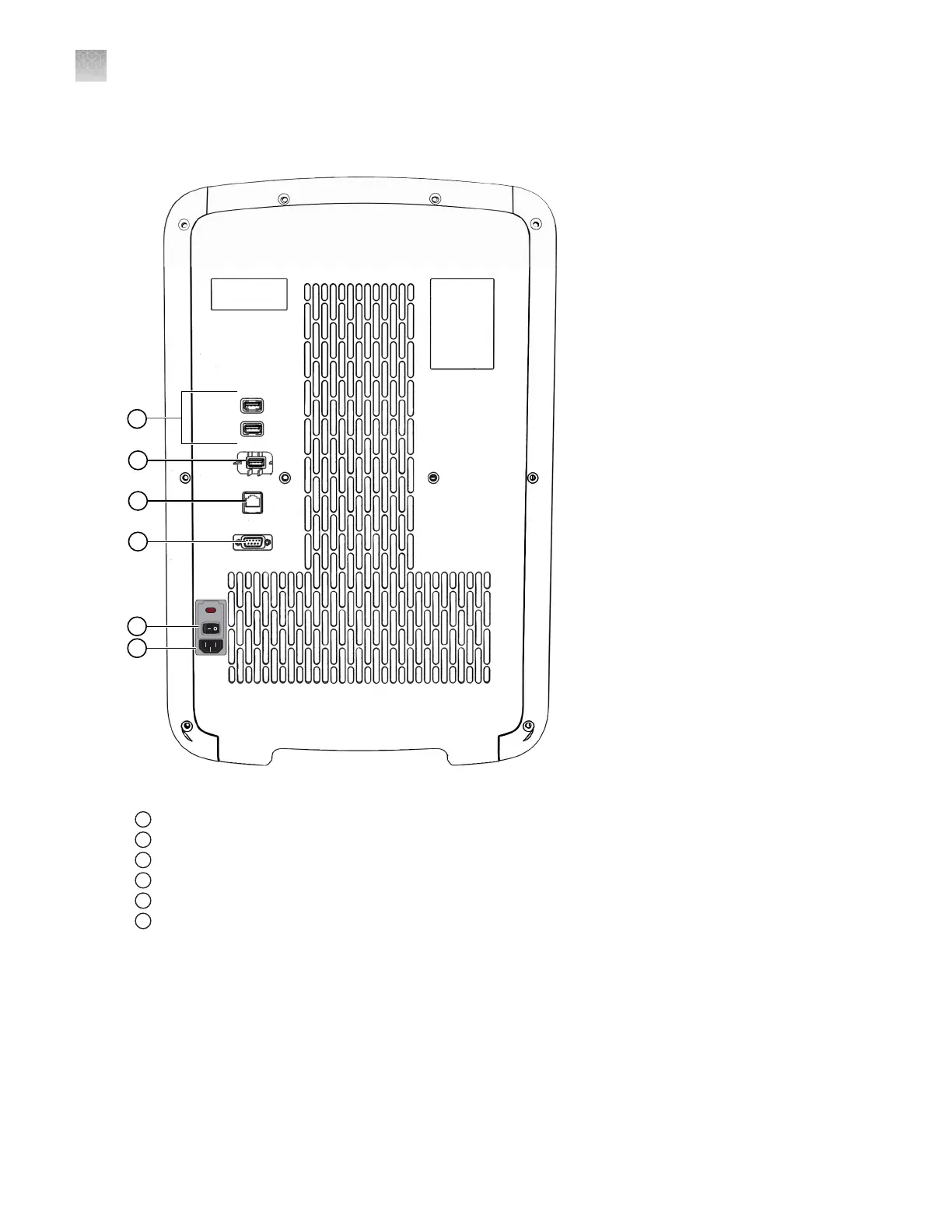

Figure 25 Instrument back panel
1
USB ports
2
Wi-Fi dongle port
3
Ethernet port
4
RS-232 port (service use only)
5
ON/OFF switch
6
Power inlet receptacle
