Xerox VersaLink B7035 Service Manual

April 2017
8-29
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Product Technical Overview
Launch Issue
All the Xerox® VersaLink® B7025/B7030/B7035 machine configurations feature a bypass tray
(Tray 5), PL 70.30. The machine can also be configured with an optional high capacity feeder
(HCF), PL 70.45 and Figure 3.

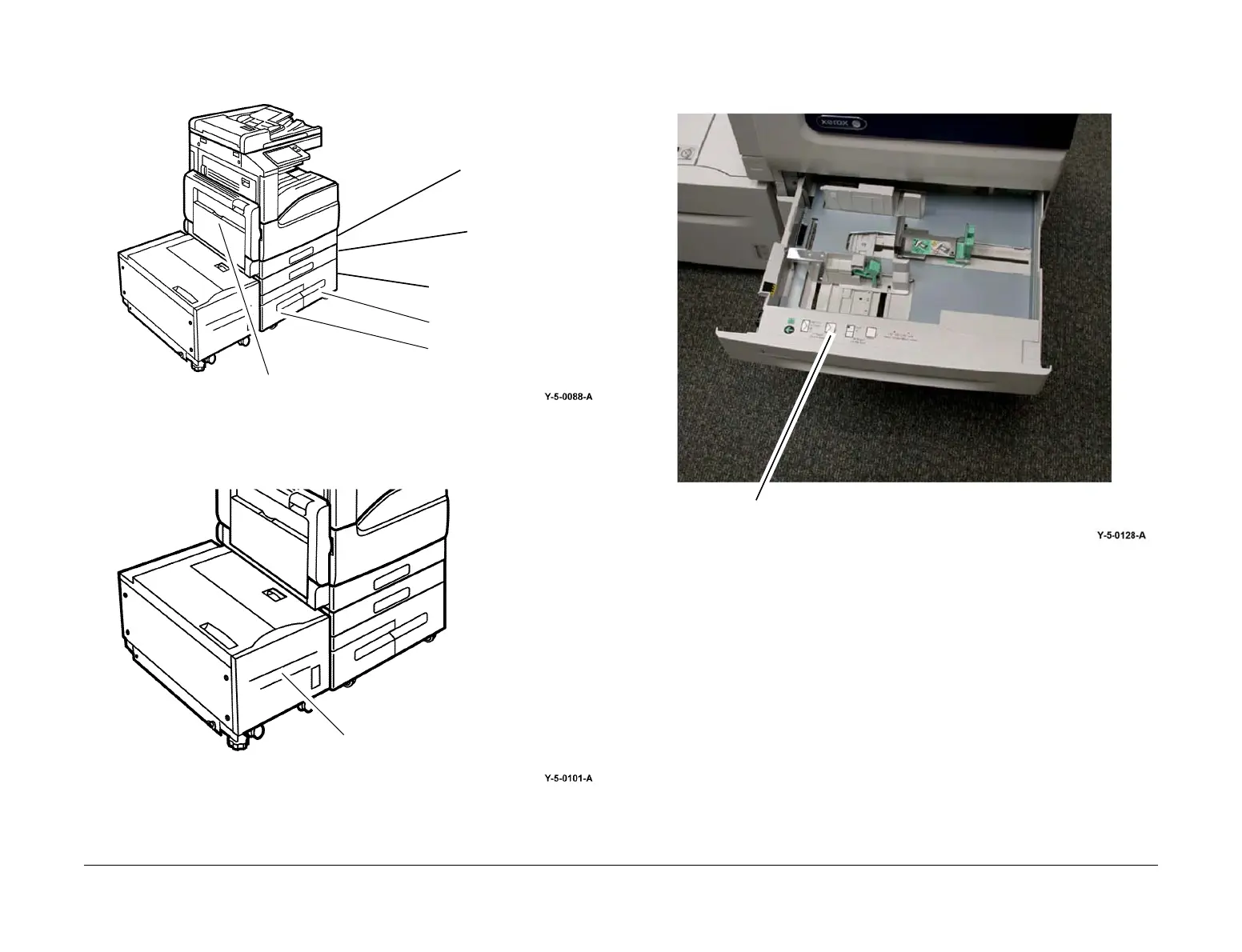

Figure 3 Media supply trays
The HCF can only be installed on machines configured with either a 1TM, 3TM or TTM, Figure 4.
Figure 4 High capacity feeder
An optional envelope tray is available, PL 70.100 Item 1. The envelope tray is installed by the
customer in the tray 1 position. Refer to Figure 5.
Figure 5 Envelope tray
Supported Media
Refer to GP 15 for the paper and media size specifications of the various paper trays.
Paper Tray Elevation and Feeding: Trays 1, 2, 3 and 4
NOTE: The elevation mechanism is similar trays 3 and 4 of the TTM but on different on the
HCF.
Refer to the relevant sections:
• Tandem Tray Module (TTM): Tray 3 components.
• Tandem Tray Module (TTM): Tray 4 Components.
• High Capacity Feeder (HCF) (Tray 6).
Paper trays 1, 2, 3 and 4 all have similar paper elevator systems that lift the paper stack into
the paper feed position. The paper feed side of a hinged bottom plate is raised by a lift shaft
until the paper stack is at the correct height to feed the top sheet of paper, Figure 6. The tray
drops mechanically when the tray is opened as the gears disengage.
Tandem Tray Module
(TTM - Trays 3 and 4)
Tray 5 (Bypass tray)
Tray 1
Tray 2
Tray 3
Tray 4
High Capacity Feeder
Envelope tray

Xerox VersaLink B7035 Specifications

General

Duplex printing	Yes
Print technology	LED
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	9.1 s
Print speed (black, normal quality, A4/US Letter)	35 ppm
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	999 copies
Time to first copy (black, normal)	5.4 s
Scan to	E-mail, FTP, SMB, USB
Scanner type	-
Input color depth	24 bit
Faxing	Mono faxing
Modem speed	33.6 Kbit/s
Printing colors	Black
Maximum duty cycle	129000 pages per month
Page description languages	HP-GL, PCL 5e, PCL 6, TIFF, XPS
Internal memory	2048 MB
Processor cores	2
Processor frequency	1050 MHz
Control type	Touch
Product color	Black, White
Display diagonal	7 \
Market positioning	Business
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Mobile printing technologies	Apple AirPrint, Google Cloud Print
Standard interfaces	Ethernet, NFC, USB 3.2 Gen 1 (3.1 Gen 1)
Optional connectivity	Wireless LAN
USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	1
Power consumption (average operating)	- W
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Y
Linux operating systems supported	Fedora 24, openSUSE 13.2
Other operating systems supported	IBM AIX 7.2
Server operating systems supported	Windows Server 2003, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional x64, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Pro x64, Windows 8 x64
Sustainability certificates	ENERGY STAR
Total input capacity	- sheets
Paper tray media types	Bond paper, Card stock, Envelopes, Heavy paper, Labels, Letterhead, Plain paper, Pre-Printed, Recycled paper
ISO A-series sizes (A0...A9)	A3, A4
Maximum ISO A-series paper size	A3

Weight and Dimensions

Depth	670.8 mm
Width	590 mm
Height	767.9 mm
Weight	- g
