Xerox VersaLink B7035 Service Manual

April 2017
8-30
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Launch Issue
Product Technical Overview
When either of the paper trays 1, 2, 3 or 4 are fully inserted into a powered on machine the
state of their tray level sensor is checked by a component control PWB. The STM, 1TM, 3TM
and TTM all have an integral control PWB. However, the components of tray 1 are controlled
by the drive PWB, PL 1.10 Item 3. If the signal tray level sensor off is detected by the control
logic, the feed/lift motor is activated to run in the counter clockwise direction (CCW). Thereby,
elevating (via a gear train and lift shaft) the bottom plate and paper stack of that tray up to the
paper feed position. In the feed position the elevated paper stack actuates the tray level sensor
to signal on. When tray level sensor on signal is detected by the control logic, the feed/lift motor
begins to rotate in a clockwise (CW) direction, driving the nudger and feed rolls and thereby
feeding the top sheet towards the takeaway rolls, Figure 6.
During paper feeding the tray level sensor is continuously monitored. When the signal tray
level sensor signal off is detected, the control logic determines that it cannot feed the next
sheet. The feed/lift motor, that is rotating CW during feed, then begins rotating CCW a prede
-
termined time after the end of the feed operation. Thereby, recommencing elevation of the
paper stack to the paper feed position, then the feed cycle begins again, Figure 6.

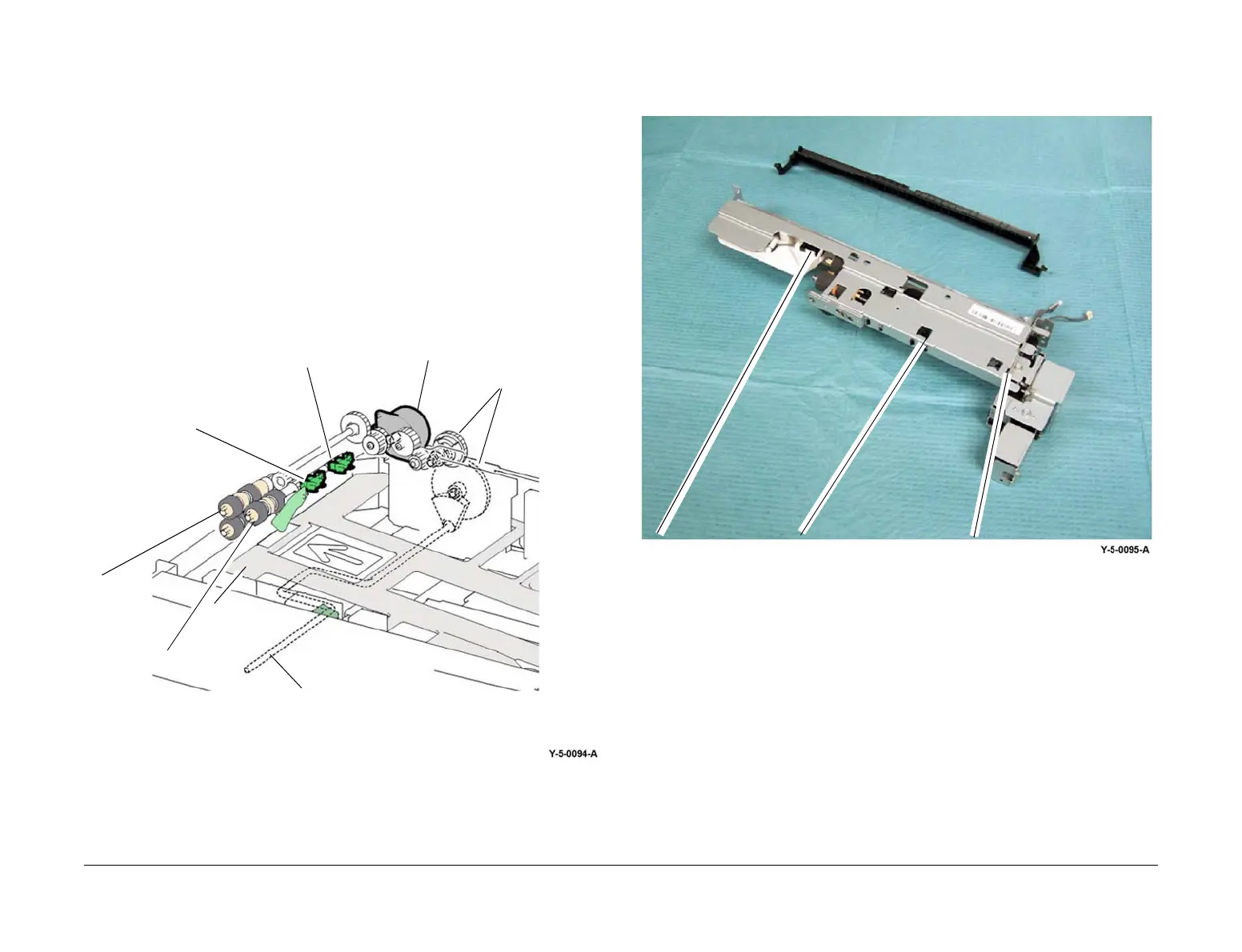

Figure 6 Tray control components
The tray level sensor, no paper sensor and pre feed sensor are all integral to the feeder
assembly, Figure 7. The feed/lift motor is part of the feeder assembly, Figure 8. Only paper tray
1 has a pre feed sensor. This sensor is use to detect paper mis feeds and paper jams.
Figure 7 Feeder assembly
Tray 1 no paper
sensor
Tray 1 level
sensor
Feed/lift
motor
Bottom plate
Lift shaft
Gear train
NOTE: This component configuration is
typical for paper trays 1, 2, 3 and 4.
Feed roll
Nudger roll
Pre feed sensor
Tray level sensor
No paper sensor

Xerox VersaLink B7035 Specifications

General

Duplex printing	Yes
Print technology	LED
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	9.1 s
Print speed (black, normal quality, A4/US Letter)	35 ppm
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	999 copies
Time to first copy (black, normal)	5.4 s
Scan to	E-mail, FTP, SMB, USB
Scanner type	-
Input color depth	24 bit
Faxing	Mono faxing
Modem speed	33.6 Kbit/s
Printing colors	Black
Maximum duty cycle	129000 pages per month
Page description languages	HP-GL, PCL 5e, PCL 6, TIFF, XPS
Internal memory	2048 MB
Processor cores	2
Processor frequency	1050 MHz
Control type	Touch
Product color	Black, White
Display diagonal	7 \
Market positioning	Business
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Mobile printing technologies	Apple AirPrint, Google Cloud Print
Standard interfaces	Ethernet, NFC, USB 3.2 Gen 1 (3.1 Gen 1)
Optional connectivity	Wireless LAN
USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	1
Power consumption (average operating)	- W
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Y
Linux operating systems supported	Fedora 24, openSUSE 13.2
Other operating systems supported	IBM AIX 7.2
Server operating systems supported	Windows Server 2003, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional x64, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Pro x64, Windows 8 x64
Sustainability certificates	ENERGY STAR
Total input capacity	- sheets
Paper tray media types	Bond paper, Card stock, Envelopes, Heavy paper, Labels, Letterhead, Plain paper, Pre-Printed, Recycled paper
ISO A-series sizes (A0...A9)	A3, A4
Maximum ISO A-series paper size	A3

Weight and Dimensions

Depth	670.8 mm
Width	590 mm
Height	767.9 mm
Weight	- g
