5. Disconnect the DADF PWB connectors (1), Figure 2.

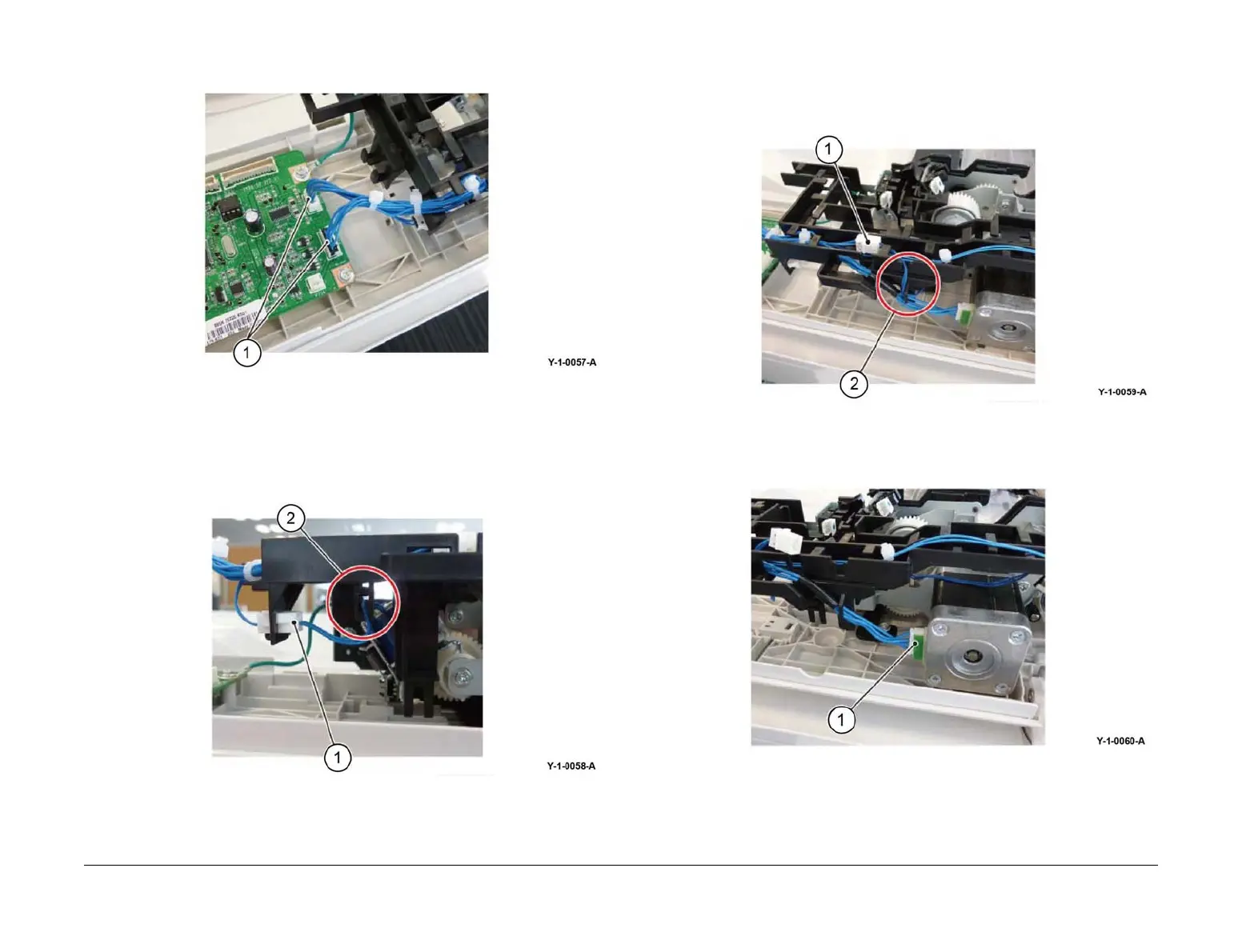

Figure 2 DADF PWB connectors
6. Disconnect the solenoid, Figure 3:
a. Disconnect the connector (1).
b. Remove the harness from the harness guide (2).
Figure 3 Solenoid harness
7. Disconnect the DADF feed clutch, Figure 4:
a. Disconnect the connector (1).
b. Remove the harness from the harness guide (2).
Figure 4 DADF feed clutch harness
8. Disconnect the DADF feed motor assembly connector (1), Figure 5.
Figure 5 DADF feed motor assembly connector
