Repairs and Adjustments

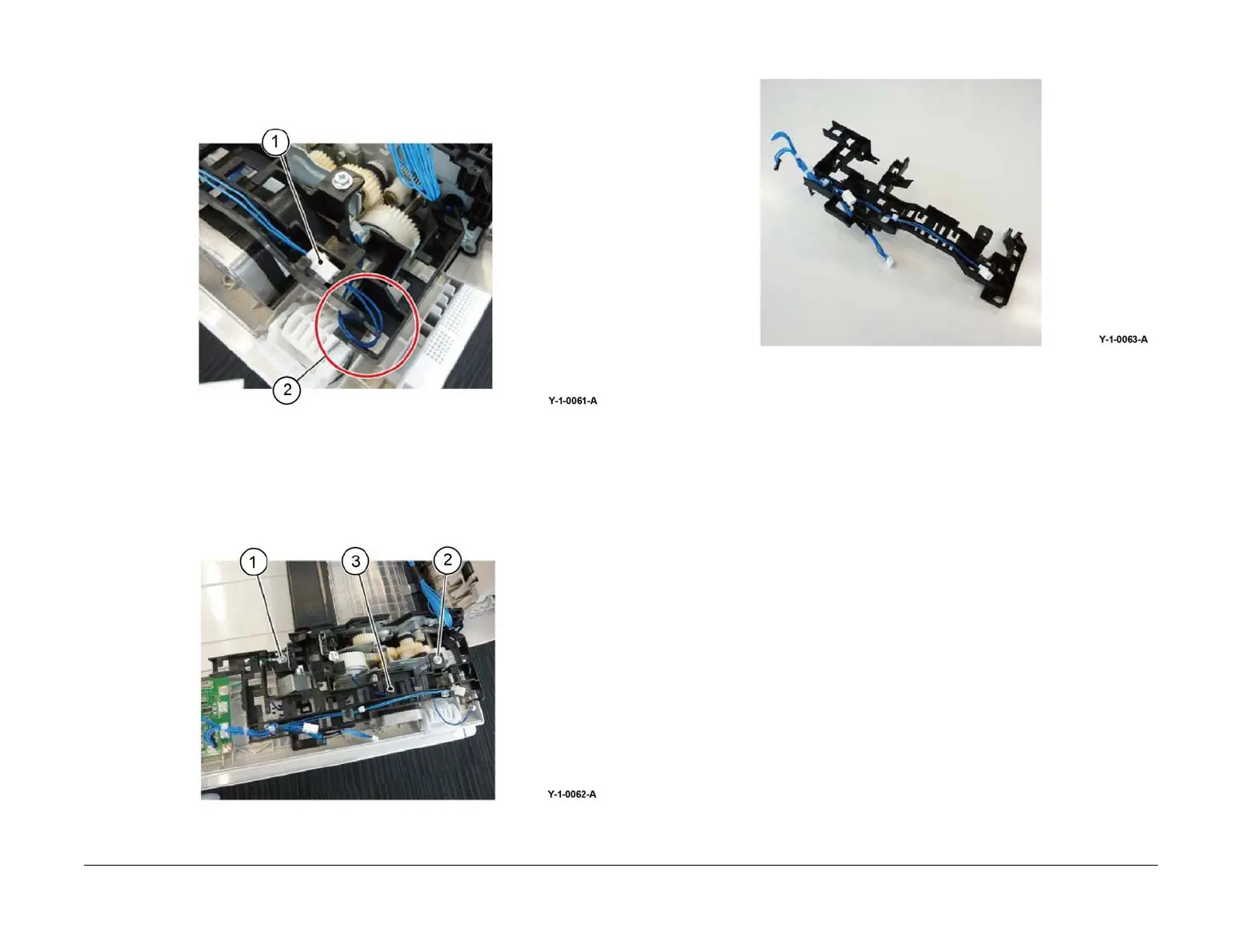

9. Disconnect the DADF T/A clutch, Figure 6:
a. Disconnect the connector (1).
b. Remove the harness from the harness guide (2).
Figure 6 DADF T/A clutch connector
10. Remove the harness guide and wire harness, Figure 7:
a. Disconnect the ground wire (1).
b. Remove the screw (2).
c. Remove the harness guide and wire harness (3).
Figure 7 Harness guide removal
NOTE: The removed harness guide and wire harness is shown in Figure 8.
Figure 8 Removed harness guide
Replacement
The replacement is the reverse of the removal procedure.
