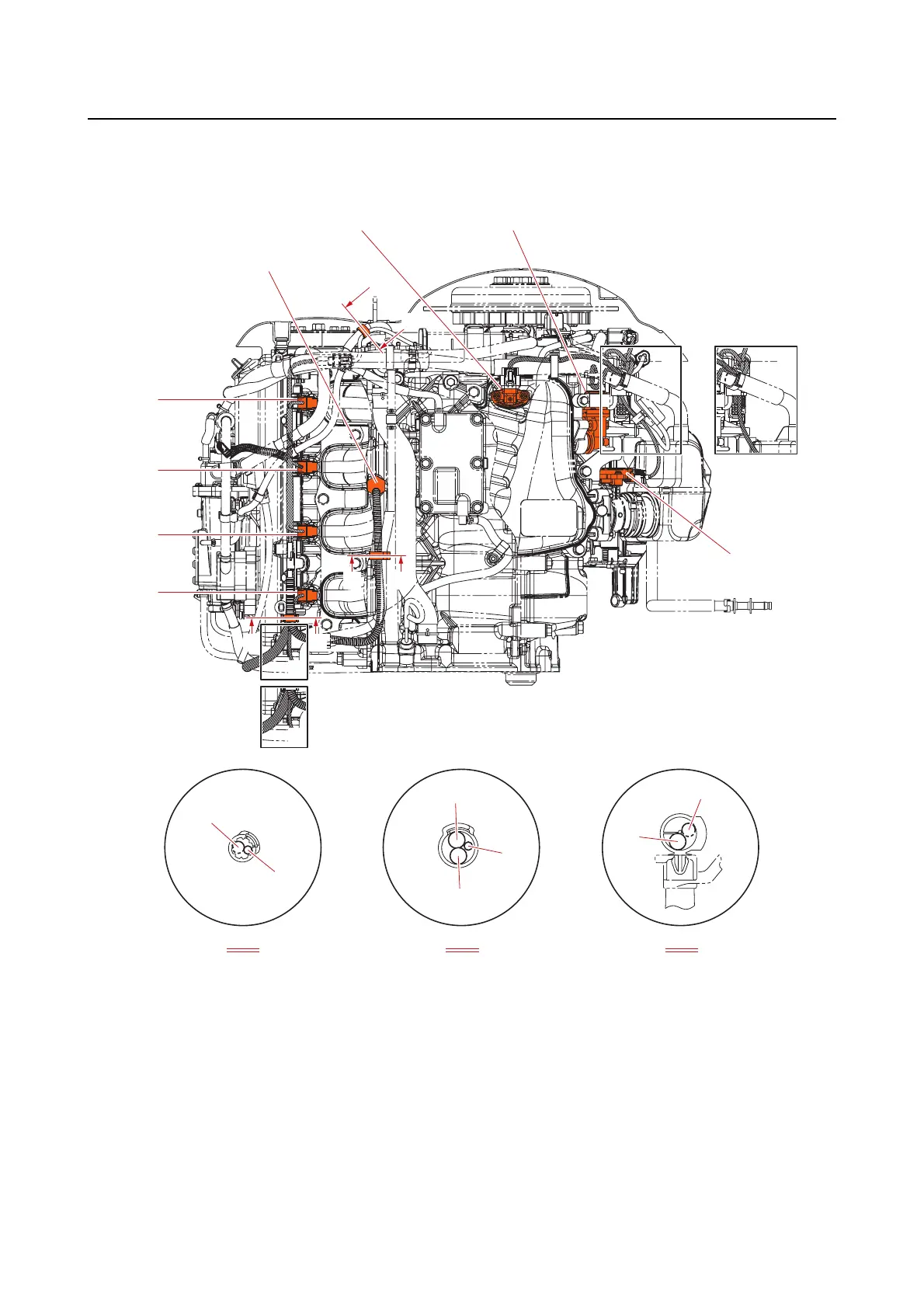

Electrical component and wire harness routing
5-3
Starboard
D
EE
D
1
1
1
1
2
34
5
11
9
10
9
6
7
8
C
C
B
A
BA
C-C D-D E-E
1. Fuel injector
2. Knock sensor
3. Intake air pressure/temperature sensor
4. ISC valve
5. TPS
6. Cooling water hose
7. Thermo sensor lead
8. Shift position switch lead
9. Knock sensor lead
10. Wire harness
11. Vapor gas hose
A. Tiller handle model
B. Remote control model
