6.8 Performing User-Defined Computations (Option)

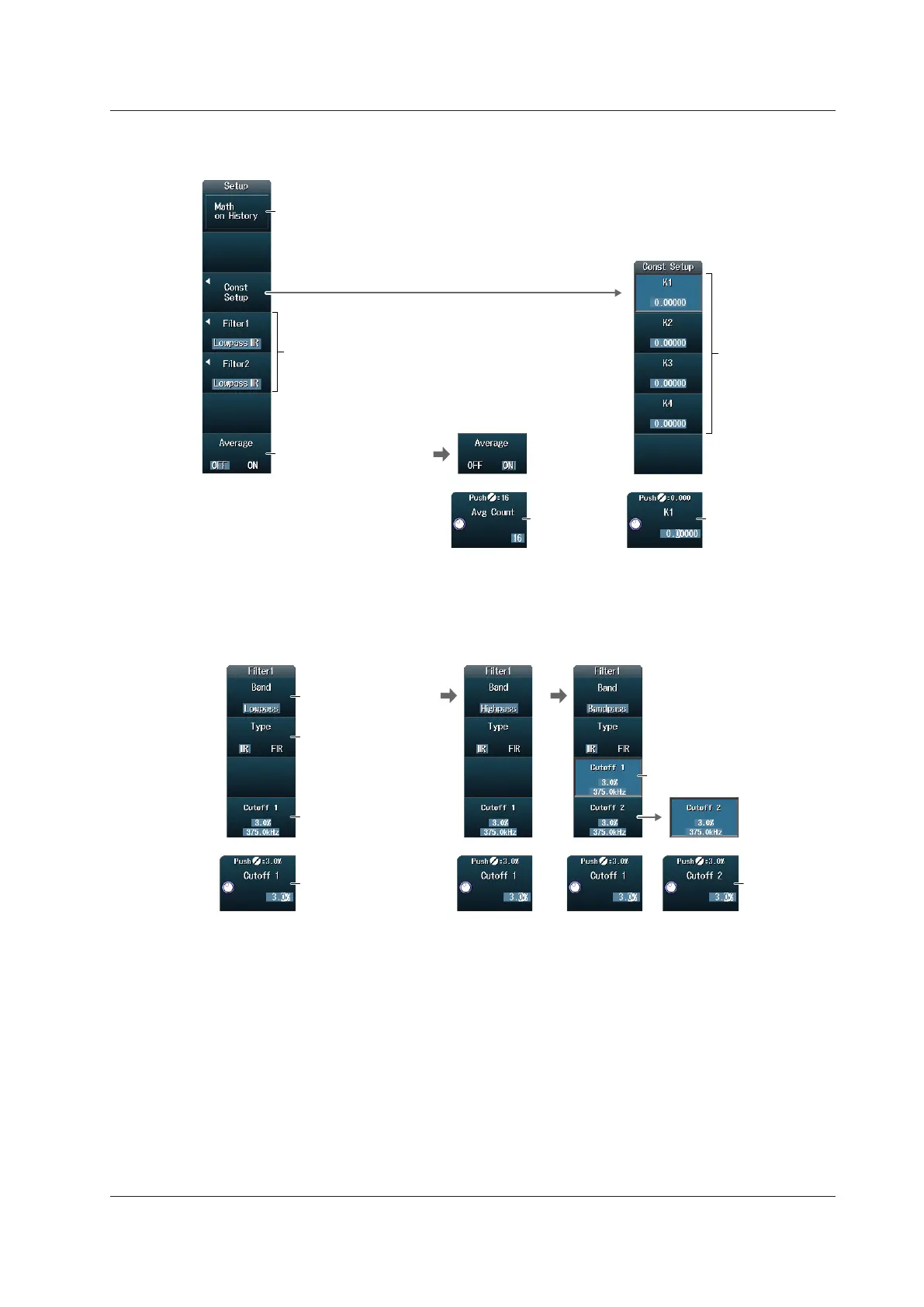

Setting Computation Conditions (Setup)
Press the Setup soft key to display the following menu.
Set the digital filters.
Set the value
of the constant.
Set the number
of values to
average.
Perform computations on past waveforms.
Set K1 to K4.
When Averaging
Is On
Define constants.
Turns averaging on and off
(This setting is the same for
Math1 to Math4.)
Setting Digital Filters (Filter1 and Filter2)
Press the Filter1 or Filter2 soft key to display the following menu.
When Band Is
Set to Lowpass
When Band Is
Set to Highpass
When Band Is
Set to Bandpass
Set the filter type
(IIR, FIR).
Set the frequency band
(Lowpass, Highpass,
Bandpass).
Set the cutoff
frequency.
Set the cutoff frequency.
Set Cutoff 1. Set Cutoff 2.
* Cutoff 2 is only set when Band is set to Bandpass.
