2.19 Triggering on a TV Trigger
This section explains the following settings (which are used when triggering on a TV trigger).
• Broadcasting system
• Source
Polarity, line number, field number, frame skip, and the level used to detect source states
• Definition
• Horizontal sync frequency
• Sync guard frequency
► “TV Trigger [ENHANCED]” in the Features Guide

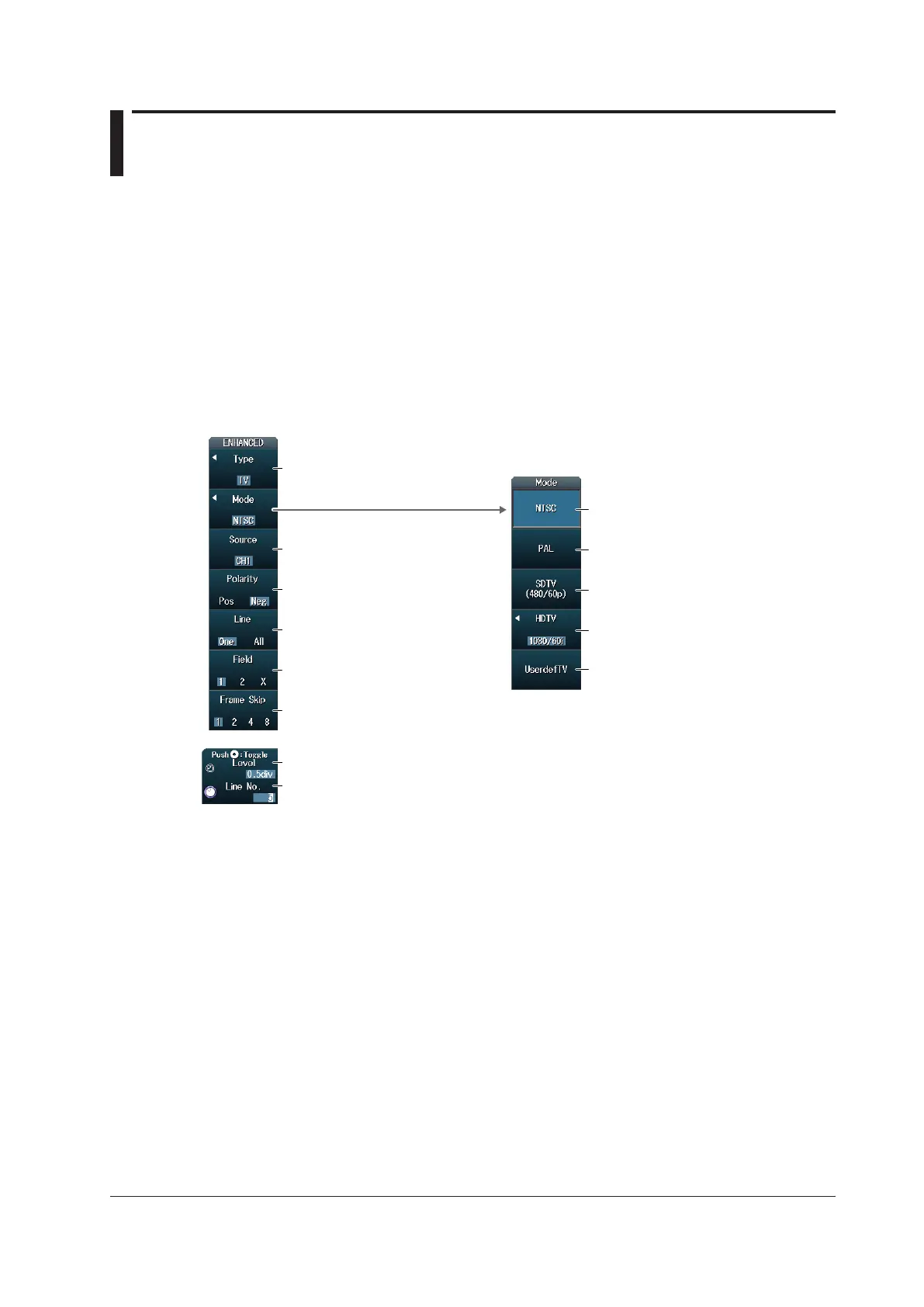

ENHANCED TV Menu
Press ENHANCED and then the Type soft key. From the setup menu that appears, select TV to
display the following menu.
Set the line number (One, All).
Set the trigger type to TV.
Set the source (CH1 to CH8).
Set the polarity (Pos, Neg).
Set the broadcasting system.
PAL
SDTV (480/60p)
HDTV
UserdefTV
NTSC
Set the field number (1, 2, X).
1, 2
Set the frame skip (1, 2, 4, 8).
1
Set the level used to detect source states.
Set the line number.
1
1 You can set this when the line number is set to One.
2 You can set this only when the broadcasting system is set to NTSC, PAL, or HDTV (1080/60i,
1080/50i, 1080/24sF).
Broadcasting System (Mode)
NTSC
Press the Mode soft key and then the NTSC soft key.
The DLM4000 triggers using the specified field and line of the NTSC signal as trigger conditions.
PAL
Press the Mode soft key and then the PAL soft key.
The DLM4000 triggers using the specified field and line of the PAL signal as trigger conditions.
SDTV (480/60p)
Press the Mode soft key and then the SDTV(480/60p) soft key.
The DLM4000 triggers using the specified line of the SDTV signal as trigger conditions.
