12.7 Analyzing and Searching PSI5 Airbag Signals
(Option)
This section explains the following settings (which are used when analyzing or searching PSI5 Airbag
signals):
• Serial bus signal analysis and search displays
• Serial bus signal types
• Analysis
Auto setup, sync signal, data frame source, bit rate, data length, error detection method, sync noise
rejection, clock tolerance, and the level and hysteresis used to detect the sync signal or data frame
source state
• Decoded display
• List display
List size, display position, and zoom linking
• Trend display
Source, display, cursor measurement on/off, auto scale
• Zoom position
• Analysis number
• Search
Zoom window, search type, and search execution
► “Analyzing and Searching Serial Bus Signals” and
“Analyzing and Searching PSI5 Airbag Signals (Option)”
in the Features Guide

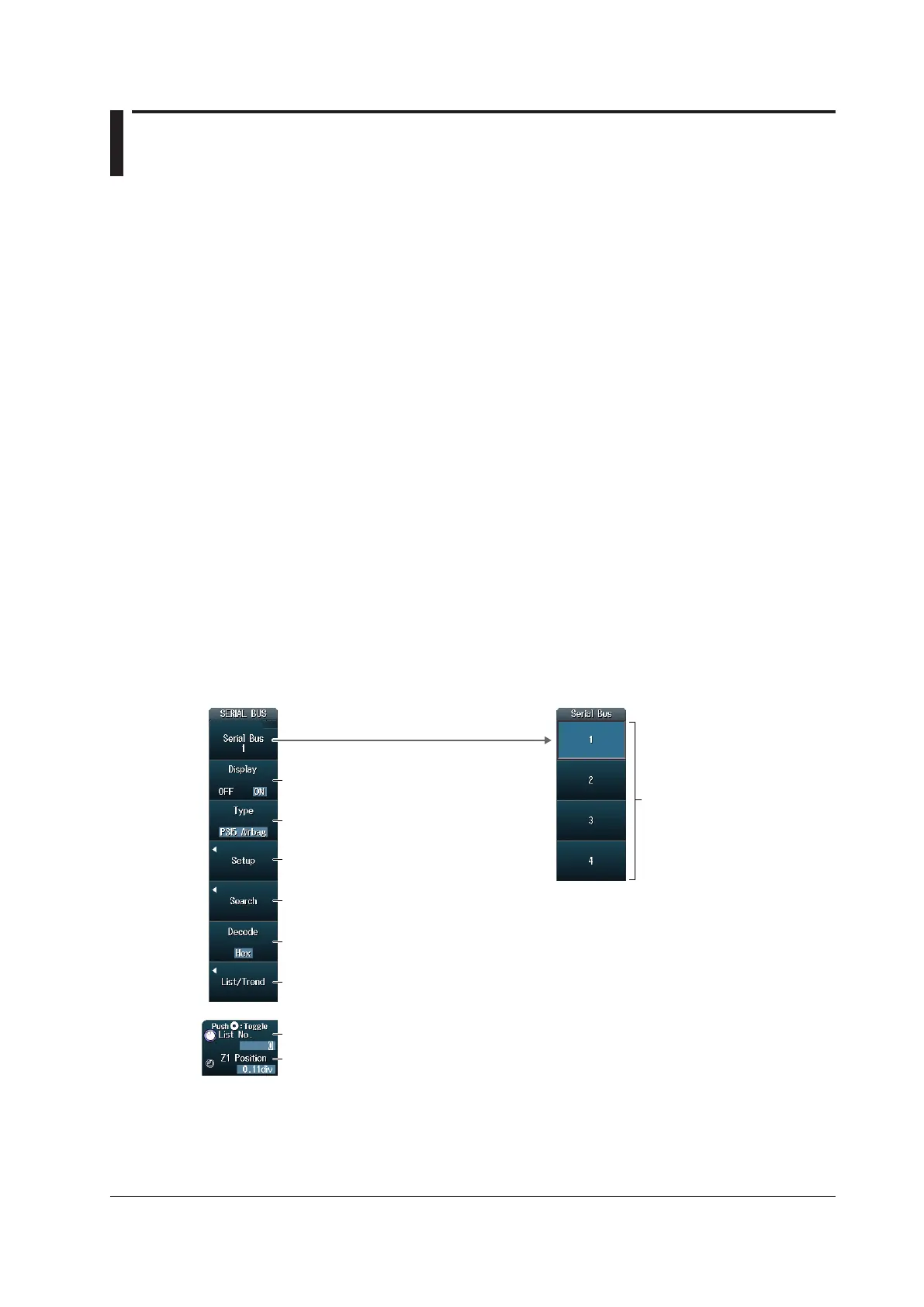

SEARCH PSI5 Airbag Menu
Press SHIFT+SEARCH (SERIAL BUS) and then the Type soft key. From the setup menu that appears,
select PSI5 Airbag to display the following menu.
Turns on or off the serial bus signal analysis
and search displays
Set the decode display (Hex, Dec, Bin).
Set the serial bus signal type to PSI5 Airbag.
Configure the list display and trend display.
Set the serial bus.
Configure the search.
Set the analysis number.
Set the zoom position.
This sets the zoom position for the window selected
during zoom window configuration (described later).
Select which serial bus to set
(Serial Bus1 to Serial Bus4).
To Next Page
