YOKOGAWA DLM4000 Series - Analyzing and Searching LIN Bus Signals (Option)

12-13
IM DLM4038-02EN
12.4 Analyzing and Searching LIN Bus Signals
(Option)
This section explains the following settings (which are used when analyzing or searching LIN bus
signals).
• Serial bus signal analysis and search displays
• Serial bus signal types
• Analysis
Auto setup, source, bit rate, revision, sample point, the level used to detect the source state, and
hysteresis
• Decode display
• List display
List size, display position, and zoom linking
• Zoom position
• Analysis number
• Search
Jumping to the specified field, zoom window, search type, and search execution
► “Analyzing and Searching Serial Bus Signals” and
“Analyzing and Searching LIN Bus Signals (Option)”
in the Features Guide

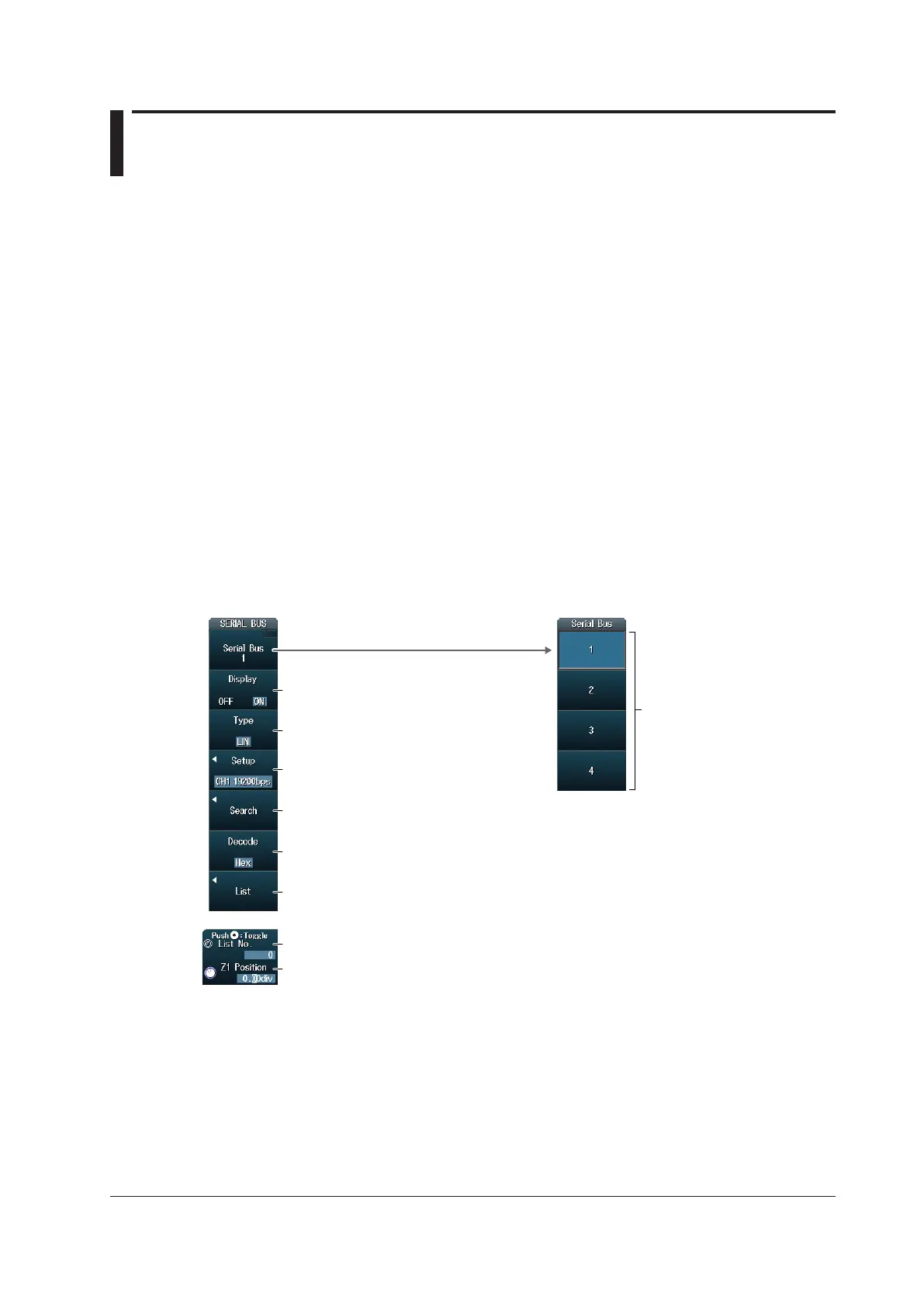

SEARCH LIN Menu
Press SHIFT+SEARCH (SERIAL BUS) and then the Type soft key. From the setup menu that appears,
select LIN to display the following menu.
Turns on or off the serial bus signal analysis
and search displays
Set the decode display (Hex, Bin).
Set the serial bus signal type to LIN.
Configure the list display.
Set the serial bus.
Configure the search.
Set the analysis number.
Set the zoom position.
This sets the zoom position for the window selected
during zoom window configuration (described later).
Select which serial bus to set
(Serial Bus1 to Serial Bus4).
