16.2 Printing on the Built-in Printer (Option)
This section explains the following settings (which are used when printing on the optional built-in
printer).
• Print destination
• Print mode
• Additional information
• Comments
• Magnification
• Time range
► “Printing on the Built-in Printer (Built-in)” in the Features Guide

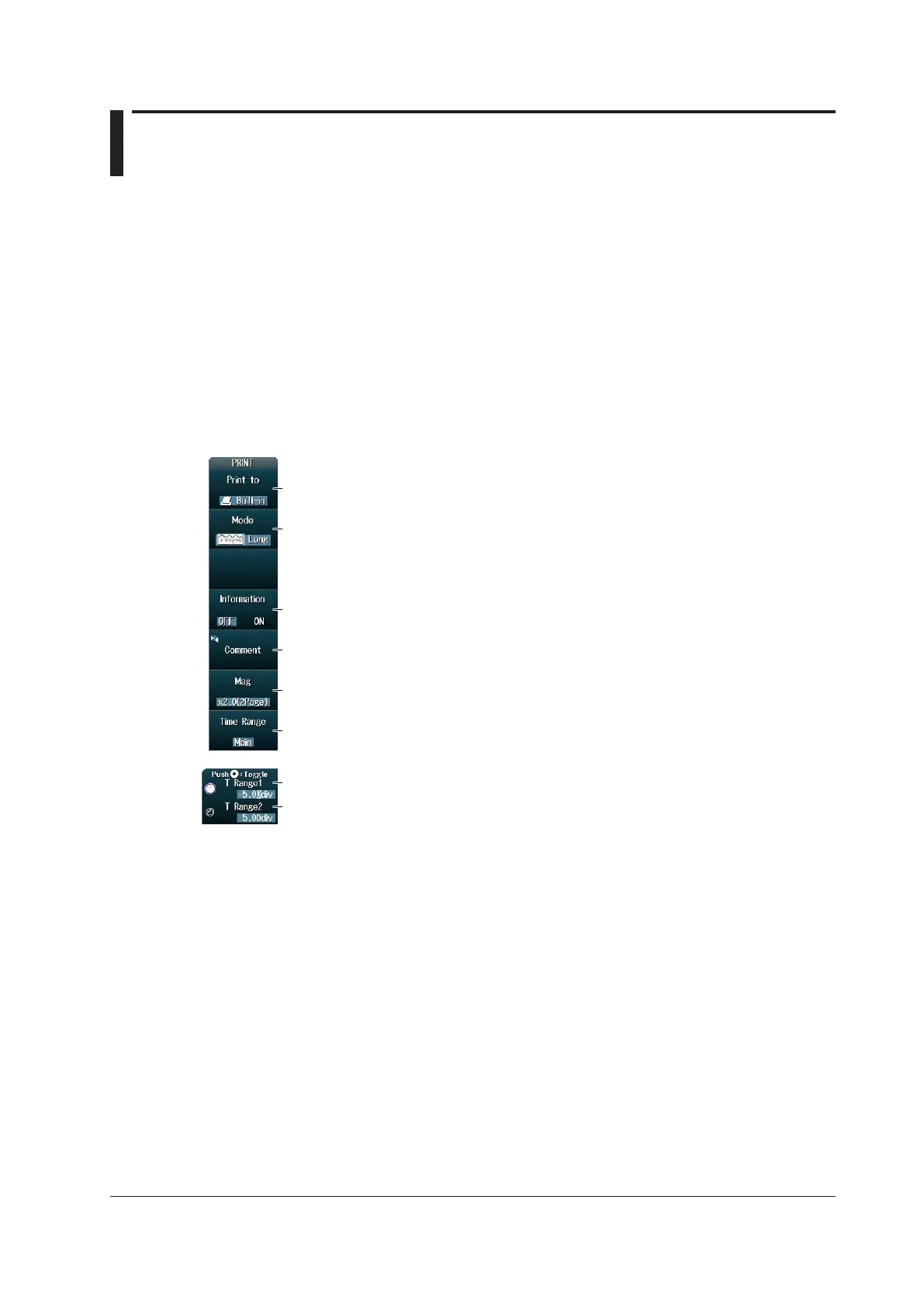

PRINT Built-in Menu
Press SHIFT+PRINT (MENU), the Print to soft key, and then the Built-in soft key to display the
following menu.
* This is displayed when the print mode is set to Long.
Set the print destination to Built-in.
Set the print mode.
Turn the printing of additional information on or off.
Specify comments.
Set the magnification
(x2.0(2Page), x5.0(5Page), x10.0(10Page)).
*
Set the print source window
(Main, Zoom1, Zoom2).
Set the time range.
*
• T Range1
• T Range2
Setting the Print Mode (Mode)
Hardcopy: The entire DLM4000 screen is printed.
Normal: The waveform area of the DLM4000 screen is printed. The menu is not printed.
Long: As in Normal mode, the entire DLM4000 screen is printed, but the time axis is magnified
from 2 to 10 times. The selectable magnification settings vary depending on the TIME/div
and record length values.
