YOKOGAWA DLM4000 Series - Triggering on Pulse Width

2-11
IM DLM4038-02EN
2.7 Triggering on Pulse Width
This section explains the following settings (which are used when triggering on pulse width).
• Trigger source
Polarity
• Time width mode
Reference time
► “Pulse Width Trigger [ENHANCED]” in the Features Guide

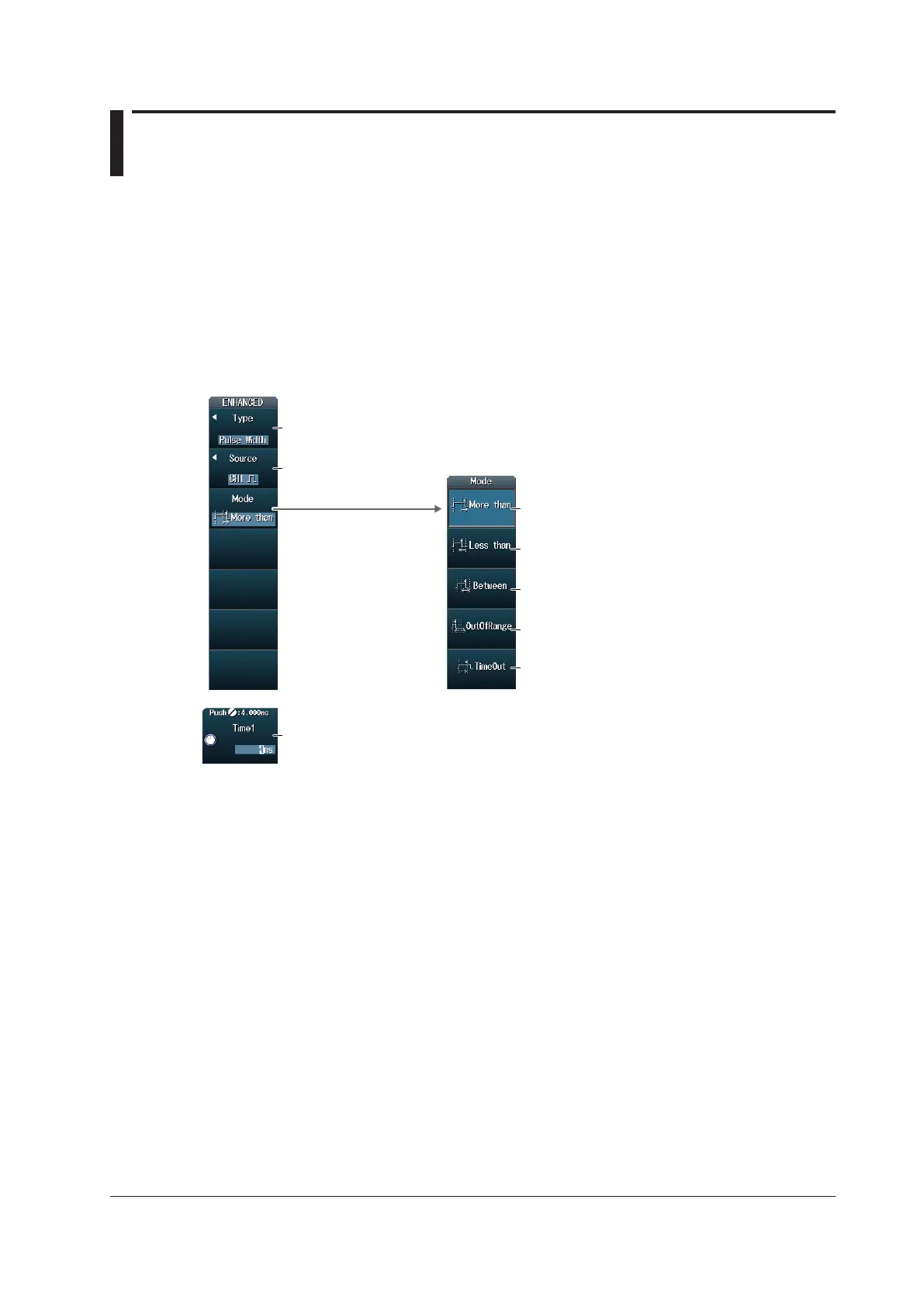

ENHANCED Pulse Width Menu
Press ENHANCED and then the Type soft key. From the setup menu that appears, select Pulse
Width to display the following menu.
Set the trigger type to Pulse Width.
Set the trigger source.
Set the reference time.
Set the time width mode.
Less than
Between
OutOfRange
TimeOut
More than
