13.2 Measuring Histogram Parameters
This section explains the following settings (which are used when measuring histogram parameters).
• Measurement mode
• Measurement items
• Cursor measurement
► “Measurement (Measure Setup)” in the Features Guide

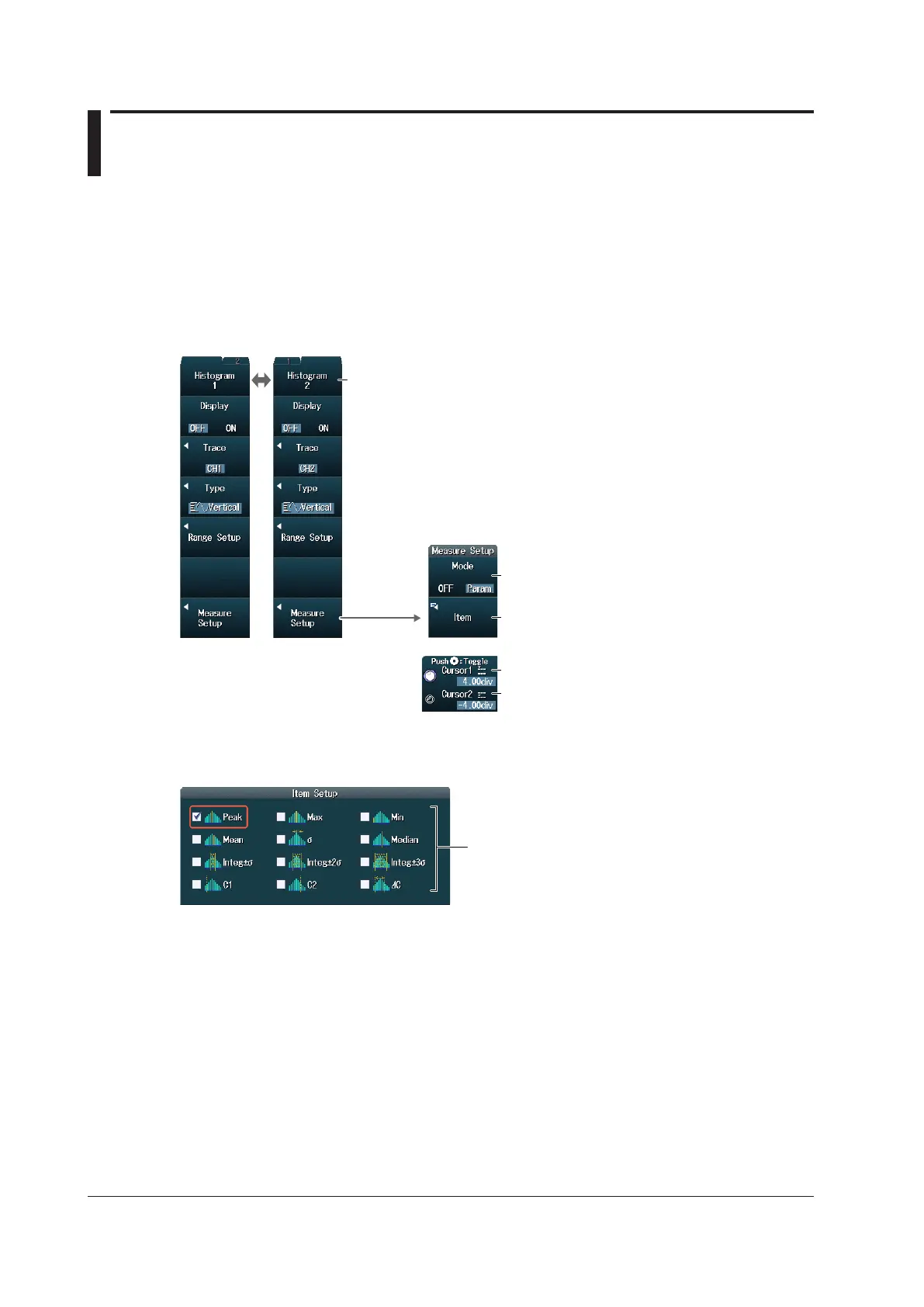

ANALYSIS Histogram Menu
Press ANALYSIS and then the Histogram soft key to display the following menu.
Configure parameter or cursor measurements.
Set measurement items.
(This menu item only appears when the
measurement mode is set to Param.)
Set the measurement mode.
Set the cursor positions.
• Cursor1
• Cursor2
Select whether to set Histogram1 or Histogram2.
Setting Measurement Items (Item)
Press the Item soft key to display the following screen.
Select the measurement items that you want to use.
