2.6 Triggering on State Conditions
This section explains the following settings (which are used when triggering on state conditions).
• State condition
Clock source and the Level used to detect the pattern
• Logic combination
• Trigger condition
► “State Trigger [ENHANCED]” in the Features Guide
ENHANCED State Menu

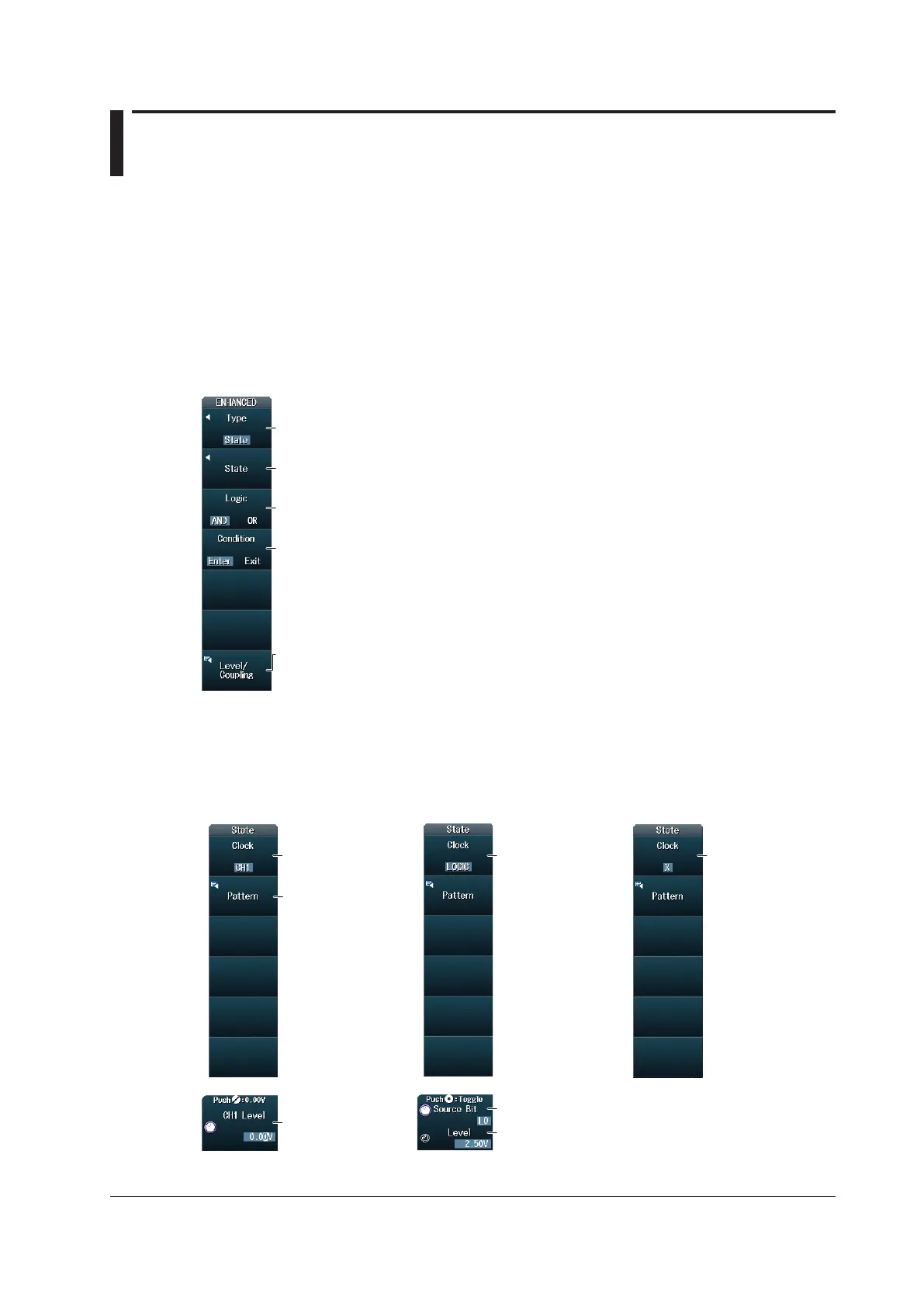

Press ENHANCED and then the Type soft key. From the setup menu that appears, select State to
display the following menu.
Set the trigger type to State.
Configure the state conditions.
Set the trigger condition (Enter, Exit).
Set the logic combination (AND, OR).
Set the trigger level, trigger coupling, HF rejection,
noise rejection, and the window comparator.
► section 2.4
Setting the State Conditions (State)
Press the State soft key to display one of the menus shown below. The menu that is displayed varies
depending on the specified clock source.
When the Clock Source Is a
Channel from CH1 to CH8
When the Clock Source
Is LOGIC
When the Clock Source
Is Not Specified
Set the clock source
(CH1 to CH8).
Set the clock source
(LOGIC).
Set the clock
source pattern.
Set the clock source
(X).
Set the level used to
detect the slope and
pattern of each
signal.
Set the source bit (L0 to L7, A0 to A7, B0 to B7).*
Set the level used to detect the slope
and pattern of each signal.
* A0 to A7 and B0 to B7 are available on models with the /L16 options.
