YOKOGAWA DLM4000 Series User Manual

2-63
IM DLM4038-02EN
2.20 Triggering on Combination Triggers (B TRIG)
This section explains the following settings (which are used when triggering on a combination trigger).
• Combination
• A trigger: condition A
• B trigger: condition B
• Delay time for condition B
• Number of times condition B must be met
► “Trigger B [B TRIG]” in the Features Guide

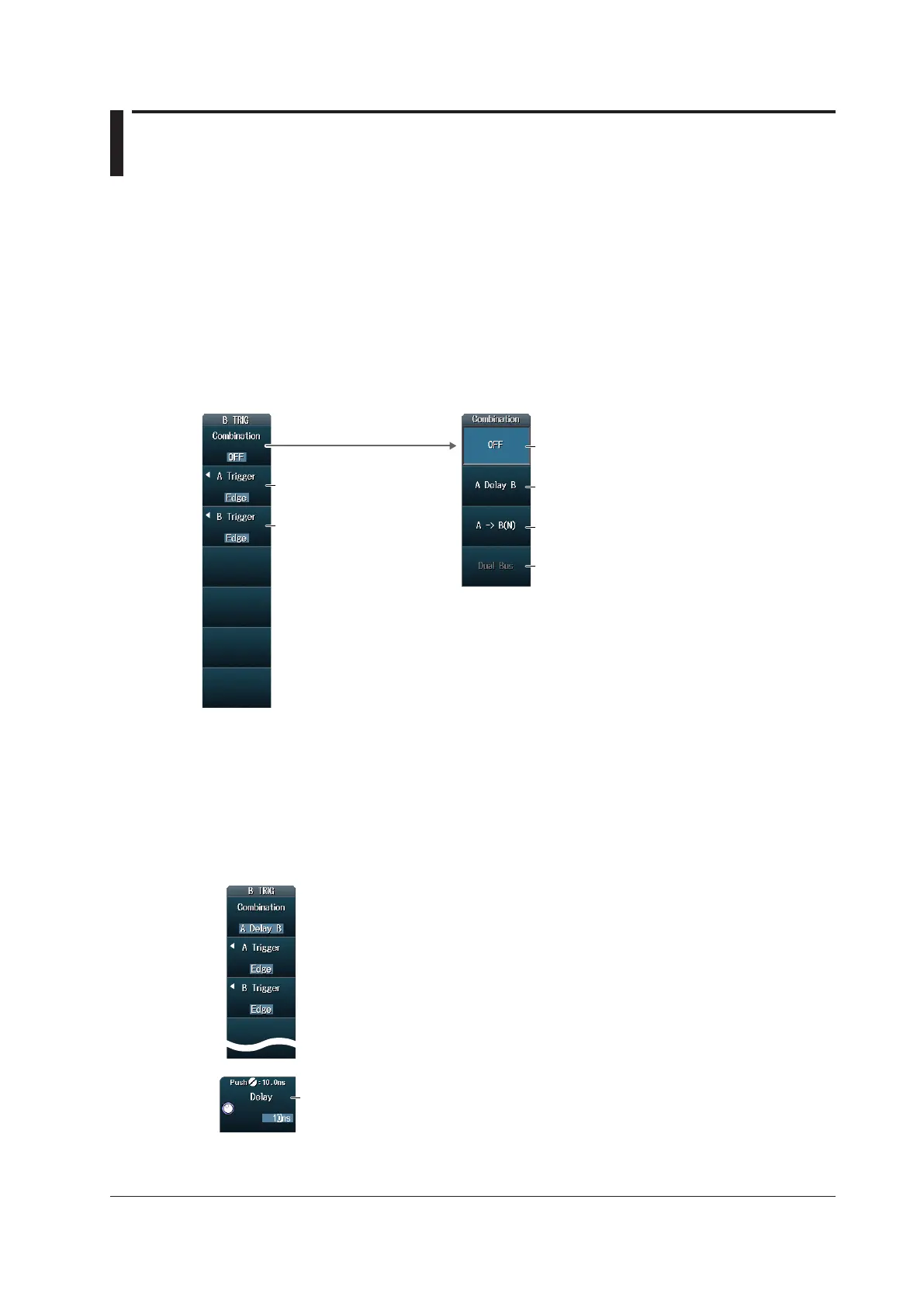

B TRIG Menu
Press B TRIG to display the following menu.
Set trigger A.
Set trigger B.
Set the combination.
A Delay B
A -> B(N)
OFF
Dual Bus
This is available when trigger A is set to
serial bus trigger (excluding PSI5 Airbag).
If trigger A is set to PSI5 Airbag of serial bus trigger, the
combination setting is fixed to OFF.
Setting the Combination (Combination)
OFF
Press the Combination soft key and then the OFF soft key.
The DLM4000 triggers when the trigger A conditions are met.
A Delay B
Press the Combination soft key and then the A Delay B soft key to display the following menu.
Set the delay time.
After the trigger A conditions are met and the specified amount of time (the delay time) elapses, the
DLM4000 triggers when the trigger B conditions are met.
