Setting the SDA source (SDA)

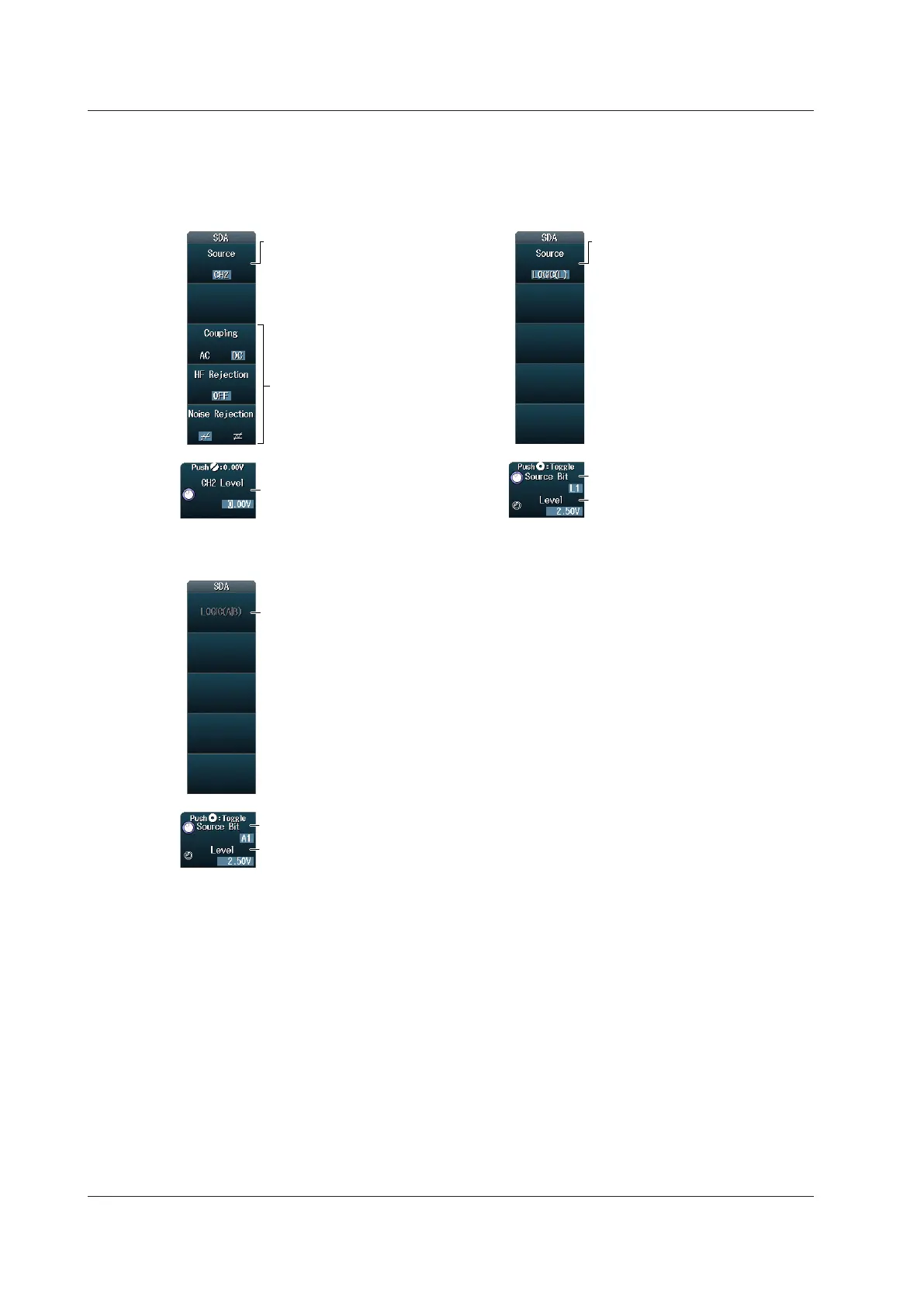

Press the SDA soft key to display one of the menus shown below. The menu that is displayed varies
depending on the specified source.
When the SDA Source Is a Channel from
CH1 to CH8
When the SDA Source Is
LOGIC(L)
Set the SDA source.
• When the SCL source is a channel
from CH1 to CH4, set the SDA source
to a channel from CH1 to CH4.
• When the SCL source is a channel
from CH5 to CH8 or LOGIC(L), set
the SDA source to a channel from
CH5 to CH8.
Set the SDA source (LOGIC(L)).
This setting can only be selected
when the SCL source is set to CH5
to CH7 or LOGIC(L).
Set the level used to detect SDA
source states.
Set the source bit (L0 to L7).
Set the level used to detect SDA
source states.
Set the trigger coupling, HF rejection,
and noise rejection.
► section 2.3
* You can select CH8 or LOGIC(L), depending on which channel’s corresponding key (CH8 or L) is illuminated.
When the SCL Source Is LOGIC(A|B)
The SDA source is fixed to LOGIC(A|B).
Set the source bit (A0 to A7, B0 to B7).
Set the level used to detect SDA source states.
* LOGIC(A|B) is available on models with the /L16 option.
