Chapter 8 Cursor Measurements
8.1 ΔT Cursor Measurements
This section explains the following settings (which are used when performing ΔTcursor
measurements).
• Cursor measurement
• Cursor type
• Source waveform
• Measurement items
• Cursor jumping
• Cursor position
► “ΔT Cursors (ΔT)” in the Features Guide

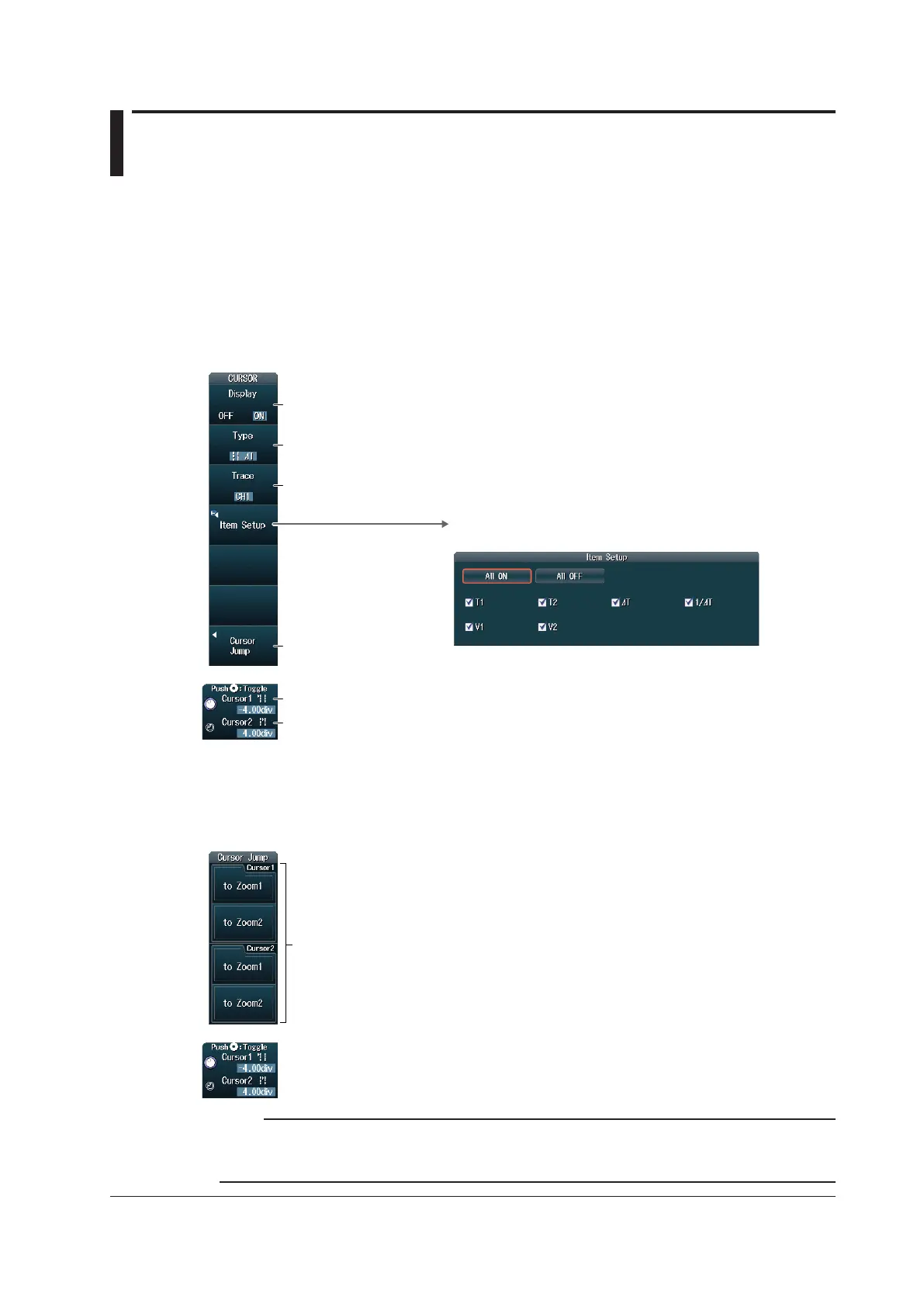

CURSOR Menu
Press CURSOR to display the following menu.
Set measurement items.
Select the measurement items that you want to use.
• Cursor1 position
Set the cursor position.
Turns cursor measurement on and off
Set the cursor type to ΔT.
Set the source waveform (All, CH1 to CH8, LOGIC(L),
*
LOGIC(A
|
B),
*
Math1 to Math4).
Cursor jumping
• Cursor2 position
* You can select CH8 or LOGIC(L), depending on which channel
’
s corresponding key (CH8 or L) is illuminated.
Specify the channel that you want to measure in advance by pressing either the CH8 key or the L key.
LOGIC(A|B) is available on models with the /L16 option.
Cursor Jumping (Cursor Jump)
Press the Cursor Jump soft key to display the following menu.
Specify a zoom window to make Cursor1
or Cursor2 jump to.
Note
Setting the Cursor Position
You can move Cursor1 and Cursor2 together by pressing SET repeatedly until the jog shuttle adjusts both of
them.
