YOKOGAWA DLM4000 Series User Manual

14-8
IM DLM4038-02EN
14.5 Measuring the Joule Integral
This section explains the following settings (which are used when measuring the Joule integral).
• Probe
• Measurement conditions
• Measurement window and measurement time period
• Joule integral waveform display
• Scaling
► “Joule Integral (I
2
t)” in the Features Guide

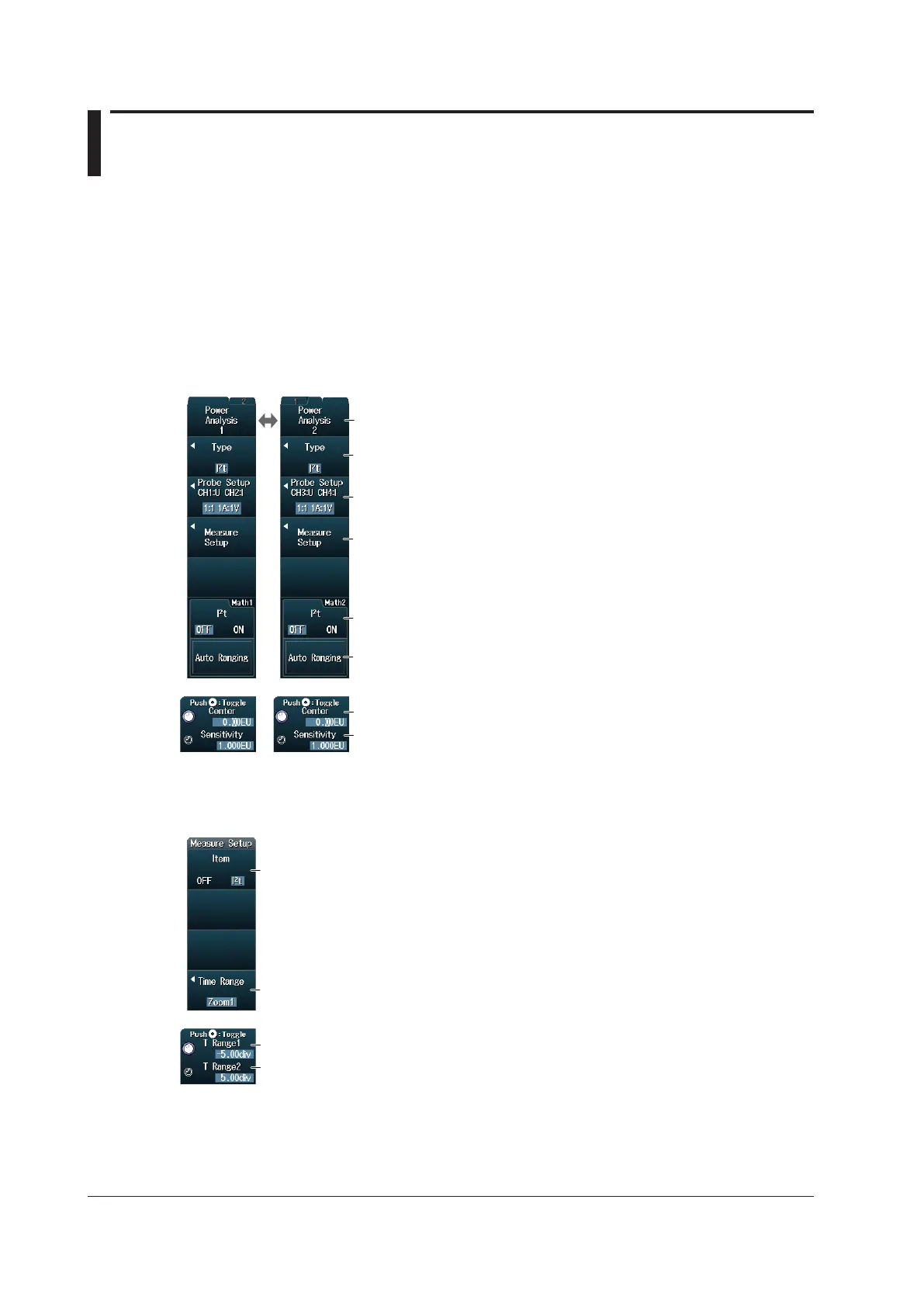

ANALYSIS Power Analysis Menu
Press ANALYSIS and then the Power Analysis soft key to display the following menu.
Select whether to set Power Analysis1 or Power Analysis2.
Set Type to I
2
t.
Shows and hides the Joule integral waveform
Configure the probe. ► section 14.2
Configure the center point and the sensitivity.
Set auto ranging.
Set the measurement conditions.
• Center point
• Sensitivity
Setting Measurement Conditions (Measure Setup)
Press the Measure Setup soft key to display the following menu.
Turns Joule integral on and off
Set the measurement source window. ► section 9.1
Set the area to be measured.
• T Range1
• T Range2
