15.2 Searching History Waveforms
This section explains the following settings (which are used when searching history waveforms).
• Search condition
• Reference condition numbers 1 to 4
Search criterion, search waveform, search range mode, and search window
• Executing searches
• Finishing searches
► “Searching History Waveforms (Search)” in the Features Guide
HISTORY Menu

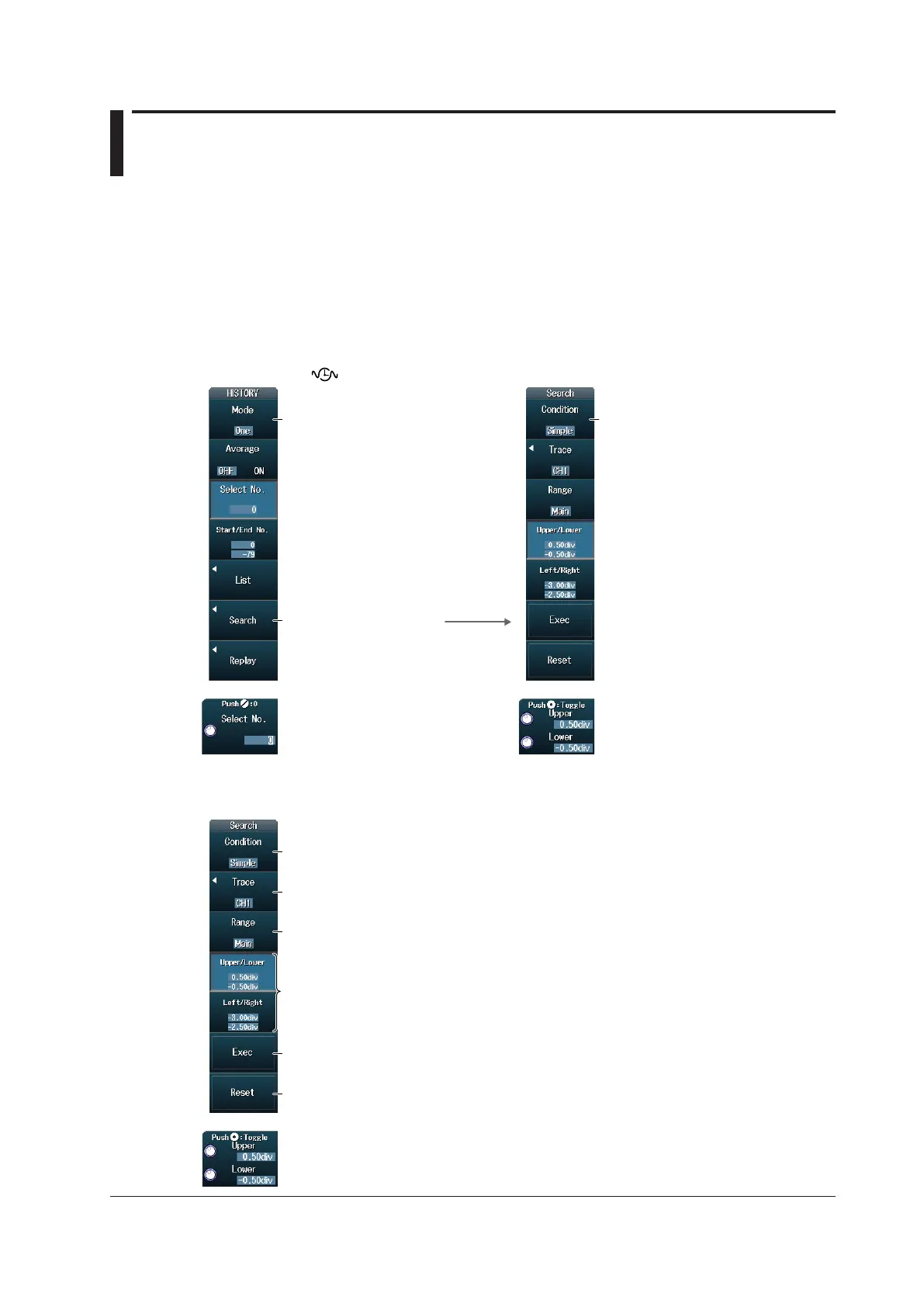

Press HISTORY ( ) to display the following menu.
Search history waveforms.
Set the display mode to One or All. Set the search condition
(Simple, AND, OR).
Setting the Search Condition and Searching
When the Search Condition Is Set to Simple
Executes the search
Finishes the search
Set the search condition (Simple).
Set the waveform to search (CH1 to CH8, Math1 to Math4, XY1 to XY4).
Set the search source window (Main, Zoom1, Zoom2).
Set the search range (rectangular zone).
You can set the search range mode in the same manner that you set the reference range type
for GO/NO-GO determination. See section 2.23, and read all instances of “determination” as
“search.”
