8.4 Marker Cursor Measurements (Marker)
This section explains the following settings (which are used when measuring with marker cursors).
• Cursor measurement
• Cursor type
• Marker display format
• The waveform to measure using the cursors
• Measurement items
• Cursor jumping
• Cursor position
► “Marker Cursors (Marker)” in the Features Guide

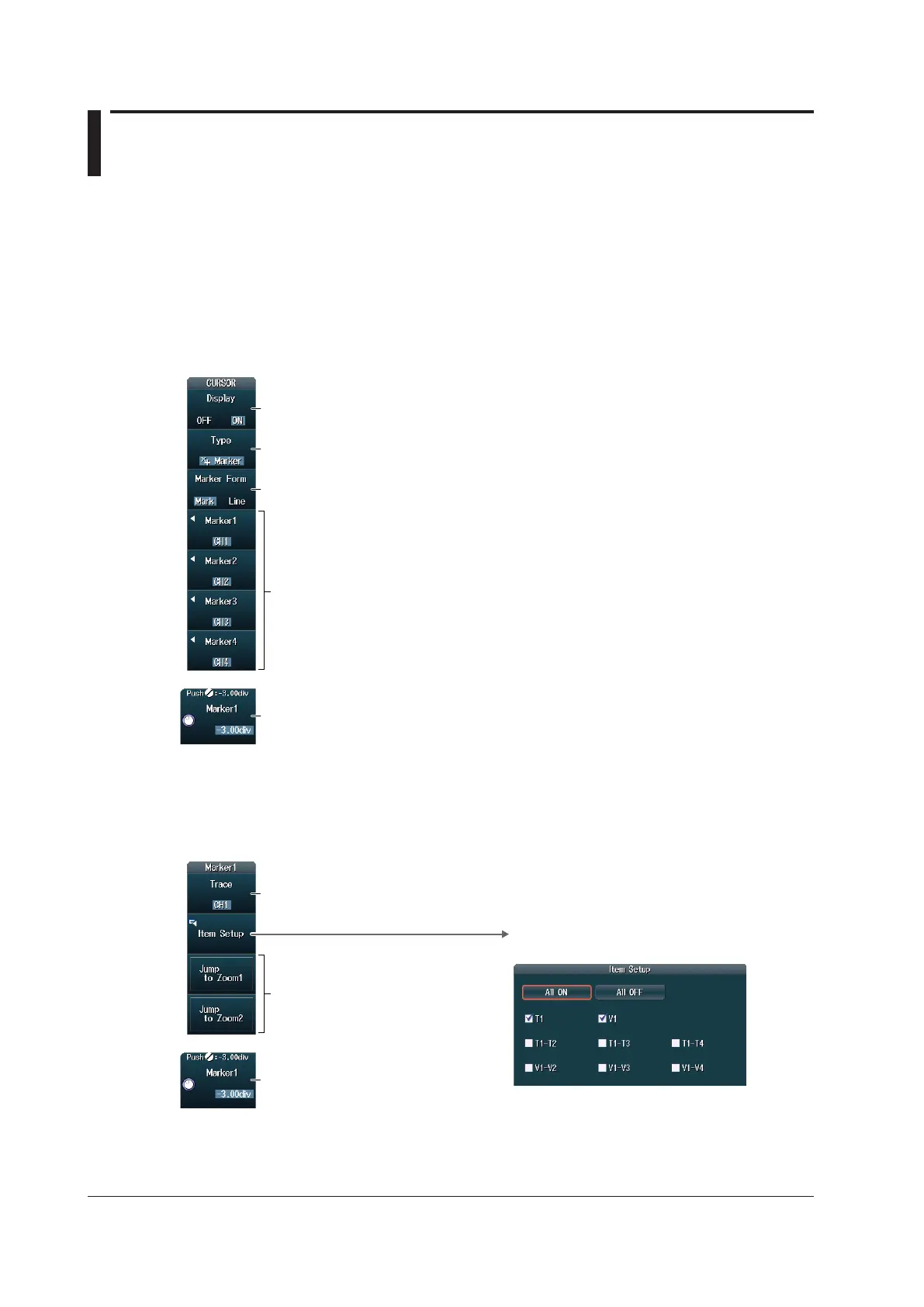

CURSOR Menu
Press CURSOR to display the following menu.
Turns cursor measurement on and off
Set the cursor type to Marker.
Set the marker display format (Mark, Line).
Set the source waveform and the measurement items
for the cursor.
Set the cursor position.
Selecting the Waveform to Measure and Setting the Measurement
Items (Marker1, Marker2, Marker3, and Marker4)
Press a soft key from Marker1 to Marker4 to display the following menu.
Example: When you press the Marker1 soft key
Set measurement items.
Select the measurement items that you want to use.
Set the cursor position.
► section 8.1
Set the source waveform (OFF, CH1 to CH8, Math1 to Math4).
Move the selected marker to the
Zoom1 or Zoom2 window.
