YOKOGAWA DLM4000 Series User Manual

2-42
IM DLM4038-02EN
2.14 Triggering on PSI5 Airbag Signals (Option)
This section explains the following settings for triggering on PSI5 Airbag signals.
• Trigger source (sync signal, data frame source)
Bit rate, level, data length, and error detection method used to detect source states
• Trigger type
Trigger condition
►“PSI5AirbagTrigger[ENHANCED,option]”intheFeaturesGuide
Auto Setup
The DLM4000 can automatically set the bit rate, data length, error detection method, level, and
hysteresis of the trigger source from the received PSI5 Airbag signal and trigger on them. For details,
see section 12.7.

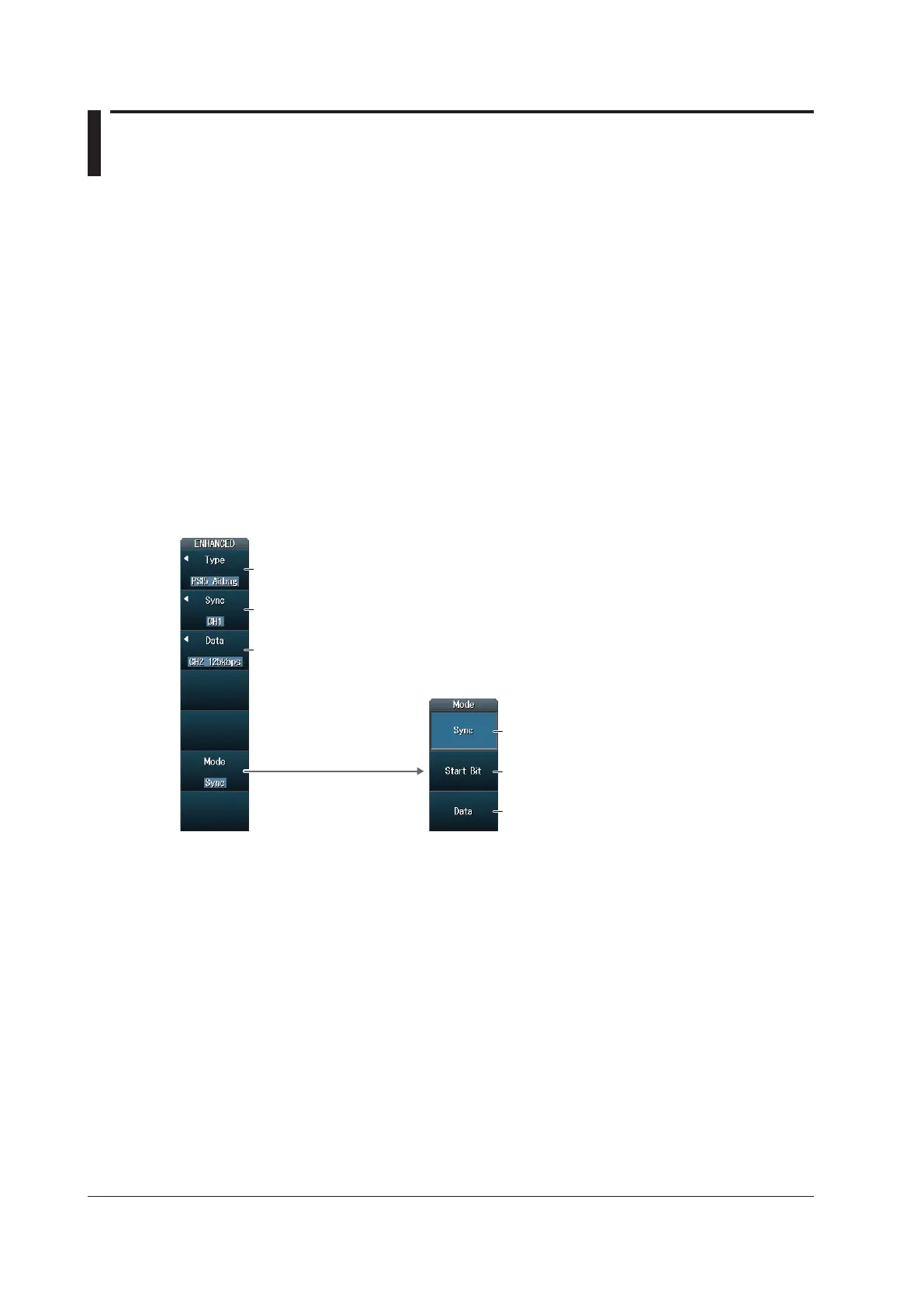

ENHANCED_PSI5 Airbag Menu
Press ENHANCED and then the Type soft key. From the setup menu that appears, select PSI5 Airbag
to display the following menu.
Set the trigger type to PSI5 Airbag.
Set the sync signal.
Set the data frame source.
Set the trigger type.
Data mode
Start bit mode
Sync mode
