12-24
IM DLM4038-02EN
12.6 Analyzing and Searching SENT Signals
(Option)
This section explains the following settings (which are used when analyzing or searching SENT signals).
• Serial bus signal analysis and search displays
• Serial bus signal types
• Analysis
Auto setup, source, format, display channel, fast channel data type, slow channel message type,
the level used to detect the source state, and hysteresis
• Decode display
• List display
List size, display position, and zoom linking
• Trend display
Source, display, cursor measurement on/off, auto scale
• Zoom position
• Analysis number
• Search
Zoom window, search type, and search execution
► “Analyzing and Searching Serial Bus Signals” and
“Analyzing and Searching SENT Signals (Option)”
in the Features Guide

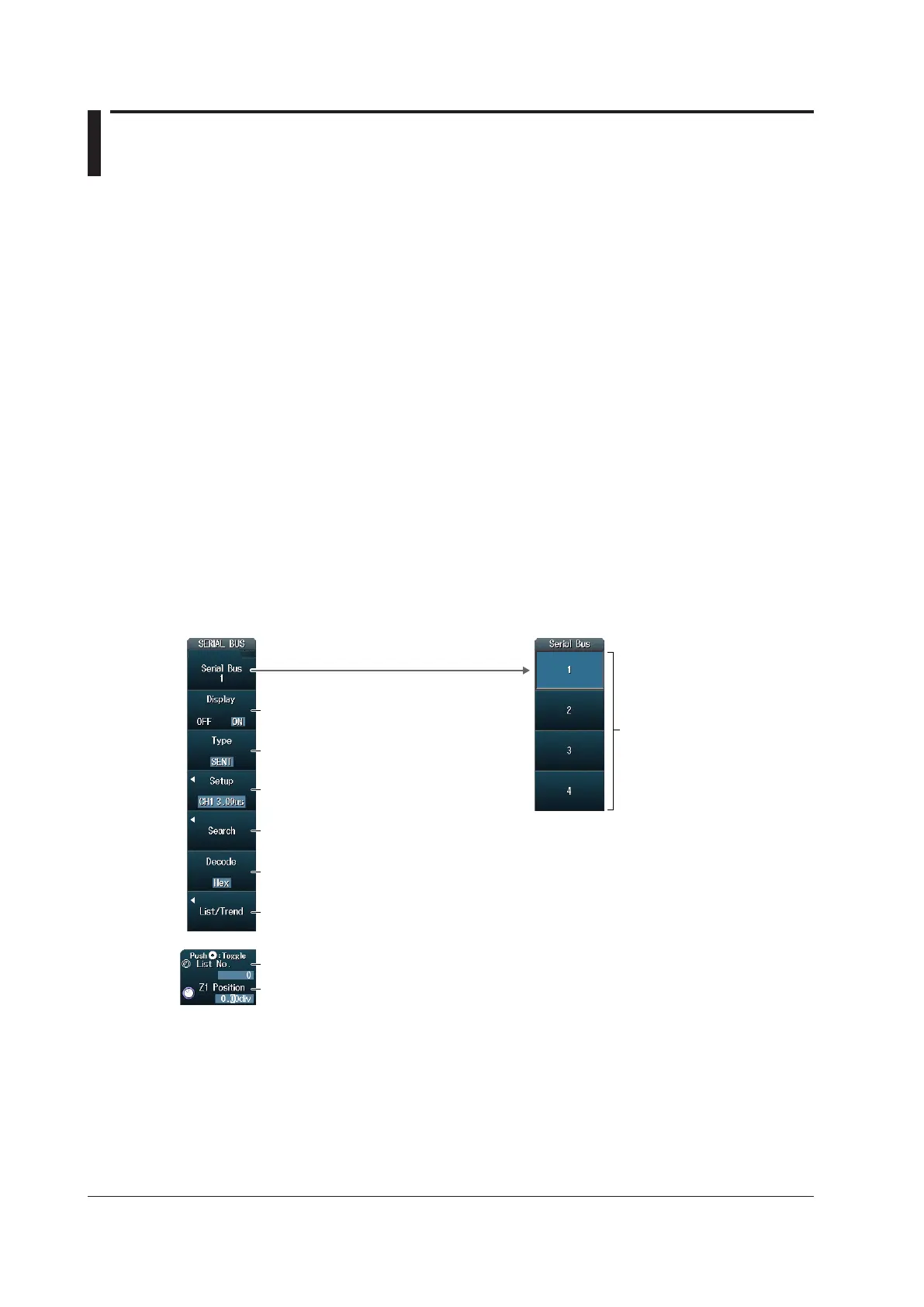

SEARCH SENT Menu
Press SHIFT+SEARCH (SERIAL BUS) and then the Type soft key. From the setup menu that appears,
select SENT to display the following menu.
Configure the list display and trend display.
Turns on or off the serial bus signal analysis
and search displays
Set the decode display (Hex or Bin).
Set the serial bus signal type to SENT.
Set the serial bus.
Configure the search.
Set the analysis number.
Set the zoom position.
This sets the zoom position for the window selected
during zoom window configuration (described later).
Select which serial bus to set
(Serial Bus1 to Serial Bus4).
To Next Page
