YOKOGAWA DLM4000 Series User Manual

5-1
IM DLM4038-02EN
Chapter 5 XY Display
5.1 Displaying XY Waveforms
This section explains the following settings (which are used when displaying XY waveforms).
• XY waveform display
• X-axis and Y-axis source waveforms
• VT waveform display and split display
• Display range
► “Displaying XY Waveforms” in the Features Guide

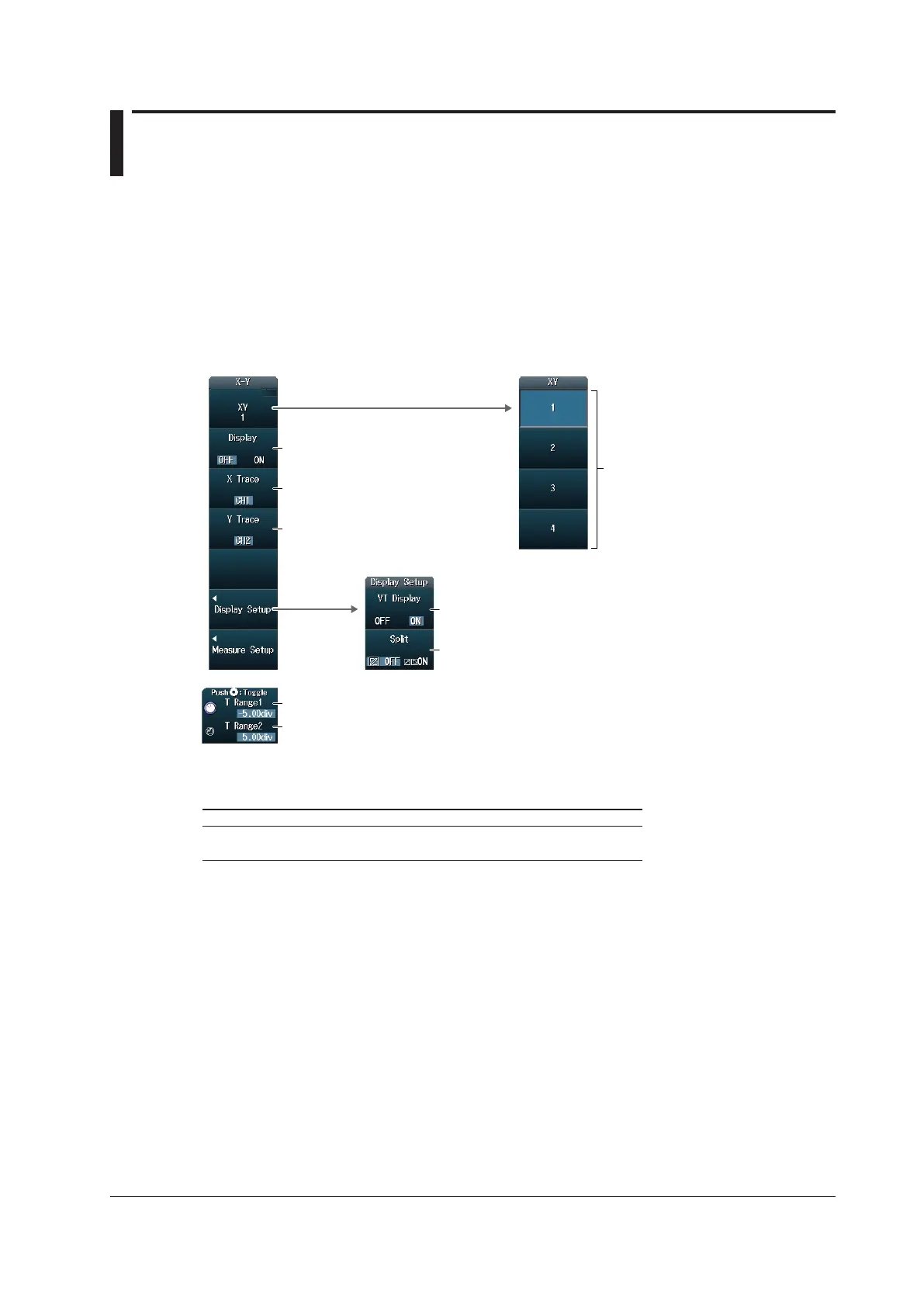

X-Y Menu
Press SHIFT+DISPLAY (X-Y) to display the following menu.
Turn the VT waveform display on or off.
Turn the split displays on or off.
Set the source waveform for the Y-axis.
Set the source waveform for the X-axis.
Turn XY waveform display on or off.
• Set the start point.
• Set the end point.
Configure the display range.
Display settings
Select which XY waveform from XY1
to XY4 to display.
Setting the X-Axis and Y-Axis Source Waveforms (X Trace/Y Trace)
The source waveforms that you can assign to the X-axis and Y-axis of XY waveforms are as follows:
XY Waveforms X-Axis and Y-Axis Source Waveforms
XY1 and XY2 CH1 to CH4, Math1, Math2
XY3 and XY4 CH5 to CH8, Math3, Math4
