2.11 Triggering on CAN FD Bus Signals (Option)
This section explains the following settings (which are used when triggering on CAN FD bus signals).
• Trigger source
Bit rate, data bit rate, recessive level, sample point, and the level used to detect the source state
• Trigger type
Trigger condition
► “CAN FD Bus Trigger [ENHANCED, option]” in the Features Guide
Auto Setup
The DLM4000 can automatically set the trigger source level and bit rate from the received CAN FD
bus signal and trigger on them. For details, see section 12.3.

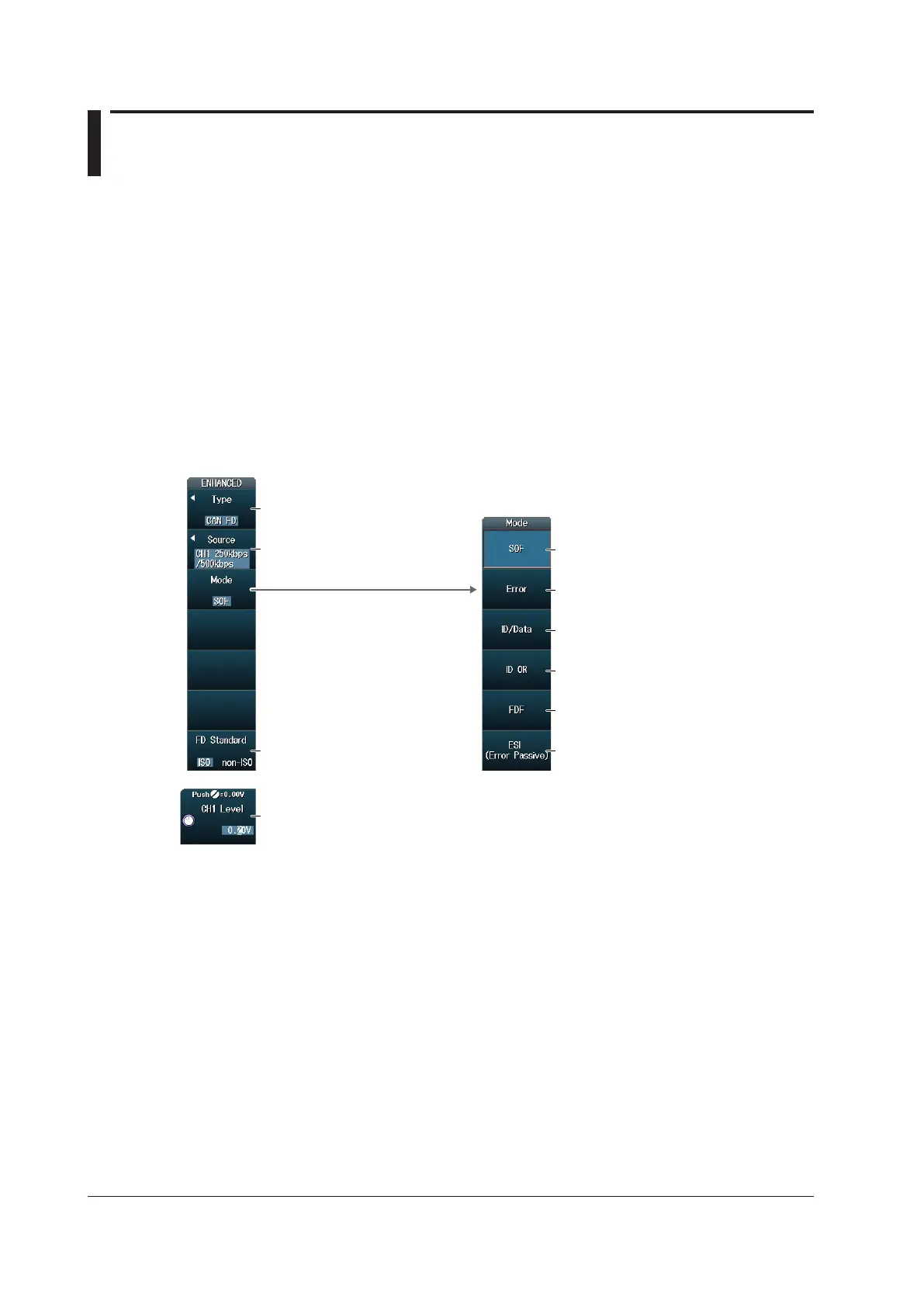

ENHANCED_CAN FD Menu
Press ENHANCED and then the Type soft key. From the setup menu that appears, select CAN FD to
display the following menu.
Set the CAN FD standard
(ISO, non-ISO)
Error mode
ID/Data mode
ID OR mode
FDF mode
ESI mode
SOF mode
Set the trigger type to CAN FD.
Set the trigger source.
Set the level used to
detect source states.
Set the trigger type.
