6-2
IM DLM4038-02EN
6.2 Performing Addition, Subtraction, and
Multiplication
This section explains the following settings (which are used when performing addition, subtraction, and
multiplication).
• Operators
• Computation source waveforms
► “Operators (Operation)” in the Features Guide

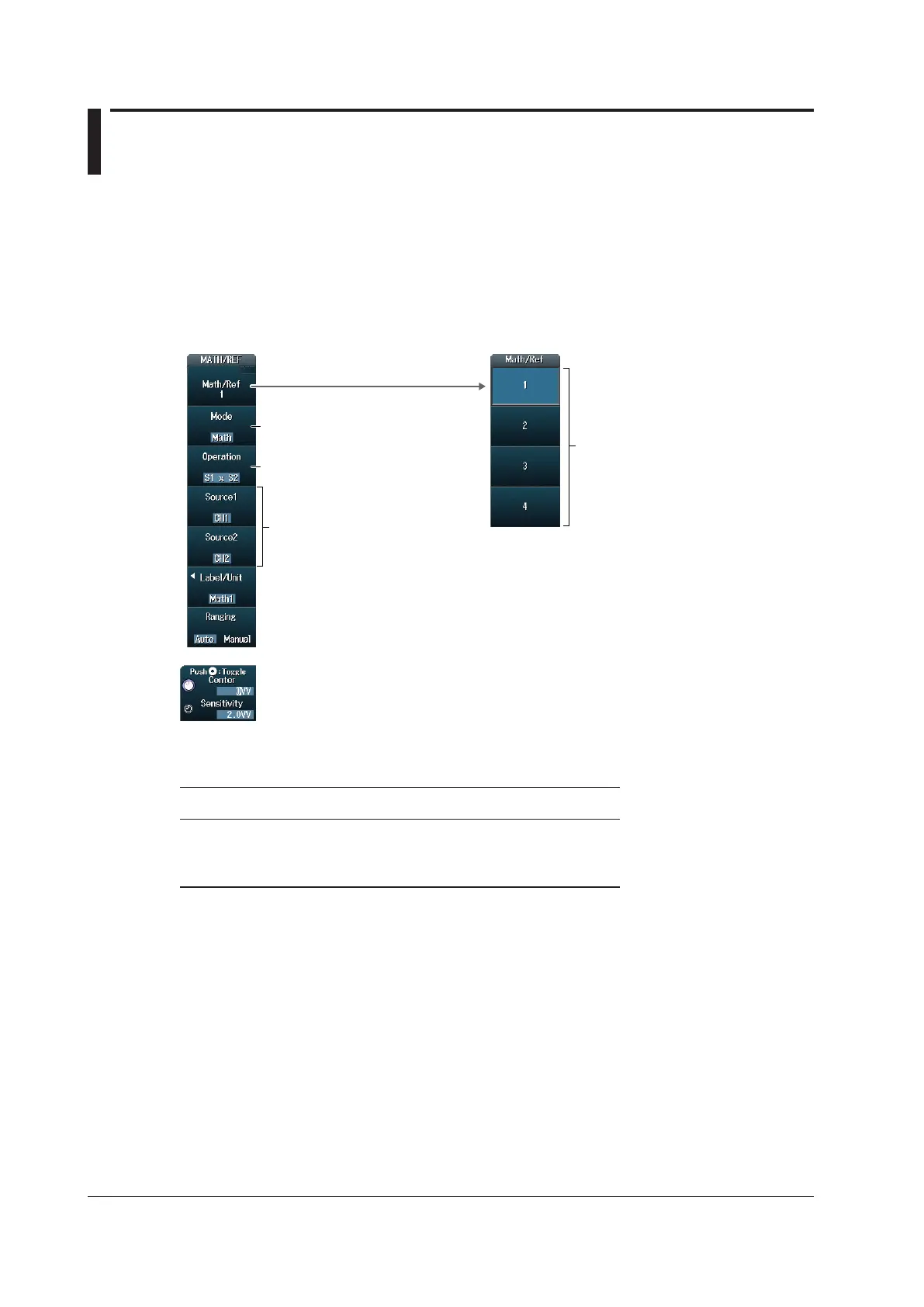

MATH/REF Menu
Press MATH/REF to display the following menu.
Set the computation source
waveform (see the table below).
Set the operator
(S1 + S2, S1 - S2, S1 × S2).
Set Mode to Math.
Specify the computed waveform
from among Math1 to Math4
that you want to configure.
Setting the Computation Source Waveform
The computation source waveforms that you can set for Source1 and Source2 are listed below.
Computed Waveforms That Display
Computation Results
Source1 or Source2
Math1 (Math/Ref1) CH1 to CH4
Math2 (Math/Ref2) CH1 to CH4 or Math1
Math3 (Math/Ref3) CH5 to CH8
Math4 (Math/Ref4) CH5 to CH8 or Math3
To Next Page
