2.10 Triggering on CAN Bus Signals (Option)
This section explains the following settings (which are used when triggering on CAN bus signals).
• Trigger source
Bit rate, recessive level, sample point, and the level used to detect the source state
• Trigger type
Trigger condition
► “CAN Bus Trigger [ENHANCED, option]” in the Features Guide
Auto Setup
The DLM4000 can automatically set the trigger source level and bit rate from the received CAN bus
signal and trigger on them. For details, see section 12.2.

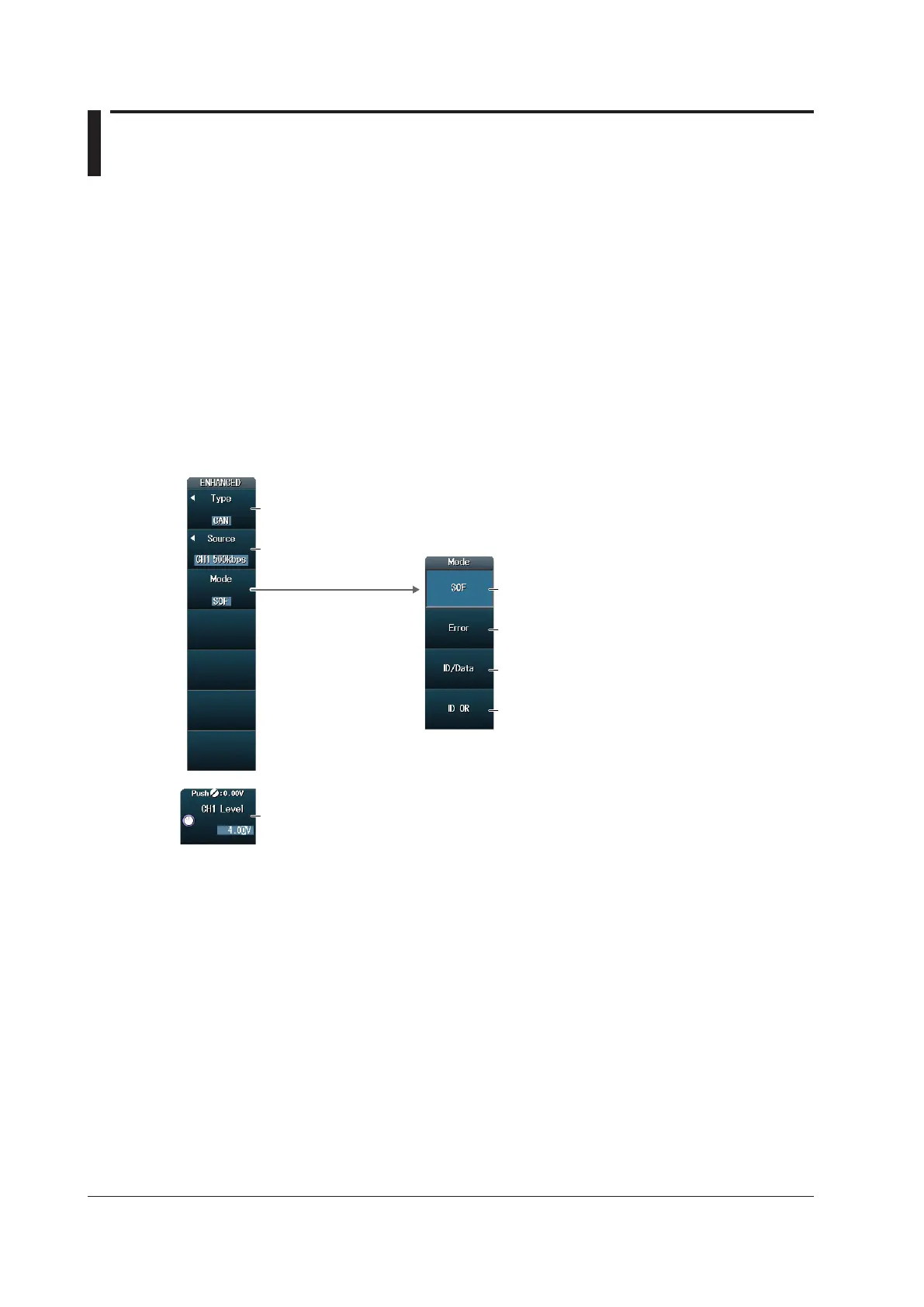

ENHANCED CAN Menu
Press ENHANCED and then the Type soft key. From the setup menu that appears, select CAN to
display the following menu.
Set the trigger type to CAN.
Set the trigger source.
Set the level used to
detect source states.
Set the trigger type.
Error mode
ID/Data mode
ID OR mode
SOF mode
