YOKOGAWA DLM4000 Series User Manual

12-39
IM DLM4038-02EN
12.8 Analyzing and Searching UART Signals
(Option)
This section explains the following settings (which are used when analyzing or searching UART
signals).
• Serial bus signal analysis and search displays
• Serial bus signal types
• Analysis
Auto setup, source, format, parity, grouping, the level used to detect the source state, and
hysteresis
• Decode display
• List display
List size, display position, grouping, detailed display, and zoom linking
• Zoom position
• Analysis and data numbers
• Search
Zoom window, search type, and search execution
► “Analyzing and Searching Serial Bus Signals” and
“Analyzing and Searching UART Signals (Option)”
in the Features Guide

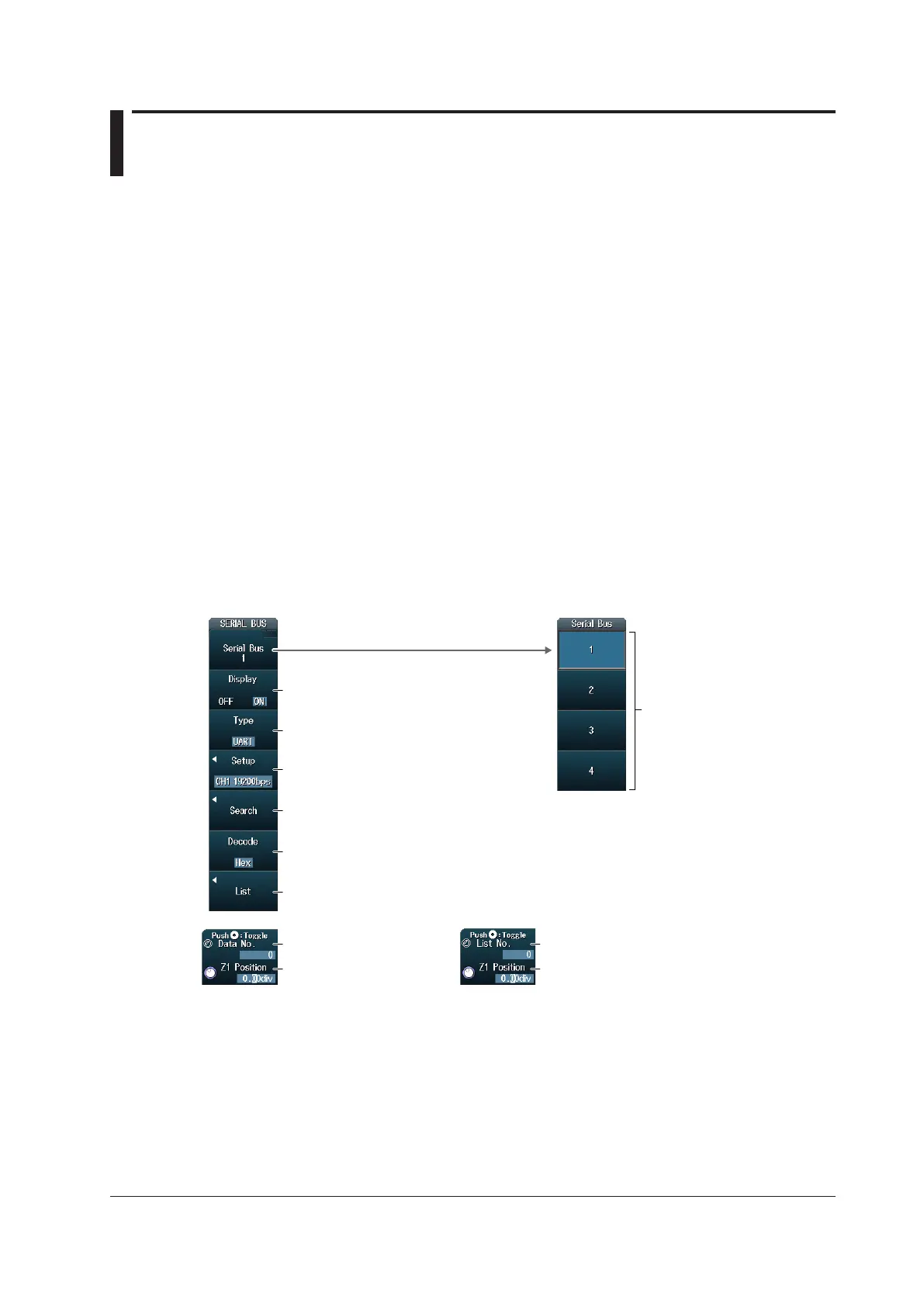

SEARCH UART Menu
Press SHIFT+SEARCH (SERIAL BUS) and then the Type soft key. From the setup menu that appears,
select UART to display the following menu.
Turns on or off the serial bus signal analysis
and search displays
Set the decode display (Hex, Bin, ASCII).
Set the serial bus signal type to UART.
Configure the list display.
Set the serial bus.
Configure the search.
• Set the zoom position.
This sets the zoom position for the window
selected during zoom window configuration
(described later).
• Set the analysis number.
Select which serial bus to set
(Serial Bus1 to Serial Bus4).
When Grouping Is Set to ON
* For details on turning grouping on and off, see “Setting the List Display (List)” (described later).
• Set the data number
• Set the zoom position.
When Grouping Is Set to OFF
