6.7 Loading Reference Waveforms
This section explains the following settings (which are used when loading reference waveforms).
• Loading reference waveforms
• Label
• Vertical position
► “Reference Waveforms” in the Features Guide
MATH/REF Menu

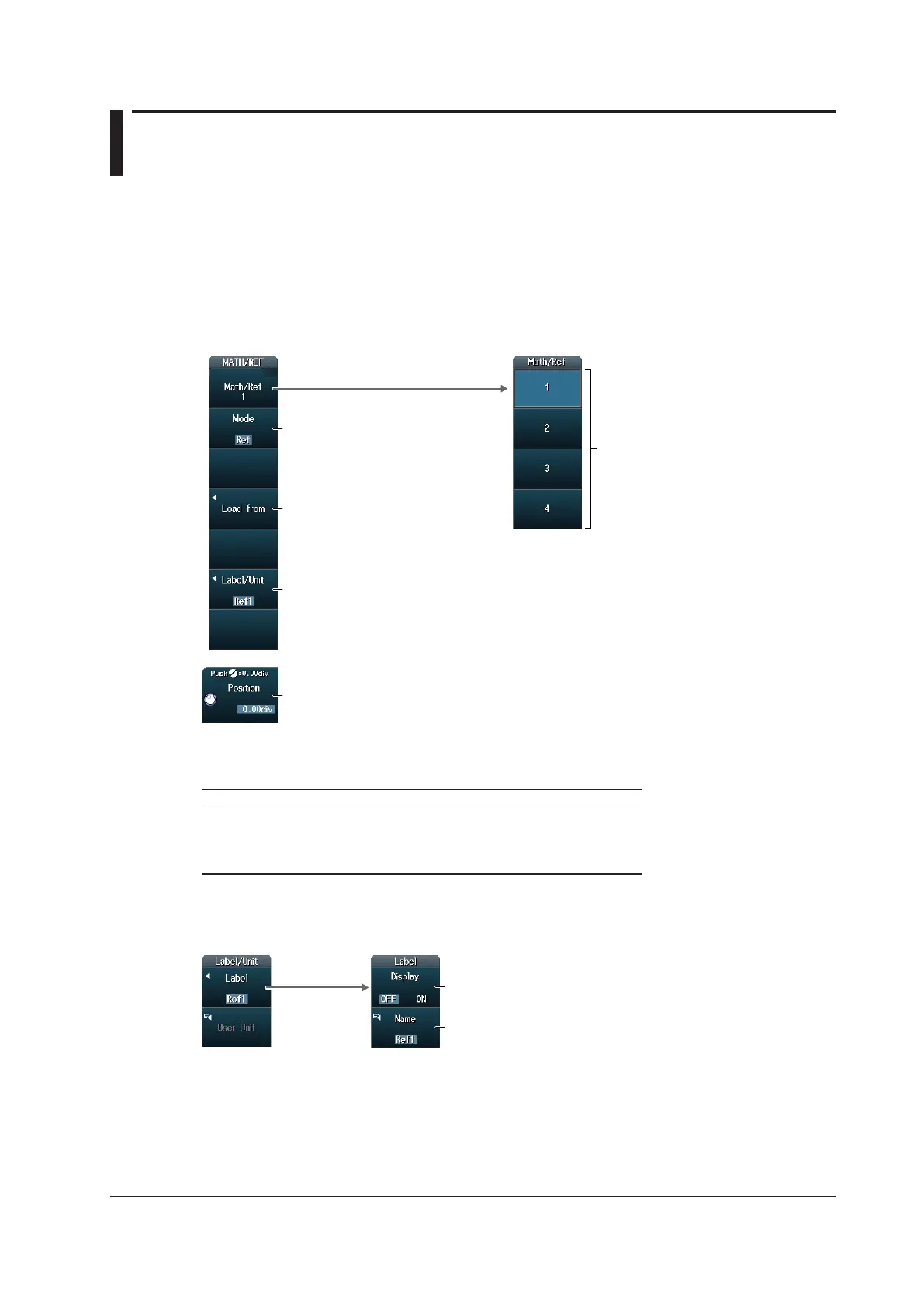

Press MATH/REF to display the following menu.
Load a reference waveform.
(See the table below.)
Set labels.
Set the vertical position.
Set Mode to Ref.
Select the reference waveform from
Ref1 to Ref4 that you want to set.
Loading the Reference Waveform (Load from)
Specify one of the following waveform channels to acquire the reference waveform from.
Reference Waveform Waveform Channel
Ref1 (Math/Ref1) CH1 to CH4
Ref2 (Math/Ref2) CH1 to CH4 or Math1
Ref3 (Math/Ref3) CH5 to CH8
Ref4 (Math/Ref4) CH5 to CH8 or Math3
Setting Labels (Label/Unit)
Press the Label/Unit soft key to display the following menu.
Turns labels on and off
Set the label.
