1.3 Setting the Vertical Axis for 16-bit LOGIC(A|B)
(Option)
This section explains the following settings (which are related to the vertical axis for LOGIC(A|B)
signals).
LOGIC(A|B) menu
• Turning the LOGIC(A|B) display on and off
• Turning the display on and off and setting the label, threshold level, and noise rejection for each bit
• Turning the Bus2 and Bus3 displays on and off and setting the bus bit assignments, labels, and
format
• Turning the state display on and off and setting the clock source; clock source polarity, detection
level, and hysteresis; and the state assignment
• Bit and bus display order
• Deskewing
SCALE knob
• Display size
POSITION knob
• Vertical position
► “Vertical Axis (Logic Signal)” in the Features Guide

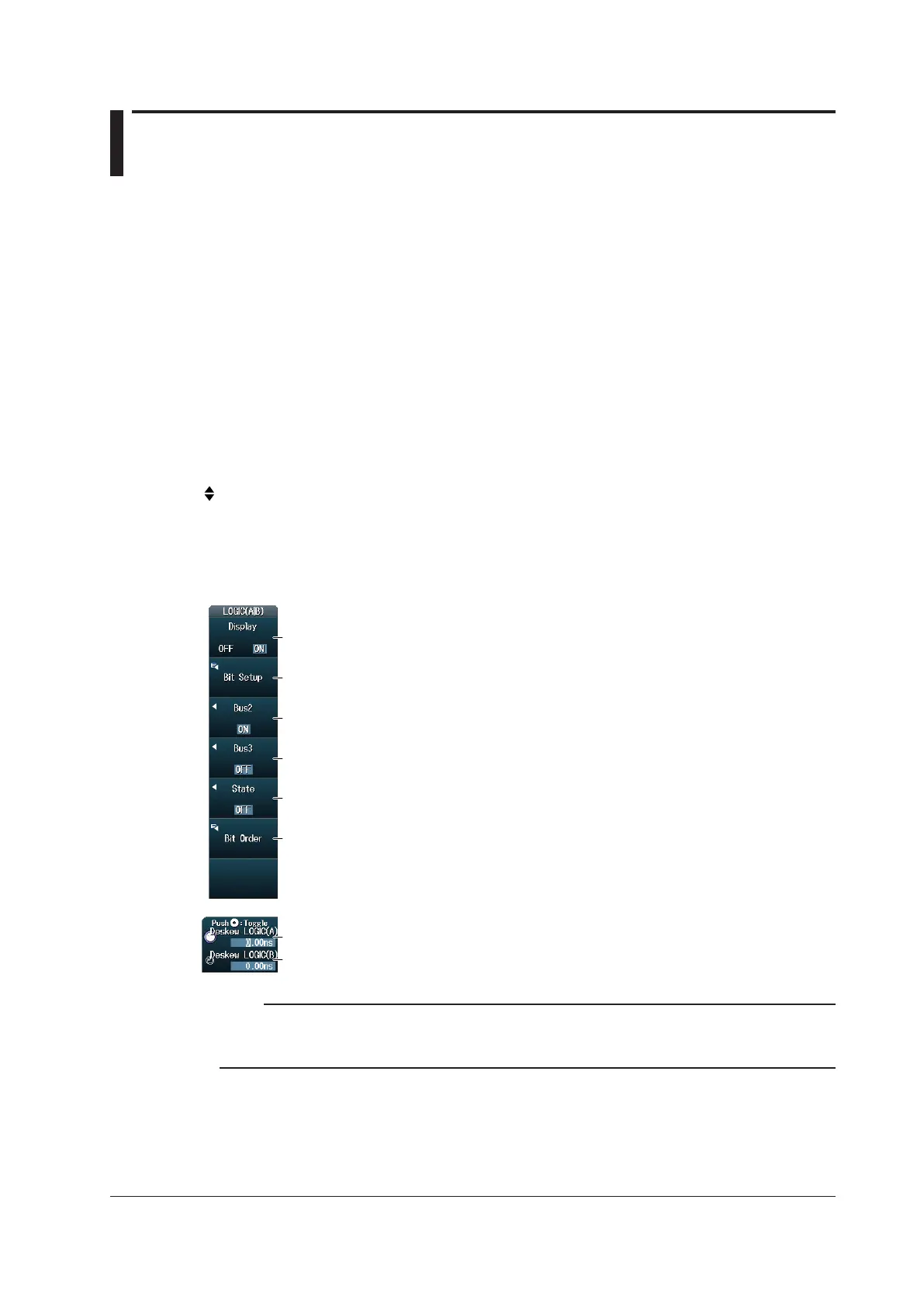

LOGIC(A|B) Menu
Press A|B to display the following menu.
Set Bus2.
Set Bus3.
• LOGIC(A|B)
• LOGIC(B)
Set the deskew value.
Set the bit and bus display order.
State settings
Set each bit.
Turns the LOGIC(A|B) display on and off
Note
• If you press the A|B key when it is not illuminated, the key illuminates, and the LOGIC(A|B) display turns
on.
• If you press the A|B key when it is illuminated, the key turns off, and the LOGIC(A|B) display turns off.
