iv
IM DLM4038-02EN

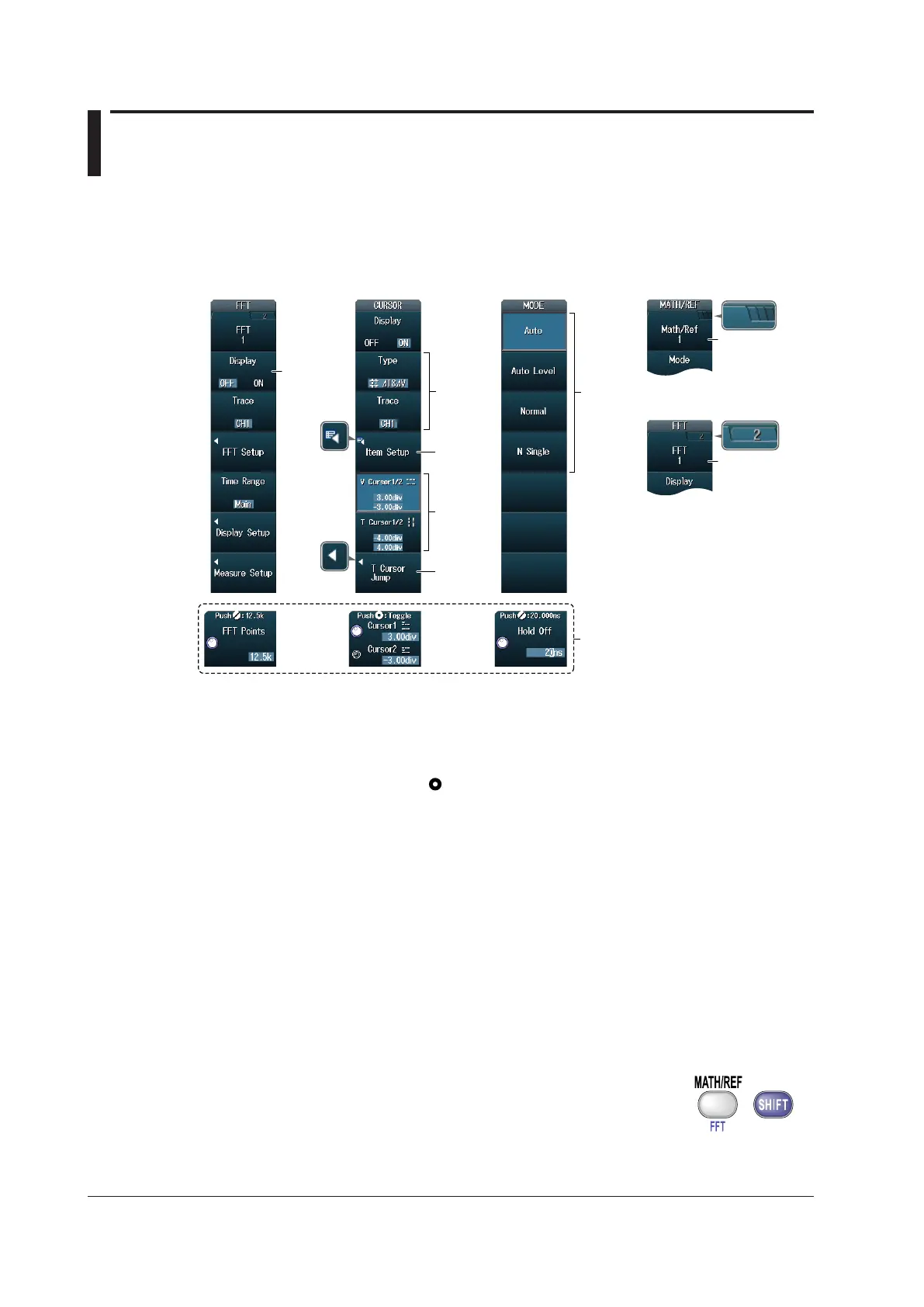

Key and Jog Shuttle Operations
Key Operations
How to Use Setup Menus That Appear When Keys Are Pressed
The operation after you press a key varies depending on the key that you press.
CURSOR menu
Jog shuttle setting menu
MODE menu
MATH/REF menu
FFT menu
FFT menu
B
D
C
A
E
F
G
G
A: The selection switches each time you press the soft key.
B: A selection menu appears when you press the soft key.
Press the soft key that corresponds to the appropriate setting.
C: A dialog box or the keyboard appears when you press the soft key.
Use the jog shuttle and the SET key (
) to configure the settings.
D: Pressing the soft key selects the item that you can control using the jog shuttle. The jog shuttle
setup menu, which appears at the bottom end of the setup menu, shows the selected item.
E: A related setup menu appears when you press the soft key.
F: Pressing a soft key selects the corresponding option in the soft key menu.
G: Selects which item to configure when configuring a feature that consists of multiple items that
operate with different settings, such as the Math1 to Math4 and FFT1 and FFT2 computation
features.
How to Display the Setup Menus That Are Written in Purple below
the Keys
In the explanations in this manual, “SHIFT+key name (written in purple)” is used to indicate the
following operation.
1.
Press the SHIFT key. The SHIFT key illuminates to indicate that the keys are shifted.
Now you can select the setup menus written in purple below the keys.
2.
Press the key that you want to display the setup menu of.
To Next Page
