9.3 Measuring Enhanced Parameters
This section explains the settings used when performing automated measurement of the waveform
parameters of two areas.
► “Enhanced Parameter Measurement (Enhanced)” in the Features Guide

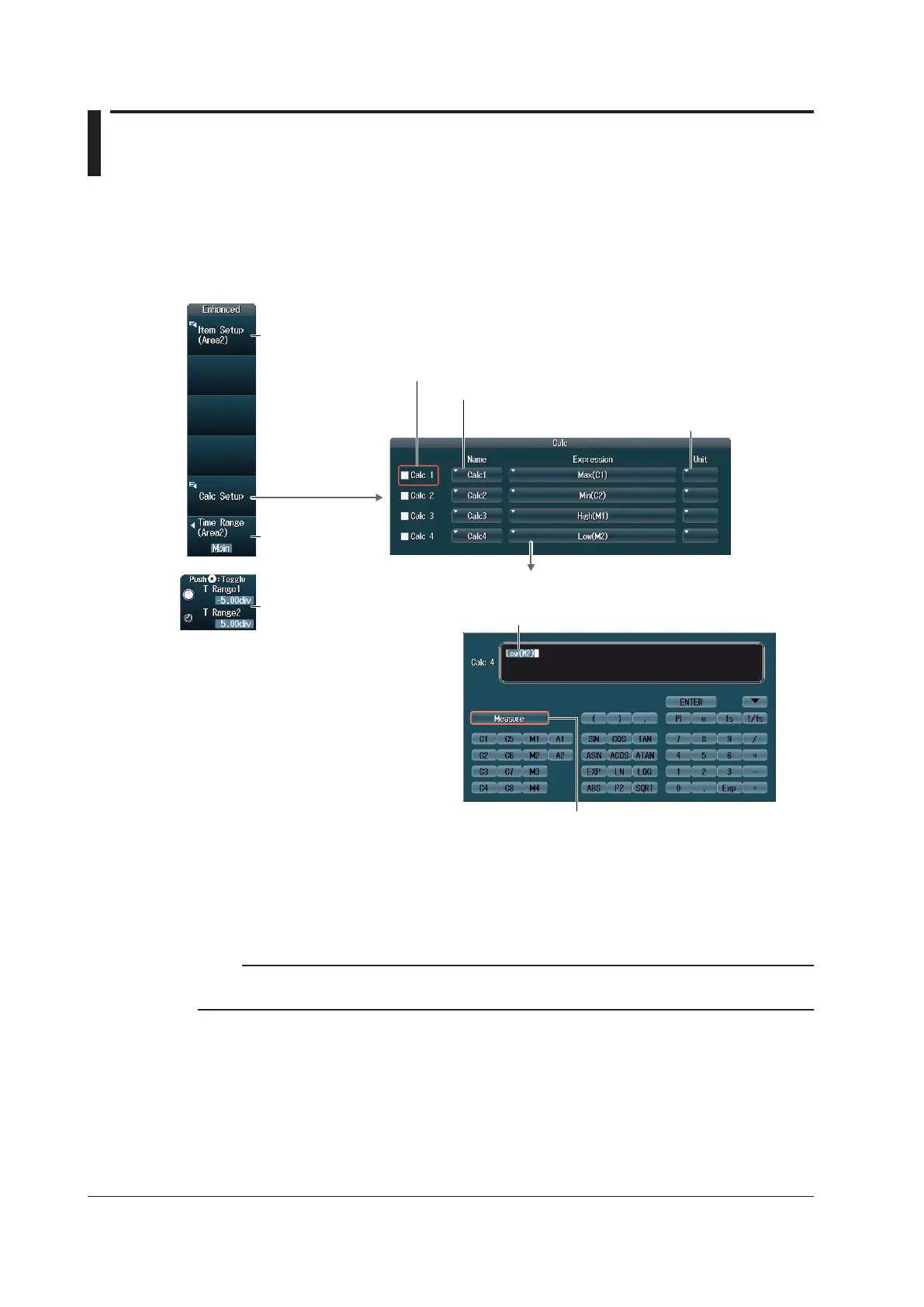

MEASURE Enhanced Menu
Press MEASURE and then the Enhanced soft key to display the following menu.
Set the expressions.
Set up a calculation that uses automated measurement values.
You can include the automated measurement
values of waveform parameters to expressions.
Define an expression by combining computation
source waveforms and operators.
Select the expressions to use.
Enter the name using up to 8 characters.
Enter the unit using
up to 4 characters.
Set the measurement
source window.
► section 9.1
Set Area2.
Configure the time range.
► section 9.1
Setting Area2 (Item Setup (Area2))
Press the Item Setup (Area2) soft key to display a screen for setting the Area2 source waveform and
measurement items. The screen is the same as the Item Setup screen shown in section 9.1.
Note
You cannot use the enhanced parameter measurement feature when the statistical processing mode is set to
Cycle.
