YOKOGAWA DLM4000 Series User Manual

12-61
IM DLM4038-02EN

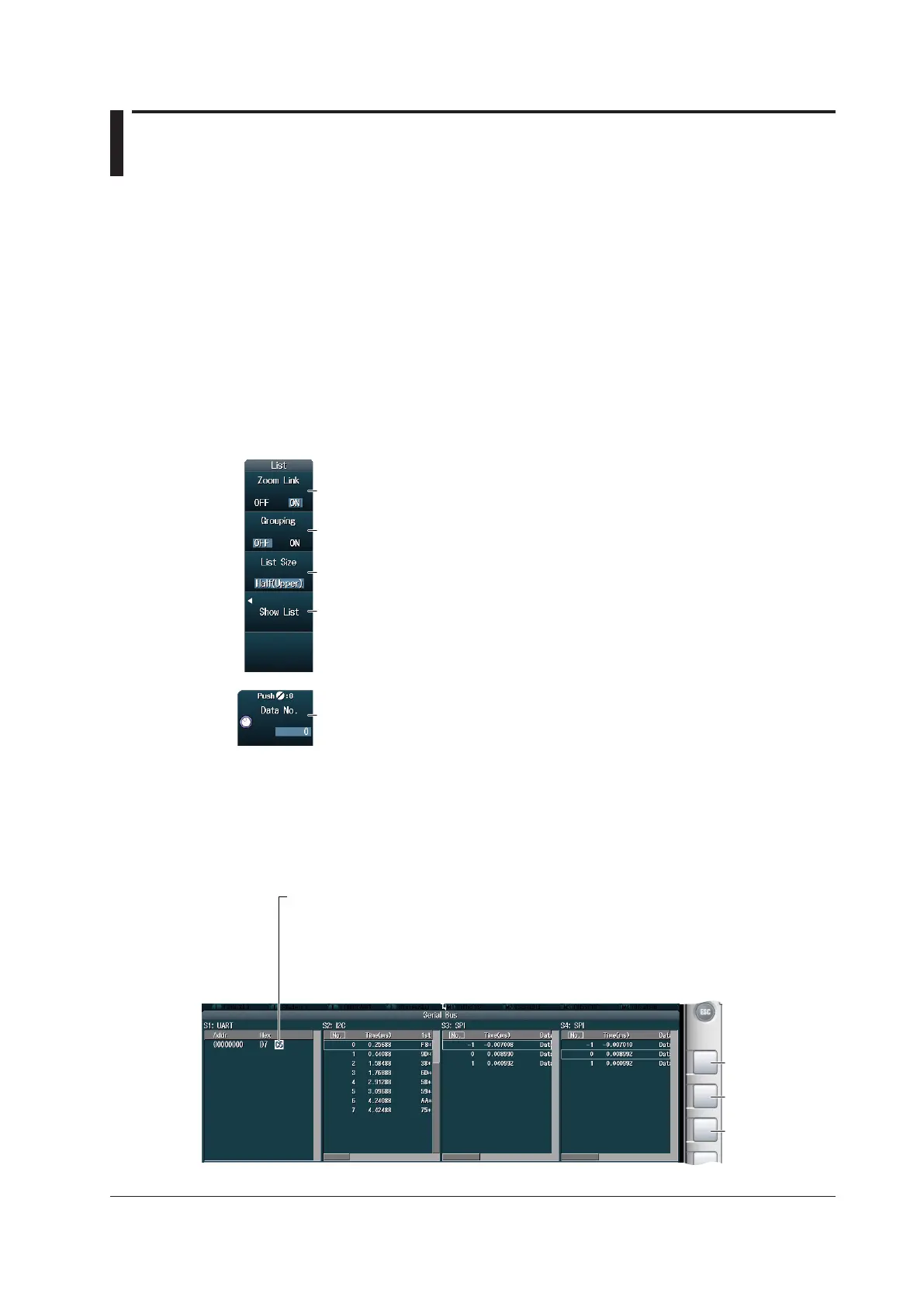

12.12 Displaying Multiple Lists
This section explains how to list the decoded results of multiple serial bus signals simultaneously.
► “Analyzing and Searching Serial Bus Signals” and
“List Setup”
in the Features Guide
Serial Bus Signal Setup
1.
Assign serial bus signals that you want to list simultaneously to Serial Bus1 to Serial Bus4.
 ►sections12.1to12.10
Setting the List Display (List)
2.
On the Serial Bus menu whose analysis and search displays (Display) are on, press the List
soft key.
The following menu appears.
Set the analysis number. ► sections 12.1 to 12.10
Set the list size and the display position (Full Screen, Half(Upper), Half(Lower)).
Lists the analysis results
Turns zoom linking on or off
Set the grouping
Appears only for UART signals ► section 12.8
Listing the Analysis Results (Show List)
3. Press the Show List soft key.
Serial buses whose analysis and search displays (Display) are on are displayed simultaneously.
Example: When List Size is set to Half(Upper), and the serial bus signal types are set as follows
Serial Bus1(S1): UART, Serial Bus2(S2): I2C, Serial Bus3(S3): SPI, Serial Bus4(S4): SPI
• Moves to the
left list.
• Moves to the
right list.
Expands the list
you want to use
or returns to the
original screen.
Change the list
you want to use.
Cursor
The cursor of the list that is being used is highlighted.
Only the frame appears for cursors of lists that are not being used.
• When zoom linking is on
The zoom position in the zoom window (Result Window) moves in sync with the
cursor on the list. If the signals of other lists are displayed in the same zoom
window, the cursors of those lists also move in sync.
