2.3 Triggering on an Edge Trigger
This section explains the following settings (which are used when triggering on trigger source edges).
• Trigger source
Source bit, trigger level, trigger slope, trigger coupling, HF rejection,
noise rejection
• Window comparator
• Probe attenuation
• Input range
► “Edge Trigger (EDGE),”
“Trigger Source (Source),”
“Trigger Slope (Slope/Polarity),”
“Trigger Coupling (Coupling),”
“HF Rejection (HF Rejection),”
“Noise Rejection (Noise Rejection),”
“Window Comparator (Window),” and
“Trigger Level (Level)”
in the Features Guide

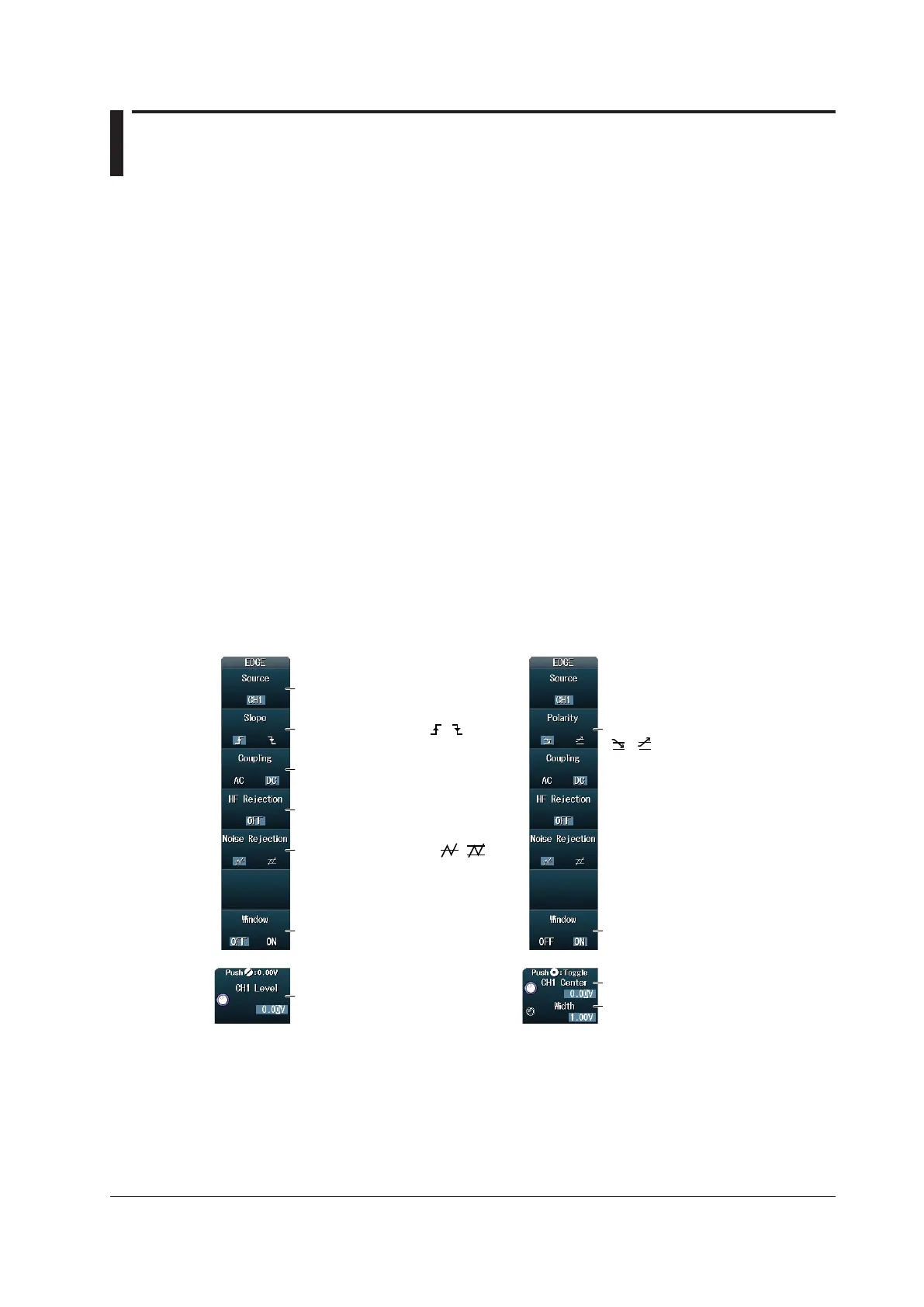

EDGE Menu
Press EDGE to open one of the menus shown below. The menu that opens varies depending on the
specified trigger source.
When the Trigger Source Is a Channel from CH1 to CH8
Set the trigger source (CH1 to CH8).
Set the trigger slope ( , ).
Set the trigger coupling (AC, DC).
Set the window comparator (OFF).
Set the trigger level.
Set the trigger slope to in or out
( , ).
Set the window comparator (ON).
Set the window center point.
Set the window width.
Set the HF rejection
(OFF, 20 MHz, 15 kHz).
Set the noise rejection ( , ).
When the Window Comparator Is Off When the Window Comparator Is On
