YOKOGAWA DLM4000 Series User Manual

2-4
IM DLM4038-02EN

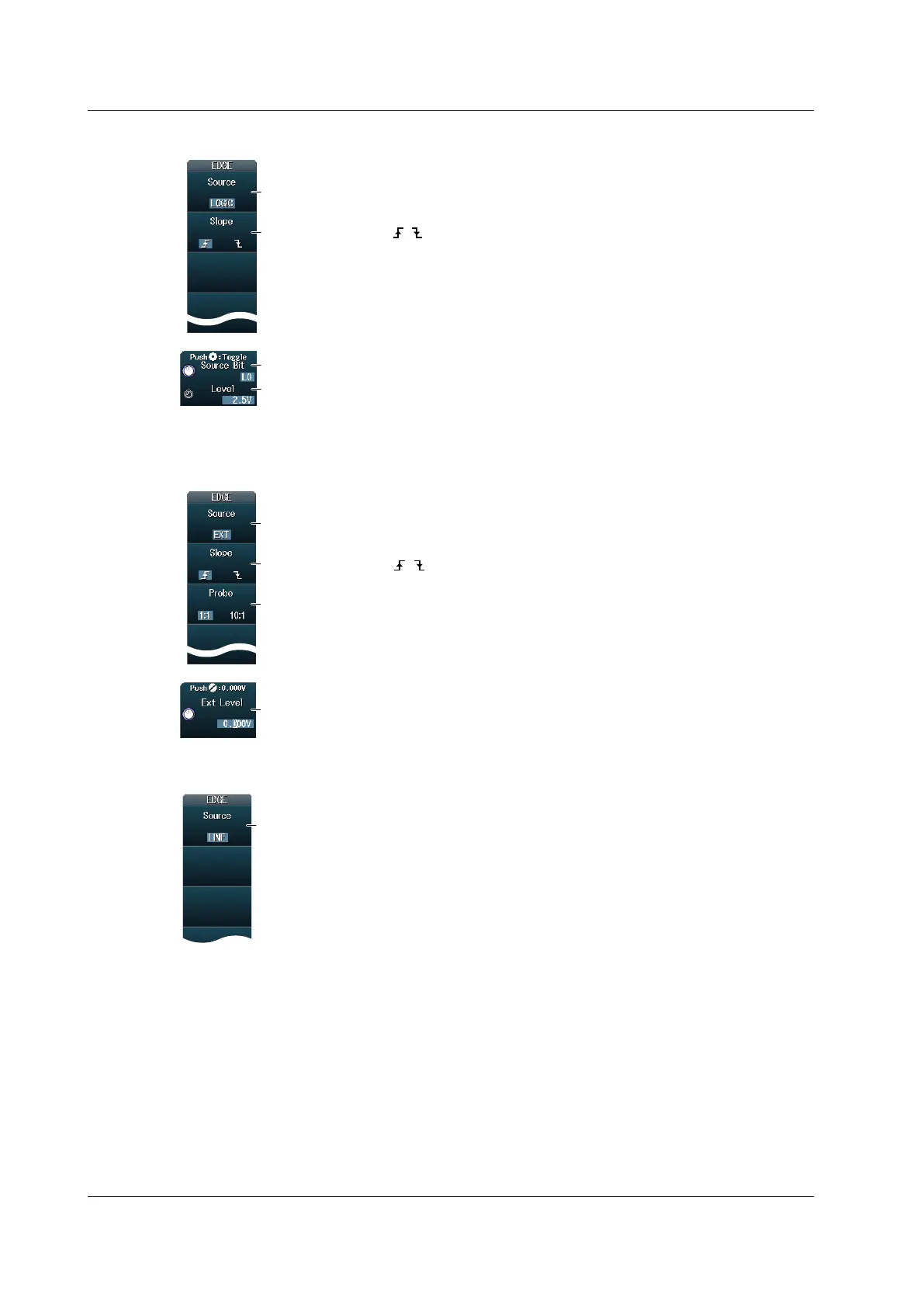

When the Trigger Source Is LOGIC
Set the trigger source (LOGIC).
Set the trigger slope ( , ).
Set the source bit (L0 to L7, A0 to A7, B0 to B7).
*
Set the source bit trigger level.
* A0 to A7 and B0 to B7 are available on models with the /L16 options.
When the Trigger Source Is EXT (External Trigger Signal)
Set the trigger source (EXT).
Set the trigger slope ( , ).
Set the probe attenuation (1:1, 10:1).
Set the trigger level.
When the Trigger Source Is LINE (the DLM4000 Power Source)
Set the trigger source (LINE).
2.3 Triggering on an Edge Trigger
